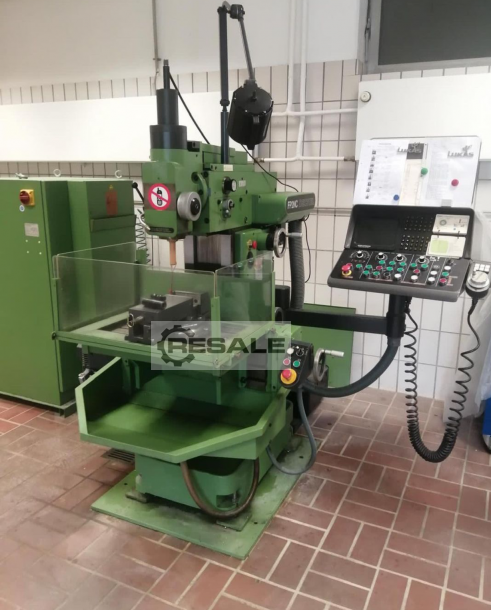

CNC Milling Machines DECKEL FP2

metal working machines / milling machines / CNC Milling Machines

Manufacturer: DECKEL

Model:FP2

Type of machine: CNC Milling Machines

item-No.: 153772664

Quantity: 0

Date: 03.04.2023

Year of manufacture: 1987

Location: Land-de Germany

Price: 8,500 EUR

Your price suggestion:

Machine in stock:Yes

Seller-item-No.:#2027-032

Cover FP2
FP 2A SK40 / with dialog 11 path control
Control: CNC Dialog 11 - 3D Web Control
Speed: 40 - 4000 rpm
Feed rate: 2 - 3600 mm/min infinitely variable
Rapid speed: 4 m/min
Drive power: 1.6 / 2.0 kW 1400/2800 rpm
Quill: Extendable quill vertical 80 mm SK40 with
Clamping system DIN 2080
Travel: X/Y/Z: 300/300/400 mm
Rotary table: 3 axis Universal table 600 x 330 mm max load 250 kg
Equipment: Hydromechanical clamping system
SK40 with suit bolt DIN 2080.
Vertical & Horizontal spindle ,
Milling head manually swivel+/- 90 °
Machine light
Programming: Dialog-guided programming with cycles.
E-handwheel.
