LIDKÖPING's centerless grinding machine offers plunge or continuous grinding. The machine was set up for plunge grinding. The control system and electrics meet the automotive standard (2003) The machine has been dismantled and is in storage in southern Germany.
Key data: 125 mm, 254 mm, 254 mm
Grinding diameter - min. 0.5 mm Grinding diameter max. 125 mm Grinding wheel diameter max. 406 mm Grinding wheel width max. 254 mm Regulating disc width 254 mm Speed drive spindle max. 1900 rpm Control disc speed 0 - 150 rpm Total power requirement 18 kW Machine weight approx. 5.5 t Space requirement approx. 2.9 x 1.1 x 1.5 m TECHNICAL DESCRIPTION with automatic insertion device Coolant reservoir Grinding wheel

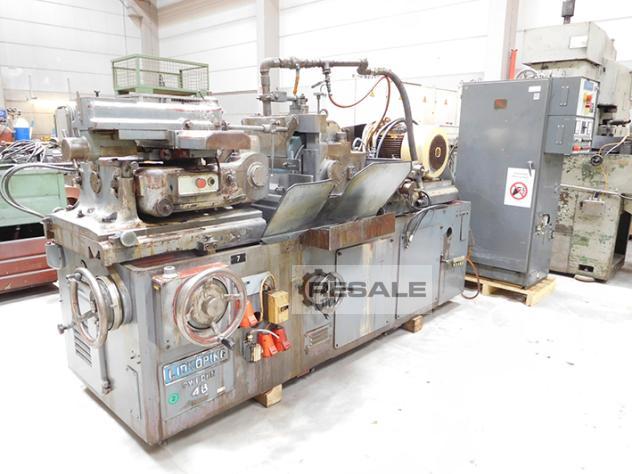

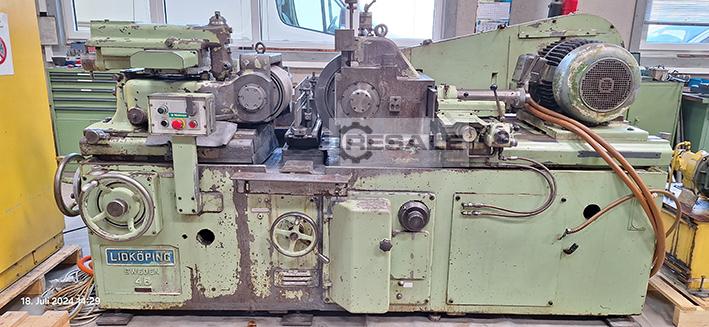

LIDKÖPNG CL 4B Centerless Grinding Machine Specifications Working range workpiece diameter: 1 - 150 mm Longest workpiece length in the grooving process 300 mm Abrasives: Largest outer diameter 508 mm Smallest outer diameter 365 mm Normal width of the abrasive media 254 mm Largest abrasive media width 305 mm Control body: Largest outer diameter 330 mm Smallest outer diameter 255 mm Normal width of the control body 254 mm Largest regulating body width 305 mm Normal speed (infinitely adjustable) 0-115 rpm Power: Main motor, maximum 37 KW Total requirement approx. 42 kW Weight approx. 7 t Space requirement: approx. 4 x 4.2 m The machine can be viewed by appointment in our factory in Krefeld. – Errors, changes and prior sale excepted –
LIDKÖPNG CL 4B Centerless Grinding Machine Specifications Working range workpiece diameter: 1 - 150 mm Longest workpiece length in the grooving process 300 mm Abrasives: Largest outer diameter 508 mm Smallest outer diameter 365 mm Normal width of the abrasive media 254 mm Largest abrasive media width 305 mm Control body: Largest outer diameter 330 mm Smallest outer diameter 255 mm Normal width of the control body 254 mm Largest regulating body width 305 mm Normal speed (infinitely adjustable) 0-115 rpm Power: Main motor, maximum 37 KW Total requirement approx. 42 kW Weight approx. 7 t Space requirement: approx. 4 x 4.2 m The machine can be viewed by appointment in our factory in Krefeld. – Errors, changes and prior sale excepted –
Key data: 125 mm, 406 mm
This machine is equipped with an automatic infeed of parts as well as an automatic removal by means of a conveyor belt.
