used
Key data: 600 kN, 38 mm
Dr. BOY 60 E Stock No.: 503582 Manufacturer: BOY Type: 60 E Control: Procan ALPHA Year of Make: 2013 Hours: 15528 h Technical data closing page Clamping force: 600 kN Wooden dimensions h x v: 360 x 335 mm Panel size h x v: 540 x 560 mm Min. installation height: 250 mm Plate spacing max.: 650 mm Opening travel: 400 mm Ejector stroke: 80 mm Ejector force: 20 kN Tool weight: 400 kg Technical Data Spray Side Screw diameter: 38 mm Capacity: 141.8 cc Spray pressure: 1519 bar Screw length: 17 l/d Screw stroke: 125 mm Screw speed: 325 min Worm torque: 280 N Outdoor injection flow: 170 g/s hp Nozzle travel: 218 mm Dimensions & Weight Machine dimensions LxWxH: 2.97m x 1.095m x 2.01m Total Weight: 2780KG Equipment Screen text German Levelling elements EUROMAP 67 Handling Interface
used
Key data: 900 kN, 42 mm
Dr. BOY 90 E Stock No.: 503581 Manufacturer: BOY Type: 90 E Control: Procan ALPHA Year of Make: 2013 Hours: 32768 h Technical data closing page Clamping force: 900 kN Wooden dimensions h x v: 430 x 360 mm Panel size h x v: 635 x 610 mm Min. installation height: 250 mm Plate spacing max.: 725 mm Opening travel: 475 mm Ejector stroke: 130 mm Ejector force: 20 kN Centering of movable plate D: 110 mm Centering fixed plate D: 110 mm Tool weight: 800 kg Technical Data Spray Side Screw diameter: 42 mm Capacity: 157.8 cc Spray pressure: 2347 bar Screw length: 20 l/d Screw stroke: 155 mm Screw speed: 280 min Worm torque: 735 N Plasticizing current: 136 g/s PS Number of heating zones: 4 Nozzle travel: 250 mm Dimensions & Weight Machine dimensions LxWxH: 4.37m x 1.21m x 2.2m Total Weight: 3730KG Equipment Screen text German Levelling elements EUROMAP 67 ...
Key data: 550 kN, 38 mm
Stock No.: 503447 Manufacturer: BOY Type: Boy 55 A Control: Procan Year of Make: 2008 Hours: 59283 h We are pleased to offer you a used Dr. Boy 55 A injection molding machine that has been carefully inspected and repaired to provide you with the highest performance and reliability. Features of the machine: Model: Dr. Boy 55 A Clamping force: 550 kN / 55 tons Injection volume: 136 cc Year of Make: 2008 Condition: Used, tested and professionally repaired Why choose the Dr. Boy 55 A? The Dr. Boy 55 A is characterized by its reliability, precision and efficiency. Ideal for small to medium-sized injection molding projects, it offers a compact design and ease of use. Our Service: The Dr. Boy Service experts have thoroughly inspected and repaired this machine to ensure that it is in optimal operational readiness. You can rely on the quality and performance of this Dr. Boy ...
Key data: 550 kN, 38 mm
Dr. Boy 55 A Stock No.: 503448 Manufacturer: BOY Type: 55 A Control: Procan Year of Make: 2008 Hours: 53460 h Welcome to our offer for a used Dr. Boy 55 A injection molding machine. This high-quality machine is ideal for precision injection molding in a wide range of applications. Known for its reliability, efficiency and precision, the Dr. Boy 55 A is particularly well suited for small to medium-sized injection moulding projects. Features of the machine: Model: Dr. BOY 55 A Clamping force: 550 kN / 55 ton Injection volume: 38 mm Year of Make: 2008 Condition: Used and tested, in good working condition Why choose the Dr. BOY 55 A? The Dr. BOY 55 A injection molding machine offers a compact design, easy operation and high productivity. It is particularly suitable for prototyping, small batch production and the manufacture of precision parts. With its robust design and ...
Key data: 550 kN, 38 mm
Dr. Boy 55 E Stock No.: 503451 Manufacturer: BOY Type: 55 E Control: Procan Year of Make: 2013 Operating hours: 43000 h Technical data closing page Clamping force: 550 kN Wooden dimensions h x v: 370 x 340 mm Plate size h x v: 360 x 335 mm Min. installation height: 250 mm Plate spacing max.: 650 mm Opening travel: 400 mm Ejector stroke: 80 mm Ejector force: 20 kN Centering of movable plate D: 110 mm Centering fixed plate D: 110 mm Technical Data Spray Side Screw diameter: 38 mm Capacity: 136.1 cc Spray pressure: 1508 bar Screw length: 17 l/d Screw stroke: 120 mm Screw speed: 450 min Worm torque: 490 N Plasticizing current: 128 g/s PS Number of heating zones: 3 Nozzle travel: 210 mm Dimensions & Weight Machine dimensions LxWxH: 3.665m x 1.13m x 2.04m Total Weight: 2780KG Equipment Screen text German Core pull hydraulic 1x Machine with water batter ...
Key data: 550 kN, 38 mm
Dr. Boy 55 E Stock No.: 503450 Manufacturer: BOY Type: 55 E Control: Procan Year of Make: 2013 Operating hours: 42000 h Technical data closing page Clamping force: 550 kN Wooden dimensions h x v: 370 x 340 mm Plate size h x v: 360 x 335 mm Min. installation height: 250 mm Plate spacing max.: 650 mm Opening travel: 400 mm Ejector stroke: 80 mm Ejector force: 30 kN Centering of movable plate D: 110 mm Centering fixed plate D: 110 mm Technical Data Spray Side Screw diameter: 38 mm Capacity: 136.1 cc Spray pressure: 1508 bar Screw length: 17 l/d Screw stroke: 120 mm Screw speed: 450 min Worm torque: 490 N Plasticizing current: 128 g/s PS Number of heating zones: 3 Nozzle travel: 210 mm Dimensions & Weight Machine dimensions LxWxH: 3.665m x 1.13m x 2.04m Total Weight: 2780KG Equipment Screen text German Core pull hydraulic 1x Machine with water ba ...

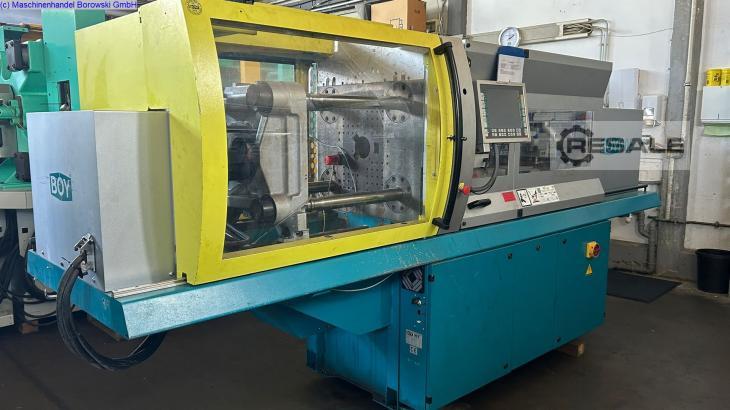

Key data: 900 kN, 42 mm
BOY 90 E Stock No.: 503452 Manufacturer: BOY Type: Boy 90 E Control: Procan ALPHA Year of Make: 2012 Hours: 49130 h Technical data closing page Clamping force: 900 kN Wooden dimensions h x v: 430 x 360 mm Panel size h x v: 635 x 610 mm Min. installation height: 250 mm Plate spacing max.: 725 mm Opening travel: 475 mm Ejector stroke: 130 mm Ejector force: 20 kN Centering of movable plate D: 110 mm Centering fixed plate D: 110 mm Tool weight: 800 kg Technical Data Spray Side Screw diameter: 42 mm Capacity: 157.8 cc Spray pressure: 2347 bar Screw length: 20 l/d Screw stroke: 155 mm Screw speed: 280 min Worm torque: 735 N Plasticizing current: 136 g/s PS Number of heating zones: 4 Nozzle travel: 250 mm Dimensions & Weight Machine dimensions LxWxH: 4.37m x 1.21m x 2.2m Total Weight: 3730KG Equipment Screen text German Core pull hydraulic 1x Machi ...
Key data: 273 mm, 49 , 28
Used injection molding machine Dr. Boy 30 M + Screen controlled machine mipronic + Sold in functional tested or partially overhauled condition. Plasticizing unit 24 mm thermoplastic open nozzle Water distributor 4-fold Decompression Oil level and temperature monitoring Material Funnel Machine feet Hydraulic ejector 80 mm with stroke limitation Handler Device Interface Clear width between homes: 255 mm (height) x 255 mm (width) 400V / 50 Hz Operating instructions More Dr. Boy injection molding machines from 220 KN to 80 KN in stock More Dr. Boy Injection Moulding Machine 30 M mipronic (Schleicher Control) in stock Plasticizing cylinder 18 mm, born in 1990 Sample photo Offer subject to change
Key data: 800 mm, 179 , 42
Used injection moulding machine Dr. Boy 50 M Procan from ongoing production Parts warranty available. Plasticizing unit 42 mm thermoplastic open nozzle Water distributor 6-fold Decompression Oil level and temperature monitoring Material Funnel Machine feet Hydraulic ejector 80 mm with stroke limitation Handler Device Interface Clear width between homes: 410 mm (width) x 358 mm (height) 400V / 50 Hz Operating instructions Suitable handling Vonnahme GmbH possible for an extra charge incl. assembly More Dr. Boy injection molding machines from 220 KN to 80 KN in stock Sample photo of refurbished machine Offer subject to change
Key data: 500 mm, 121 , 38
Used injection moulding machine Dr. Boy 50 M Procan from ongoing production Parts warranty available. Plasticizing unit 38 mm thermoplastic open nozzle Water distributor 6-fold Decompression Oil level and temperature monitoring Material Funnel Machine feet Hydraulic ejector 80 mm with stroke limitation Handler Device Interface Clear width between homes: 335 mm (width) x 305 mm (height) 400V / 50 Hz Operating instructions Suitable handling Vonnahme GmbH possible for an extra charge incl. assembly More Dr. Boy injection molding machines from 220 KN to 80 KN in stock Sample photo of refurbished machine Offer subject to change
Key data: 250 mm, 37 , 24
Used, refurbished injection moulding machine Dr. Boy 25 M Procan Parts warranty available. Plasticizing unit 24 mm thermoplastic open nozzle Water distributor 4-fold Decompression Oil level and temperature monitoring Material Funnel Machine feet Hydraulic ejector 80 mm with stroke limitation Handler Device Interface Clear width between homes: 254 mm (width) x 254 mm (height) 400V / 50 Hz Operating instructions Suitable handling Vonnahme GmbH possible for an extra charge incl. assembly More Dr. Boy injection molding machines from 220 KN to 80 KN in stock Sample photo of refurbished machine
Key data: 220 mm, 18 , 18
Used, refurbished injection moulding machine Dr. Boy 22 M Procan Parts warranty available. Plasticizing unit 18 mm thermoplastic open nozzle Water distributor 4-fold Decompression Oil level and temperature monitoring Material Funnel Machine feet Hydraulic ejector 80 mm with stroke limitation Handler Device Interface Blow-out device 1-fold Clear width between homens: 254 mm (width) 400V / 50 Hz Operating instructions Suitable handling Vonnahme GmbH possible for an extra charge incl. assembly More Dr. Boy injection molding machines from 220 KN to 80 KN in stock Sample photo of refurbished machine
Key data: 220 mm, 44 , 28
Used injection moulding machine Dr. Boy 22 M Procan from ongoing production It can be sold in the condition of functional tested or partially overhauled or refurbished. Parts warranty available. Plasticizing unit 24 mm thermoplastic open nozzle Water distributor 4-fold Decompression Oil level and temperature monitoring Material Funnel Machine feet Hydraulic ejector 80 mm with stroke limitation Handler Device Interface Blow-out device 1-fold Clear width between homens: 254 mm (width) 400V / 50 Hz Operating instructions Suitable handling Vonnahme GmbH possible for an extra charge incl. assembly More Dr. Boy injection molding machines from 220 KN to 80 KN in stock Example photo of identical machine
Key data: 300 kN, 50 g/PS, 28 mm
Used injection moulding machine Dr. Boy 30 M Procan from ongoing production It can be sold in the condition of functional tested or partially overhauled or refurbished. Parts warranty available. Plasticizing unit 28 mm thermoplastic open nozzle Water distributor 4-fold Decompression Oil level and temperature monitoring Material Funnel Machine feet Hydraulic ejector 80 mm with stroke limitation Handler Device Interface Clear width between homes: 280 mm (height) x 254 mm (width) 400V / 50 Hz Operating instructions Suitable handling Vonnahme GmbH and PIOVAN vacuum cleaner possible for an extra charge incl. installation More Dr. Boy injection molding machines from 220 KN to 80 KN in stock Photos are sample images
Clamping unit Clamping force [kN] 550 Dimensions of mounting plates (hxv) [mm] 530 x 500 Clearance between columns (hxv) [mm] 360 x 355 Min./ max. mould height [mm] min 150 Maximum opening width [mm] 500 Injection Unit Screw diameter [mm] 32 Injection volume [cm3] 75,5 Injection weight [g] 69,54 Injection pressure [bar] 1030 Dimensions & Weight Net weight with control cabinet [t] 2,25 Dimensions (L x W x H) [m] 3.25 x 1.09 x 2.04
Key data: 550 kN, 32 mm
warehouse no.: 503271 manufacturer: Dr. Boy type: Boy 55 A controller: Procan year of construction: 2003 clamping force: 550 kN distance between tie bars h:: 360 mm distance between tie bars v:: 335 mm size of mould plates h: 530 mm size of mould plates v: 500 mm min. mould height: 250 mm max. open daylight: 500 mm opening stroke: 350 mm screw diameter: 32 mm swept volume: 76.5 ccm injection pressure: 1030 bar measures of machine lxbxh: 3.25m x 1.09m x 2.04m total weight: 2250KG equipment included screen text german core pulling hydraulically 1x Anti vibration mounts
Key data: 350 kN, 28 mm
warehouse no.: 503268 manufacturer: Dr. Boy type: Boy 35A controller: Procan year of construction: 2008 operation hours: 56508 clamping force: 350 kN distance between tie-bars h x v: 280 x 254 mm size of mould plates h x v: 425 x 400 mm min. mould height: 200 mm max. open daylight: 500 mm opening stroke: 300 mm screw diameter: 28 mm swept volume: 58.5 ccm injection pressure: 1577 bar equipment included: screen text german core pulling hydraulically 1x machine without material hopper Anti vibration mounts electric interface for handling units according to Euromap 12 measures of machine l x w x h: 2.39m x 0.88m x 1.918m total weight: 1600KG
Injection moulding machines Dr. Boy Boy 55 A Stock No.: 503233 Manufacturer: Dr. Boy Type: Boy 55 A Control: Procan Year of construction: 2003 Operating hours: 64000 h Technical data closing page Clamping force: 550 kN Holmass v: 360 mm Holmass h: 335 mm Panel size h: 530 mm Panel size v: 500 mm Installation height min.: 250 mm plate pitch max.: 500 mm Opening distance: 350 mm Ejector stroke: 80 mm Ejector force: 42 kN Technical data spray side Screw diameter: 32 mm Displacement: 76.5 cc Spray pressure: 1030 bar Screw length: 16 l/d Screw stroke: 95 mm Screw speed: 250 min Screw torque: 240 N Number of heating zones: 5 Nozzle travel: 180 mm Dimensions & Weight Machine dimensions LxWxH: 3.25m x 1.09m x 2.04m Total weight: 2250KG Equipment On-screen text german Core tension hydraulic 1x Levelling elements
A Boy injection molding machine is available. Clamping force: 100kN, tie bar distance (diagonal): 205mm, max. platen distance: 250mm, ejector stroke: 50mm, screw diameter: 14mm, stroke volume range: 1cm³/15.3cm³, machine dimensions X/Y/Z: approx. 1500mm/550mm/1400mm, weight: approx. 500kg, control: Procan ALPHA. Documentation available. On-site inspection is possible.
