Automatic band saw Manufacturer: MEBA Type: MEBAeco 335 GA Year of Make: 2010 Working height: 750 mm Cutting range at 90 degrees round: 335 mm Cutting area at 90 degrees flat: 500 x 335 mm Cutting range at 45 degrees right round: 330 mm Cutting area at 45 degrees right flat: 320 x 335 mm Cutting range at 30 degrees right round: 200 mm Cutting area at 30 degrees right flat: 200 x 335 mm Saw blade dimension: 4400 x 34 x 1.1 mm Cutting speed: 15-150 m/min Total power requirement: 4.5 kW Machine weight: approx. 1550 kg
Key data: 335 mm
Meba ECO 335 DGA - Automatic band saw - Material feed up to 600 mm - Year of construction: 2002 Specifications - Cutting range 90° round/flat: 335 / 500x335 mm - Mitre right 45° round/flat: 330 mm / 320x335 mm - Mitre right 30° round/flat: 200 mm / 200x335 mm - Clamping range bundle tension width/height: 0-500 mm / 15-335 mm - Single/Multiple Material Insertion: 0-600 mm / 0-9999 mm - Leftover piece length manual/automatic: approx. 70 mm / approx. 110 mm - Cutting speed: 15 - 150 m/min (AC drive) - Cutting pressure: infinitely hydraulic - Lowering speed: 0 - 300 mm/min (infinitely variable) - Saw blade dimensions: 4400 x 34 x 1.1 mm - Saw blade tension: with torque wrench - Max. contact weight: max. 250 kg/m - Working height: 750 mm - Noise emission: 74 dB(A) Connection data: - Power supply: 3x 400 V / N / PE / 50 Hz - Compressed air: 6 - 8 bar, min. 50 l/min ...
Offer 24145 Hydr.- two column-guided DG.- mitre band saw machine Specifications: - Automatic workflow cutting process, hydr. Lifting / lowering - of the saw frame, mitre adjustment with hydr. Clamping - Automatic material replenishment machine, mot. Mitre adjustment - Saw blade dimensions 4400 x 34 x 1.1 mm - Cutting speed infinitely adjustable 15 - 150 m/min - Cutting pressure regulation infinitely variable 10 - 15 bar - Lowering speed 0 - 300 m/min - Cutting range 30° - 90° - at 90° around 335 mm - Square flat 500 x 335 mm - at 45° right about 330 mm - Square standing 320 x 335 mm - at 30° right square standing 170 x 335 mm - at 45° left about 305 mm - Square standing 305 x 335 mm - Automatic material replenishment machine 5 - 2300 mm - Roller conveyors 2 x 4000 mm - Roller conveyors 2 x 1000 mm - Drive 400 V / 6.5 kW - Space requi ...
Inv. Num. : 7367 Type: 335 GA Producer: MEBA Created: 2012 Parameters: Minimum belt feed speed: 15 m/min Maximum belt feed speed: 150 m/min Saw blade dimensions: 4400 x 34 x 1.1 mm Cutting area: 335 mm Length: 5350 mm Width: 2300 mm Height: 2000 mm Weight: 2020 kg
Hello here we offer you a used semi-automatic metal band saw / band saw from MEBA Type : 230 GA-H Year of manufacture : ca 2007 Good condition, The machine was in a training workshop. The sale of this machine is only made to tradesmen or entrepreneurs. A visit is possible. Technical data are copied from the manufacturer, so without guarantee of 100% accuracy Automatic band saw Metal band saw Meba 230 GA-H with mitre cut. Automatic band saw Meba 230GA-NC Technical data: Manufacturer: Meba -Type:230GA-H -BJ. Approx. 2006-2007 (estimated) -with control (automatic) -with coolant pump -mitre cut possible -weight approx. 400kg -2 speed levels -high current -cutting range 230mm (see photo)

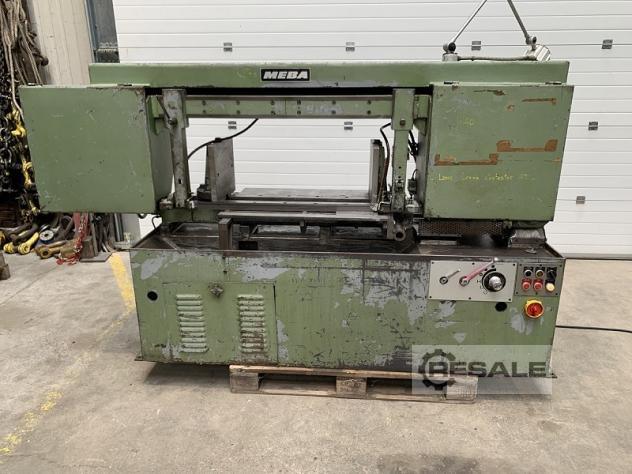

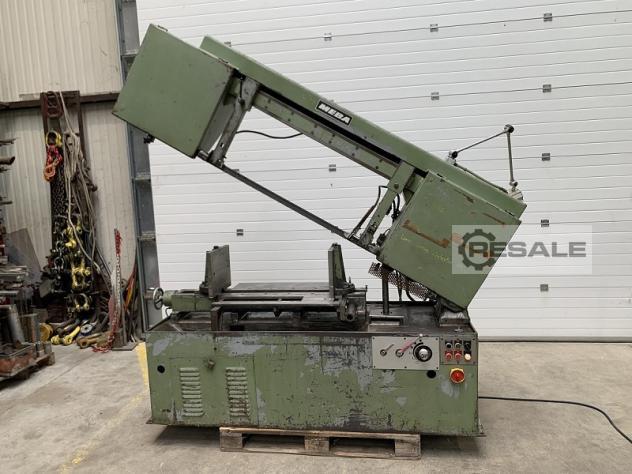

Band Saw MEBA Blades dimensions: L 4270 mm x H 41 mm x Thickness 1,5 mm Maxi square cutting capacity: Ø 440 mm Flat cutting capacity: 700 x 300 mm Jaws width: 380 mm Jaws height: 300 mm Removable jaws at +/- 45° Auto blade descent with hydraulic advance Blade speed adjustment: mechanical variator Delivered with 2 feed tables Lubricant pump Voltage: 380 V Length: 2700 mm Width: 1300 mm Height in closed position: 1500 mm Weight: approx 1,2 T
Band saw fully automatic Manufacturer MEBA Type 335A Year of construction 2004 .max. Round 335mm Machine is in a used good, 100% functional condition
- Cutting range 90° round: 400 mm - Cutting range 90° flat: 500 X 400 mm - Cutting speed: up to 150 m/min - Saw blade dimensions: 6220 X 41 X 1.3 mm - Chip conveyors - Operating hours: 4500 h - Total power: 8.0 kW - Machine weight: 1950 kg - Space requirement (W x D x H): 1.7 m x 3.1 m x 2.2 m m Details well-maintained machine, without roller conveyors Accessories 2 new saw blades, documentation
Band saw with program preselection for saw length and quantities Manufacturer Meba Built in 2001 Type 407 Feeding roller conveyor Laxative roller conveyor
Execution semiautomatic 90° diameter: 600 800 x 600 mm Engine: 14,5 kW Blade: 9000 x 67 x 1, 6 mm Min. diameter: 10 mm Working height: 630 mm Weight: 4.3 to.
dimensions of saw-band: 2720x27x0,9 mm capacity 90 degrees: round: 230 mm capacity 90 degrees: flat: 300x150 mm capacity 45 degrees: round: 180 mm capacity 60 degrees: flat: 200x180 mm : 110 mm : 120x80 mm weight of the machine ca.: 250 kg dimensions of the machine ca.: 1500x900x1250 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
This MEBA MEBAmat 434 Metal Band Saw was manufactured in 2019. It features a band saw drive power of 7.5 kW and a cutting speed of up to 150 m/min. The machine can handle round material up to Ã434 mm and square material up to 434 Ã 434 mm. Weighing approximately 4000 kg, its designed for robust performance with a hydraulic clamping system. If you are looking to get high quality cutting capabilities consider the MEBA MEBAmat 434 machine we have for sale. Contact us for more information.
cutting diameter: 320 mm saw band length: 3800 x 32 x 1,1 mm table height: mm capacity 90 degrees: round: 320 mm capacity 90 degrees: flat: 450 x 220 mm cutting speed: 18 - 115 m/min total power requirement: 1,5 kW weight of the machine ca.: 0,95 t dimensions of the machine ca.: 1,8 x 1,6 x 1,4 m Semi-automatic mitre bandsaw - Mitre max. 60° - Micro-spraying device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
cutting diameter: 325 mm dimensions of saw-band: 3800 x 34 x 1,1 mm cutting width: mm cutting speed: 16 - 87 m/min : 325 mm stroke back stop: 320 mm cross-slide: total power requirement: 1,8 kW weight of the machine ca.: 0,4 t dimensions of the machine ca.: 1,6 x 0,8 x 1,2 m g The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
cutting diameter: 335 mm dimensions of saw-band: 4400x34x1,1 mm table height: 750 mm min. dia.: 5 mm capacity 90 degrees: round: 335 mm capacity 90 degrees: flat: 500x335 mm cutting speed: 15-150 m/min clamping range bunching voltage: 0-500 / 15-335 Breite / Höhe : 0-600 / 0-6000 Einf. / Mehrf. weight of the machine ca.: 1600 kg dimensions of the machine ca.: 200x2200x1900 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
cutting diameter: 335 mm dimensions of saw-band: 4400x34x1,1 mm table height: 750 mm min. dia.: 5 mm capacity 90 degrees: round: 335 mm capacity 90 degrees: flat: 500x335 mm cutting speed: 15-150 m/min clamping range bunching voltage: 0-500 / 15-335 Breite / Höhe : 0-600 / 0-6000 Einf. / Mehrf. weight of the machine ca.: 1600 kg dimensions of the machine ca.: 2230x2350x1900 mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
capacity 90 degrees: round: 410 mm capacity 90 degrees: flat: 620x410 mm rest piece length man./autom.: 30 /160 mm work height max.: 750 mm sawband speed: 15-150 m/mm dimensions of saw-band: 5800x41x1,3 mm total power requirement: 9,0 kW weight of the machine ca.: 3210 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
cutting diameter: 420 mm saw band length: 0 mm cutting width: 0 mm total power requirement: kW weight of the machine ca.: 1 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
