accessories for machine tools used for sale

NC Branch Hofmann RWNC 160 Tip height: 160 mm With tailstock

weight of the machine ca.:340 kgdimensions of the machine ca.:2470 x 700 x 1300 mm

length in total:3000 mmweight of the machine ca.:600 kgdimensions of the machine ca.:5150 x 900 x 1250 mm

TOOL PRESETTER DMG MICROSET UNO 20/40 Year of Make: 2015 Travel Z: 400 mm Travel X : 50 - 200 mm Measuring range: 400 mm Max. tool weight: 200 kg EXISTING TOOL HOLDERS: SK 50/REF BRAND SK50/SK40 SK 50/HSK 63 SK 50/VDI 30

Key data: 1800 mm, 400 mm, 200

Article number: 27-02-006 Manufacturer: Knoll Very good general condition Machine workshop tested Delivery time: Immediate prior sale reserved Year of construction: approx. 1994 L x W x H: approx. 2300x800x1500mm Weight: approx. 500kg Specifications: Type: Hinge Belt Conveyor Dimensions of the slide-in: Length: approx. 1800mm Width: approx. 400mm Height: approx. 200mm Accessories  Grundfos coolant pump  Maintenance hatches  Coolant tank Other accessories on request Price and other technical data on request

Article number: 27-06-003 Manufacturer: Electric Feed Guard Mint condition Shipping time: All rights reserved. Year of construction: NEW L x W x H: approx. 300x300x300mm Weight: approx. 4kg Suitable for: Weiler Commodor; Condor & Intern Max. turning diameter: approx. 500mm Coverage area: approx. 200mm Accessories  Mounting arm  Limit switch with electrical connection cable Other accessories on request Price and other technical data on request

Article number: 27-06-005 Manufacturer: Trichter Weiler Mint condition Shipping time: All rights reserved. Year of construction: NEW L x W x H: ca.220x200x145mm Weight: approx. 1kg Suitable for: Hamlet Commodor Accessories  Mounting holes  Oil wiper plate Other accessories on request Price and other technical data on request

Article number: 27-06-004 Manufacturer: Weiler Mint condition Shipping time: All rights reserved. Year of construction: NEW L x W x H: approx. 100x50x50mm Weight: approx. 1kg

Article number: 27-06-001 Manufacturer: Spänewagen Good general condition Fully functional Shipping time: All rights reserved. Year of construction: ca.1985 L x W x H: approx. 1200x600x1000m Weight: approx. 80kg Length: approx. 1100mm Width: approx. 600mm Height: approx. 500mm Accessories  Mobile on castors  Tilting mechanism for emptying the chips

Article number: 27-06-002 Manufacturer: Spänewagen Good general condition Fully functional Shipping time: All rights reserved. Year of construction: ca.1985 L x W x H: ca.1200x650x1000mm Weight: approx. 80kg Interior: Length: approx. 1100mm Width: approx. 620mm Height: approx. 500mm Accessories  Mobile on castors  Tilting mechanism for emptying the chips Other accessories on request Price and other technical data on request

Dc motor Article number: 27-06-131 Manufacturer: BBC Very good general condition Engine ran without defects until dismantling of the machine suitable for Weisser Multivertor, among others Shipping time: All rights reserved. Year of construction: ca.1982 L x W x H: approx. 1200x800x1300mm Weight: approx. 400kg Speed: Power: 900rpm 15kW 1260rpm 20kW 36ßßrpm 20kW Power supply: 380 volts Other accessories on request Price and other technical data on request

Key data: 100 bar

Article number: 27-06-132 Manufacturer: Rexroth Very good general condition Hydraulics ran without defects until dismantling, suitable for Weisser Multivertor, among others Shipping time: All rights reserved. Year of construction: ca.1998 L x W x H: approx. 1200x600x1400 Weight: approx. 120kg Volume: approx. 100dm3 Max.pressure: approx. 100bar Tank capacity: approx. 200 liters Other accessories on request Price and other technical data on request

Article number: 27-04-155 Manufacturer: Kreuztisch Good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1980 L x W x H: approx. 800x500x500mm Weight: approx. 200kg Table clamping surface: approx. 500x200mm Travel: X-axis: approx. 350mm Y-axis: approx. 230mm Distance between T-slots: approx. 120mm Accessories  Mechanical clamps  Grid plate with locking bolts Other accessories on request

Article number: 27-06-063 Manufacturer: Chip Anne, Lid Mint condition Custom-fit seat and paint finish in RAL according to customer requirements Shipping time: All rights reserved. Year of construction: NEW L x W x H: approx. 1000x1000x200mm Weight: approx. 4kg suitable: FP2 & FP3 FP2 Active Digital FP3 Active Digital FP2 Infinitely variable FP3 Infinitely variable

Key data: 15 bar

Article number: 27-06-093 Manufacturer: Parker Very good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.2002 L x W x H: ca.700x800x1600mm Weight: approx. 300kg Max. pressure: approx. 15 bar Volume: approx. 90 dm3 Accessories  Mahle Industrial Filters

Key data: 500 mm, 500 mm

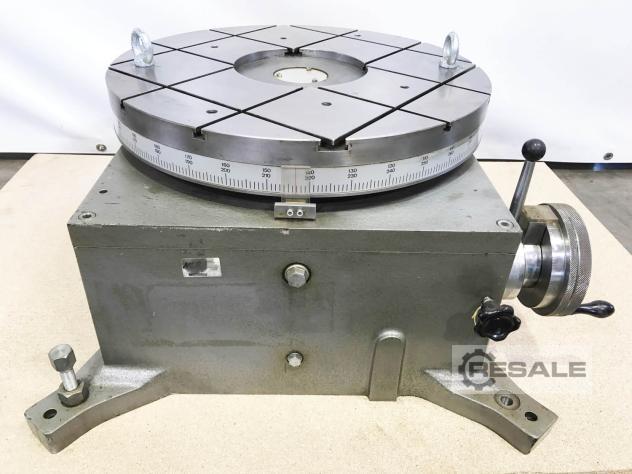

Article number: 27-04-001 Manufacturer: Test Fuchs Mint condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1980 L x W x H: approx. 600x700x500mm Weight: approx. 200kg Rotary table diameter: approx. Ø 500mm Max. rotation range: 360 degrees Accessories  Partial setup (manual via handwheel with scale)  Mechanical table clamping  Clamping T-slots

Key data: 3000 mm, 240 mm, 820

Article number: 27-02-148 Manufacturer: Chip conveyor Good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1980 L x W x H: approx. 3000x900x1300mm Weight: approx. 400kg Type: Hinged Belt Conveyor Dimensions insertion: Length: approx. 2000mm Width: approx. 370mm Height: approx. 220mm Band width: approx. 240mm Band length: approx. 2000mm Ejection height: approx. 820mm Accessories: Coolant tank Coolant pump Other accessories on request Price and other technical data on request

Key data: 1600 mm, 230 mm, 300

Article number: 27-02-136 Manufacturer: Leroy Somer Good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1988 L x W x H: ca.1600x550x600mm Weight: approx. 150kg Type: Scratch Tape Conveyor Dimensions insertion: Length: approx. 900mm Width: approx. 300mm Height: approx. 200mm Band width: approx. 230mm Band length: approx. 900mm Ejection height: approx. 300mm Other accessories on request Price and other technical data on request

Key data: 4200 mm, 200 mm, 700

Article number: 27-02-128 Manufacturer: Knoll Good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1985 L x W x H: approx. 4200x1300x1400mm Weight: approx. 400kg Type: Hinged Belt Conveyor Dimensions insertion: Length: approx. 2500mm Width: approx. 500mm Height: approx. 300mm Band width: approx. 200mm Band length: approx. 1600mm Ejection height: approx. 700mm Accessories: Coolant tank Other accessories on request Price and other technical data on request

Key data: 400 mm

Article number: 27-04-004 Manufacturer: Walter Very good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1990 L x W x H: approx. 600x600x400mm Weight: approx. 300kg Digital display: 1-axis digital display Heidenhain Encoder: Heidenhain Resolution: 0.001 degree Face plate diameter: approx. 400mm Clamping T-slots: 4 pieces of 14mm each Rod passage: approx. Ø 40mm Indexing: manual via handwheel Quick indexing: Electrically via shaft stump & e.g. cordless screwdriver Max.table load: Vertical: approx. 200kg Horizontal: approx. 500kg Accessories: Complete Instruction Manual Mechanical table clamping 1x ISO 40 tool holder Display Bracket Handwheel for indexing with extra-long shaft stump 2 pieces of eyebolts for lifting the table Other accessories on request Price and other technical data on request
