sheet metal working used for sale

Description with exact angle system cutting width 50cm

Description heavy automatic hydraulic plate shears / guillotine shears up to 50mm with cycle feed Working width approx. 155cm Thickness max. 50mm

Rok produkcji: 1998 Model: HÄMMERLE BM 200 - 4100 Numer katalogowy: 11803-37 Numer seryjny: 590 097 Siła nacisku: 2000 kN Długość robocza: 4100 mm Maks. Skok: 400 mm Zasięg: 250 mm Waga: 18 900 kg + Narzędzia

weight of the machine ca.:620 kgdimensions of the machine ca.:1000 x 920 x 1550 mm

Rok produkcji: 2007 Waga: 20,000 kg Maksymalna długość robocza: 2560 mm Maksymalna grubość blachy (stal miękka): 2.0 mm Maksymalna grubość blachy (stal nierdzewna): 1.5 mm Maksymalna grubość blachy (aluminium): 3.0 mm Dodatkowe wyposażenie: podajnik wykrojów, narzędzia

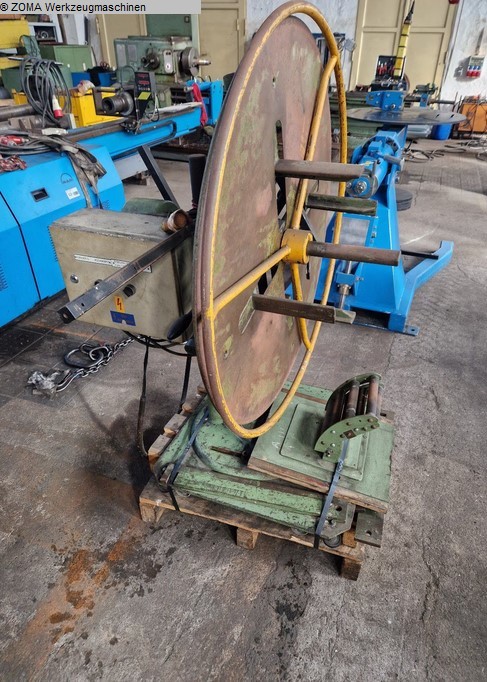

band width: 200 mmband speed: 20 m/min: 150 kg- Internal clamping range: 200- 550 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

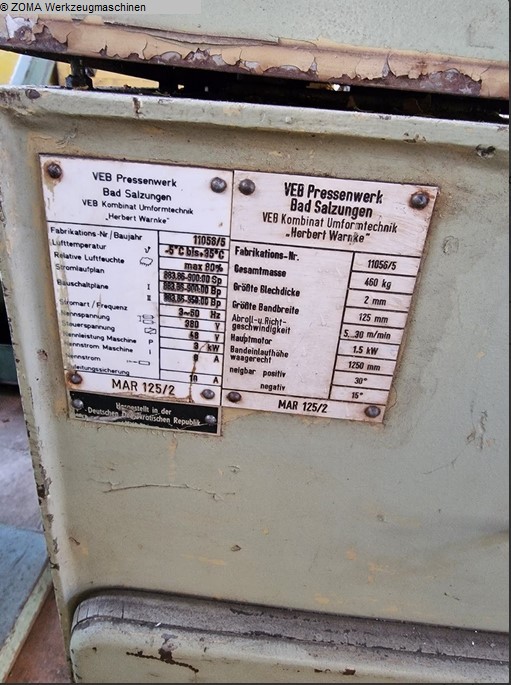

plate width: 125 mmplate thickness: 2 mmstraightening feed: 5-30 m/mintotal power requirement: 1,5 kWweight of the machine ca.: 460 kgdimensions of the machine ca.: m- Belt infeed height: 1,250 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Control Mitsubishi Max. cutting length ... 3200mm Max. sheet thickness ... 10mm Drive... Hydraulic Main engine power ... 15kW Machine weight ... 11000kg L x W x H ... 4050x2050x1790mm The machine is in good condition, possible to test under power.

Rok produkcji: 2024 Model No.: R1550 Nr seryjny: V00324 Max zapotrzebowanie: 12KW Napięcie znamionnowe: 220V/50HZ/1 PHASES Max prąd: 32A

Article number: 01-07-003 Manufacturer: BBM Good general condition Machine workshop tested Delivery time: Immediate prior sale reserved Year of construction: approx. 1990 L x W x H: approx. 3450x1800x2450mm Weight: approx. 12000kg Compressive force: approx. 125 tons Bending length: approx. 3050 Back gauge: manual Accessories  Segments  Matrice Other accessories on request Price and other technical data on request

Article number: 01-07-002 Manufacturer: Geka Good general condition Machine workshop tested Delivery time: Immediate prior sale reserved Year of construction: approx. 1992 L x W x H: approx. 1650x880x1750mm Weight: approx. 1500kg Specifications: Flat steel shears: approx. 200x20mm Profile steel shears: approx. 120x10mm Round: approx. 40mm Square: approx. 40mm Punching force: 500 KN Projection: approx. 260mm Accessories  Documentation  Footswitch  Miscellaneous tool see pictures Other accessories on request Price and other technical data on request

Hydraulic guillotine shears Hatebur TS312 Article number: 01-07-001 Manufacturer: Hatebur Good general condition Machine workshop tested Delivery time: Immediate prior sale reserved Year of construction: ca.1985 L x W x H: approx. 3800x2050x2250mm Weight: approx. 9000 kg Max.sheet thickness: approx.12mm Max.sheet width: approx. 3100mm Power: 15kW Control: ELGO Electric Accessories  Stand  Footswitch  Electric back gauge Other accessories on request Price and other technical data on request

Baujahr/ year: 2000/ überholt/ overhauled 2020 CNC: Transfluid bending collision software T Project Professional Incl. License key Transfluid bending soaftware T Project Proffessional Anti collision with license key Pipe diameters/pipe diam.: 40 168 mm Wall thickness / wall thickness: max. 11.5 mm Bending speed / bending speed: 7°/ sec Aufzugslänge/ arbor length 6000mm Radius/radius: min. 150mm Weight: approx. 26.5 t Connected load: approx. 35 kW Specifics Set of bending tools / set of tools for: Radius 2 x D 78 – 168.3mm bending mandrels Machine was completely overhauled in 2017 and equipped with a new control system equipped. / in 2017 machine fully overhauled and new control

Key data: 2500 mm, 32 mm

Manufacturer / make: WMW Schwermaschinenbau Wildau Type/ type: UBR 32 x 2500-7/16 Lagernummer / stock number: 1019 Baujahr / new in: 1969 max. sheet width: 2500 mm Bale length / convexity length of rollers: 2700 mm Max. sheet thickness ( St 50): 32 mm Max. sheet thickness ( St 34): 39 mm min. sheet thickness ( St 50): 8 mm Number of straightening rollers:7 rollen / rollers Number driven straightening rollers: 5 rollers Straightening roller diameter of straightening rollers: 290 mm Output straightening rollers / diameter of input / output straightening rollers: 345 mm Number of support rollers: 13 Stützrollendurchmesser / diameter of support rollers: 288 mm Oberbolenhub/ stroke of upper beam: 120 mm Straightening speed / speed of straightening: 16 m / min Hauptantrieb / rated power of main drive: 90 kW Total load: 138 kW Gewicht de ...

Key data: 630 mm, 6 mm, 23

Typ/ type: WML 23/30/630 Manufacturer / make: Schubert Year of make: 1994 Stocknummer / stock number: 1013 max. sheet width: 630 mm max. sheet thickness: 6 mm min. sheet thickness: 0.3 mm Number of straightening rollers: 23 rollers Straightening roller diameter/diameter ofstraightening rollers: 30 mm Speed of straightening: 10 m / min Min. workpiece length: 50 mm Max roller distance: 20 mm Reading of the machine setting / Reading the machine settings: 0,01 mm Power of main motor: 6 kW Weight of the machine / weight: 4,3 t

Article number: 01-05-001 Manufacturer: Eckold Very good general condition Machine workshop-tested Shipping time: All rights reserved. Year of construction: ca.1995 L x W x H: approx. 1200x800x1800mm Weight: approx. 400kg Accessories  Hydraulic power unit Other accessories on request Price and other technical data on request

Key data: 2500 mm, 16 mm

Machine type: sheet leveller Stock number: 0997 Make: WMW GOTHA Type: UBR 16 x 2500 /1-10 Year of construction: 1976 Sheet width: 2500 mm Sheet thickness: 16 mm Smallest sheet thickness: 6 mm Number of straightening rollers: 11 Roller diameter: 180 mm Straightening roller diameter: 180 mm Target speed: 10-16-20 m/min Flow speed: 10 m/min Total power requirement: 75 kW Machine weight approx.: 46 t

Key data: 2000 mm, 10 mm

Sheet metal straightener, partially overhauled       sheet leveller, partly overhauled   Typ/ type:                                � �                                  � �              UBR 10 x 2000 /1-16 WDKS Manufacturer / make: WMW Gotha Year of construction/ year: 1989/2024 electrically overhauled max. sheet width: 2000 mm max. sheet thickness ( St 50): 10 mm    min. sheet thickness / min. sheethickness: 3 mm   Number of straightening rollers: 13 rollers / rollers Straightening roller diameter/diameter of     Straihgtening rollers: 145 mm Speed of straightening: 16 m / min Bale length / convexity length of rollers: 2330 mm Distance between b/n rollers centres: 150 mm Diameter of bottom rollers: 290 mm Number of bottom rollers / number of bottom rollers 21/24 Number of outr ...

Type: UBR 25 x 2000-7 / 16 Manufacturer / make: WMW Wildau Baujahr / year: 1984 max. sheet width: 2000 mm max. sheet thickness ( St 50): 25 mm min. sheet thickness / min. sheethickness: 8 mm Number of straightening rollers: 7 rollers Weight of the machine / weight: 51 t

Manufacturer: Lang Maschinenbau GmbH & Co. KG Type: EL-HY168 F CNC PLC: Siemens Simatic S7 Control system NCU: Siemens 840D CNC control: MMI Multicontrol 2000 Dimensions and weight: Net weight: 33t max. tube Ø: 168.3mm max. bending radius Rm: 700mm min. bending radius Ri: 80mm Pipe extension length: 6000mm max. bending angle: 190° max. torque of resistance at St35W: 201cm3 electr. Connected load: 400V/50Hz Full load current: 85A
