Key data: 600 mm, 1200 mm

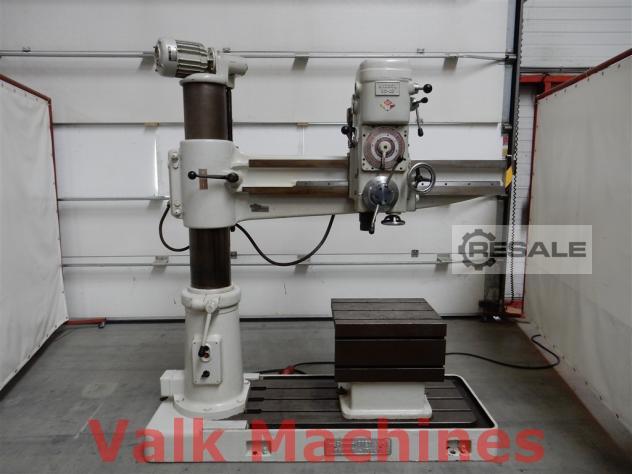

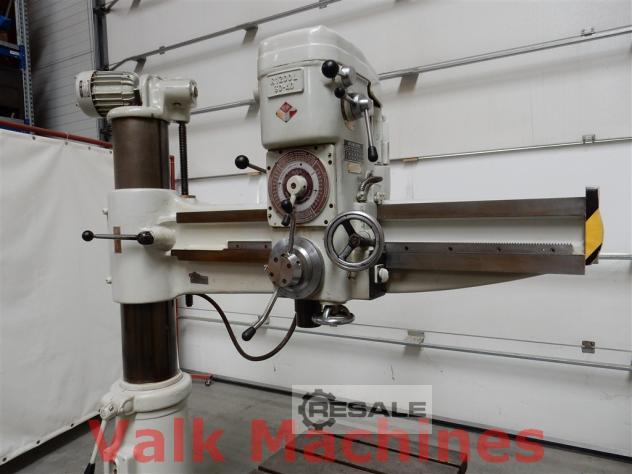

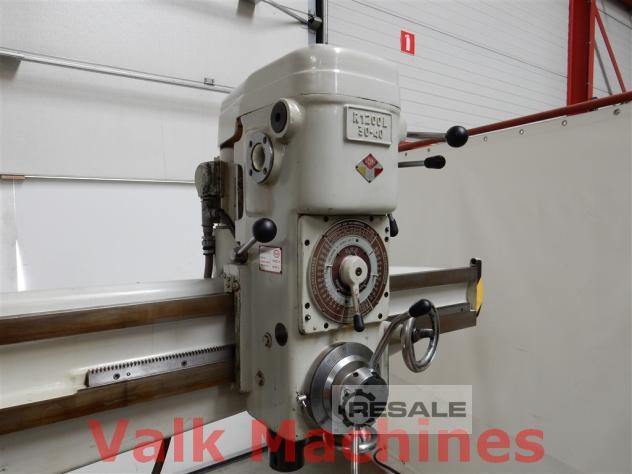

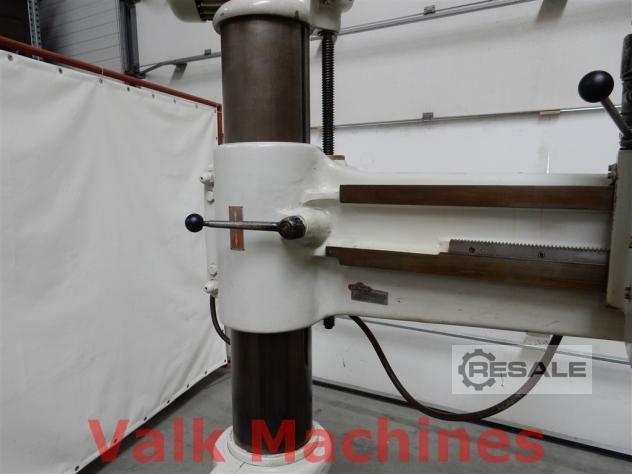

Stock number: 3869 RADIAL DRILL Manufacturer: BREDA, Type: R1200L - 30-40 Specifications: Projection 1200 mm Spindle cone 4 MK Spindle diameter 60 mm Large drilling capacity 30-40 mm Ø Spindle speeds 40-200 rpm Drilling movement 180 mm Accessories: Box table Length: 1750 mm, Height: 2100 mm, Width: 640 mm, Weight: 1500 kg
Projection: 1200 mm Drilling capacity steel: Ø 30 mm Casting drilling capacity: Ø 40 mm Spindle Mount: MK4 Spindle speeds: 1350 rpm. Clamping sleeve LxWxH: 460 x 550 x 500 mm Surface flat floor plate: 1100 x 500 mm Country of origin: Italy Machine LxWxH: 1750 x 640 x 2100 mm Machine weight: 1500 kg
Arm length: 2200 mm Drilling capacity steel: Ø 50 mm Spindle Mounting: MK5 Spindle speeds: 30 - 2200 rpm. Spindle -> slab: 1620 mm (max) Clamping sleeve LxWxH: 480 x 820 x 550 mm Surface floor slab: 1700 x 800 mm Motor power: 6 kW Country of origin: Italy Machine LxWxH: 2760 x 1000 x 2960 mm Machine Weight: 6000 kg

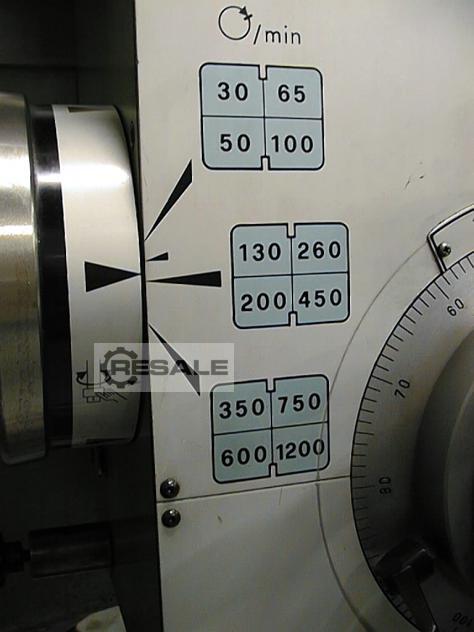

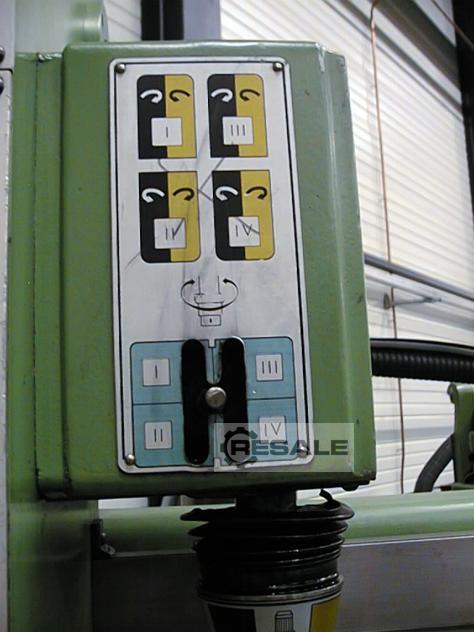

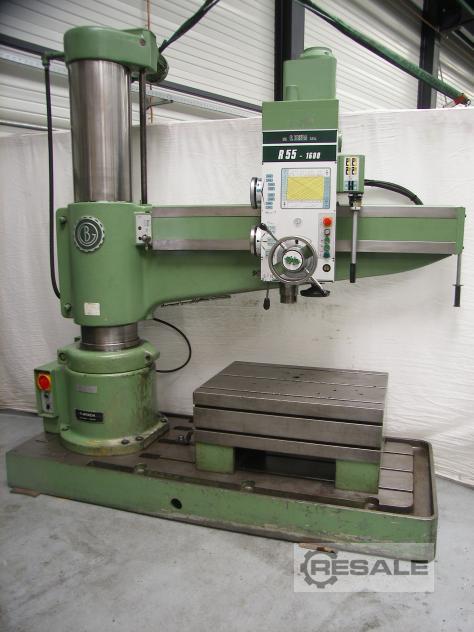

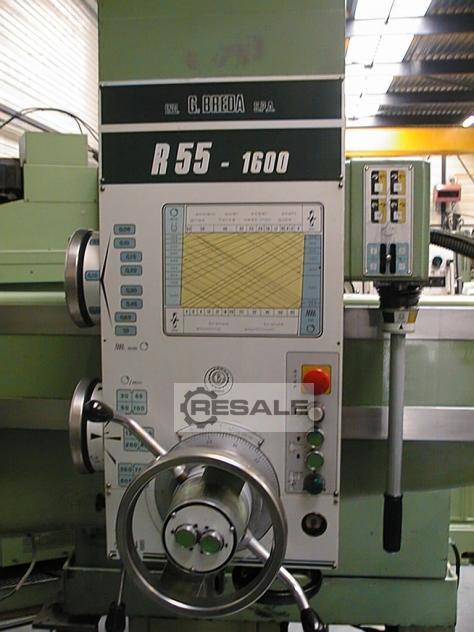

Code 71130 Description Radialbohrmaschine Make BREDA Modell R 55 x 1600 Serial No. 224 Year 1990 Capacity in Steel 60 55 mm Capacity in Cast Iron 70 mm Thread cutting in Steel 60 M 50 Thread cutting in Cast Iron M 65 Spindle taper 5 MC Spindle radius: max / min 1785 / 495 mm Spindle traverse 1290 mm Min / Max height spindle / top of base plate 505 - 1670 mm Arm traverse 855 mm Quill stroke 310 mm Number of speeds 12 Spindle speed range 30 - 1200 rpm Number of spindle feeds 8 Spindle feed range 0,06 – 1,0 mm/rev Baseplate size 2505 x 1000 mm Clampsurface base plate 1700 x 1000 mm Main motor 4,4 kW - 380 Volts Dimension of machine 2570 x 1000 x 2740 (3275) mm ( L x W x H ) Weight 4070 kg Accessoiries Box 1000 x 700 x 500 mm Coolant Hydraulic clamping ...

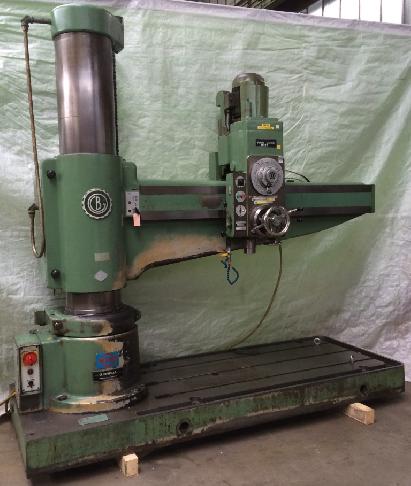

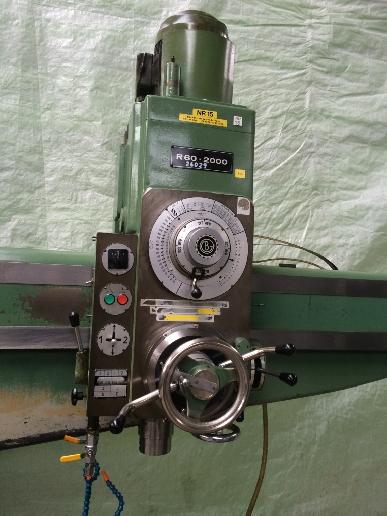

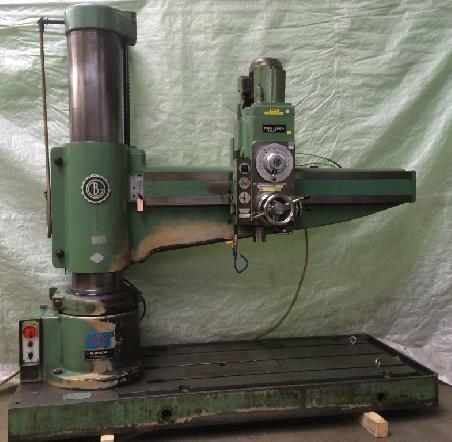

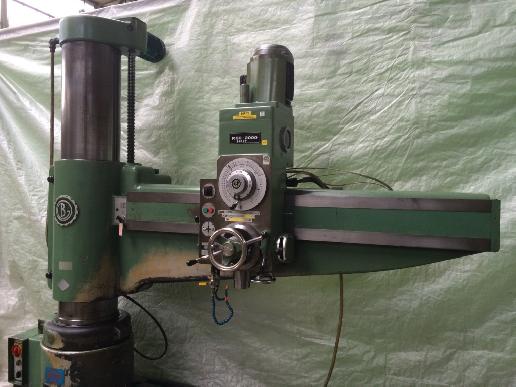

Drilling capacity in steel (diameter): 60 mm projection: 2000 mm kl. / gr. Distance between Mounting surface and drill Quill: 525/1690 mm Quill stroke: 310 mm spindle mount MT: 5 table size: 1900 x 1100 mm speed: 30-1250 rpm feeds: 0.08-1.35 mm spindle drive: 5.5 kW weight: 5700 kg space requirement: 2975 x 1100 x 2950 mm
arm length: ca. 10 cm T-slots: Aufspannwürfel : ja dimensions of the machine ca.: 80 x 60 cm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
