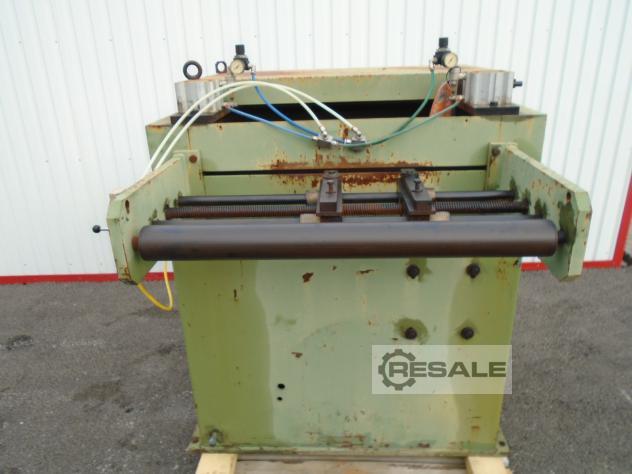

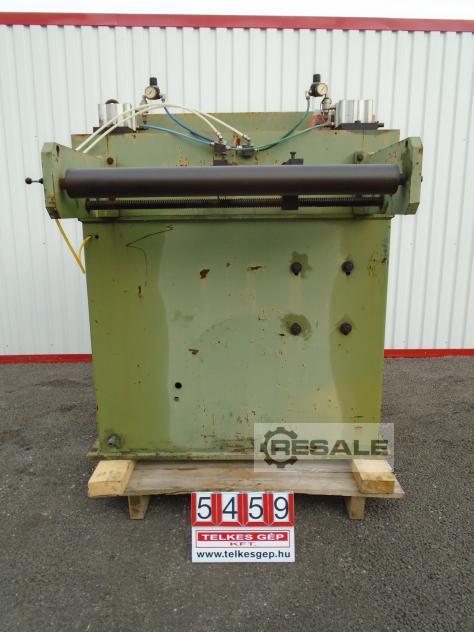

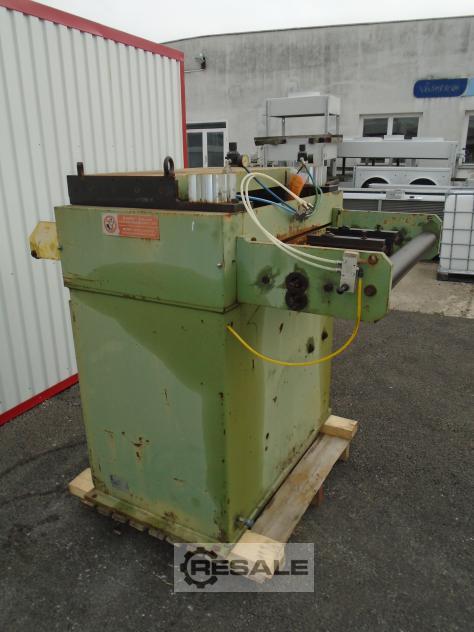

Offer 25468 Sheet metal – roll forming line for shelves Specifications: - Shelf width approx. 250 mm - Material thickness 1.25 mm - Roll forming unit with 16 roll stations - hydr. Punching unit - Straightening unit make DREHER -Mot. Reel CAMU Load capacity approx. 1.5 T -Control panel - Space requirement / footprint 14 x 1.5 m - Weight approx. 10 T

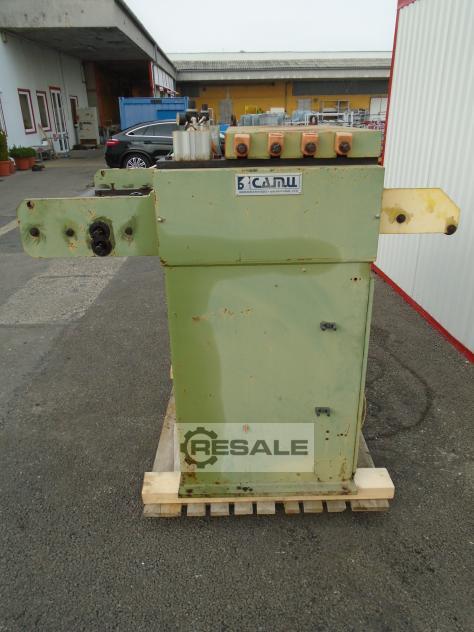

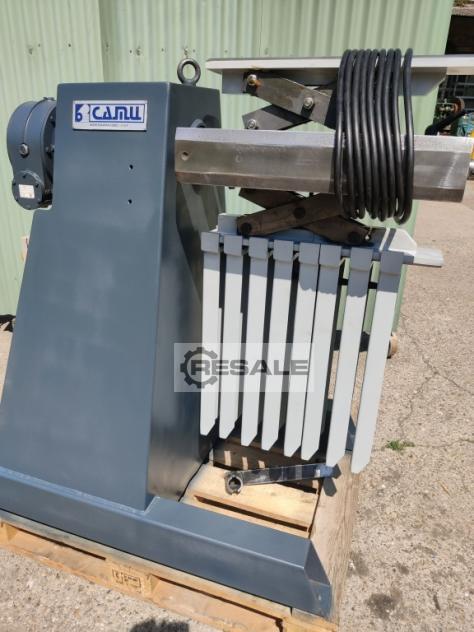

material width: 0400 mm coil weight: 2,00 t coil internal dia.: 340 - 530 mm coil outside dia.: 1200 mm band speed: 14 U/min total power requirement: 1,1 kW weight of the machine ca.: 0,380 t dimensions of the machine ca.: 1,30 x 0,90 x 1,40 m with drive Manual central spreading Brake motor Motor has only one on/off switch The reel runs The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
sheet width - max.: 0500 mm coil weight: 1,50 t coil internal dia.: 370 - 630 mm coil external diameter: 1450 mm total power requirement: 1,1 kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

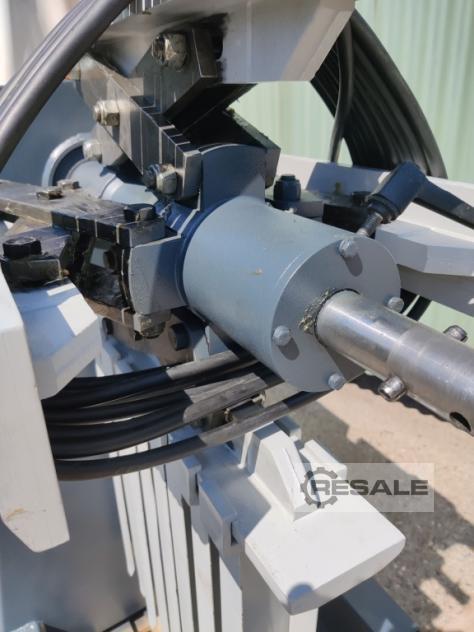

sheet width: 0600 mm coil weight: 2 x 1,50 t coil internal dia.: 370 - 630 mm coil outside - diam. ca.: 1560 mm 0: 12 U/min power capacity: 1,1 kW total power requirement: kW weight of the machine ca.: 1,55 t dimensions of the machine ca.: 2,60 x 1,20 x 1,90 m double decoiler with motor, manual expansion, coil loop control The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
