Universal Lathe Top Condition The machine comes from a small workshop and is very, very little used. Year of Make: 2009 Digital 2 Axis 3 Jaw chuck RAPID B Quick Change Steel Bracket + Inserts Koernerspitze Rear shield length Spaenewagen
Control : Heidenhain Peak height 260 mm Tip width 1500 mm Turning over bed 520 mm Turning diameter via slide 310 mm Travel -Z Axle 1250 mm Travel -X-axis 270 mm Width of the lathe bed 400 mm Spindle holder CL 8" Spindle bore 110 mm Spindle speeds 0 - 2000 rpm. Rapid speed X/Z 5 m/min Pinien travel by hand 220 mm Pinole diameter 80 mm Pinole holder MK 5 Total installed power 18 kW (Electronically reduced) Engine hours 1828 h
Control : D.Electron Z 32 Peak height 220 mm Tip width 1000 mm Turning over bed 440 mm Turning diameter via slide 245 mm Travel -Z Axis 750 mm Width of the lathe bed 320 mm Spindle holder CL 6" Spindle bore 62 mm Spindle speeds 0 - 2500 rpm. Rapid speed X/Z 7 m/min Pinien travel by hand 200 mm Pinole diameter 80 mm Pinole holder MK 4
Control : D.Electron Z 32 Peak height 260 mm Tip width 1500 mm Turning over bed 520 mm Turning diameter via slide 310 mm Travel -Z Axle 1250 mm Travel -X-axis 270 mm Width of the lathe bed 400 mm Spindle holder CL 8" Spindle bore 110 mm Spindle speeds 0 - 2000 rpm. Rapid speed X/Z 5 m/min Pinien travel by hand 220 mm Pinole diameter 80 mm Pinole holder MK 5 Total installed power 18 kW (Electronically reduced) Engine hours 1828 h
Control : D.Electron Z 32 Peak height 220 mm Tip width 1000 mm Turning over bed 440 mm Turning diameter via slide 245 mm Travel -Z Axis 750 mm Width of the lathe bed 320 mm Spindle holder CL 6" Spindle bore 62 mm Spindle speeds 0 - 2500 rpm. Rapid speed X/Z 7 m/min Pinien travel by hand 200 mm Pinole diameter 80 mm Pinole holder MK 4
Peak height above bed 210 mm Tip distance 950 mm Permissible diameter on bed 420 mm Permissible diameter on slide 160 mm Head Spindle passage 62 mm Spindle nose ASA 6 - Type 2 Engine Power 10.7 kW Spindle bore 62 mm Speed 0 - 3500 rpm. CNC Control D. Electron Z32
Tip height over bed top distance of 200 mm 1000-1500 mm Permissible diameter on bed 400 mm Permissible diameter on sled 230 mm bed Bed width 280 mm head Spindle passage 52 mm 6ʺ camlock spindle nose Speed Spindle speed 16 n. Values 36-2000 RPM. Feeding and tapping 72 longitudinal feed 0.05-4.45 mm / rev 72 cross feed 0.025-2.25 mm / rev 54 Whitwort Division 1-56 TPI 54 metric pitch 0.5-28 mm 54 English Division 1-32-1ʺ inch 54 Division of modular 0.25-14 mm 54 pitch Division 2-112 D.P.. Cross slide 470 mm Width 180 mm Maximum stroke 235 mm Cross slide Length 260 mm Width 120 mm Maximum stroke 150 mm Slewing range 360 degrees Counter tailstock Hollow shaft diameter 58 mm Hollow shaft length 265 mm Maximum stroke hollow shaft 120 mm Cone of the hollow shaft 4 C.M.. - MK Motor Power 4 kW
Accessories: Coolant system Digital display HEIDENHAIN Tip height 200 mm Top width 1000 mm Speed 36-1600 rpm Umlauf-Ã? on cross slide 230 mm Spindle hole 52 mm Spindle support 6 "camlock Reitstock Quill Ã? 58 mm Tailstock spindle mount MT 4

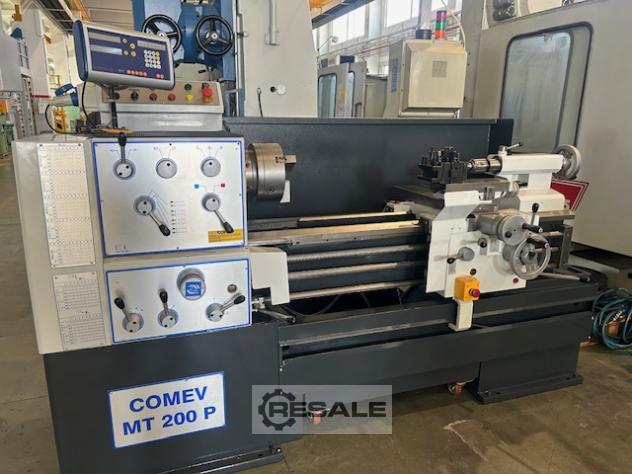

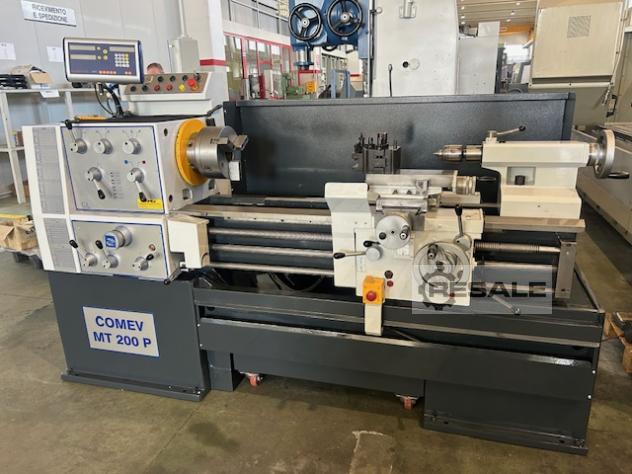

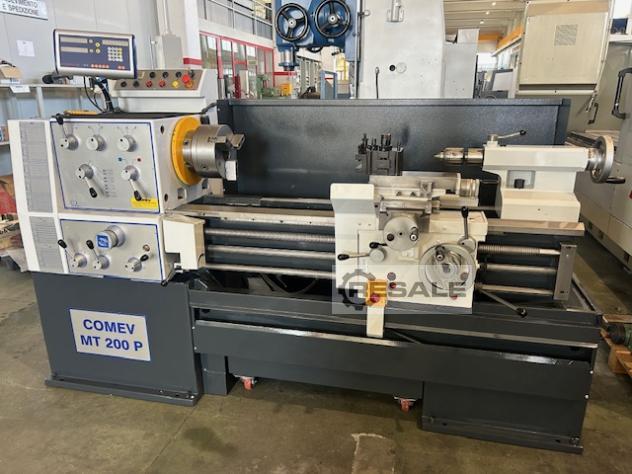

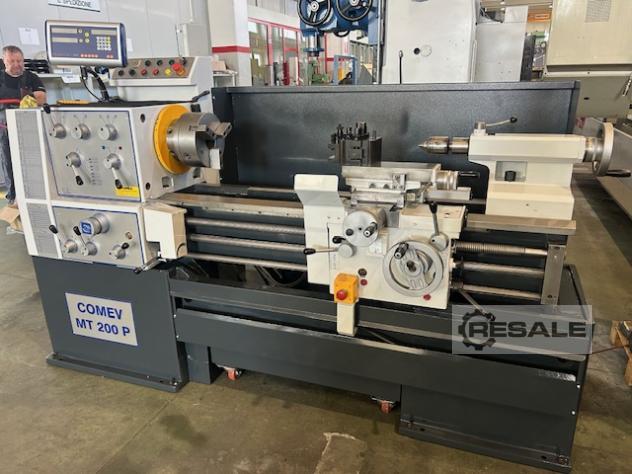

Conventional lathe COMEV 200, 200 x1000 mm., Information about technical data are not binding., Machine available subject to prior sale., Height centres: 200 mm, Swing over crosslide: 230 mm, Distance between centres: 1000 mm, Bed width: 280 mm, Spindle nose cam-lock din55029: 6 , Spindle bore: 52 mm, Spindle speed: 25 - 1600 rpm, Number of spindle speeds: 16, Spindle motor power: 3 Kw, Tailstock quill diameter: 52 mm, Taper of quill mt: 4, Approx net weight: 1.300 Kg
