Key data: 350 mm, 1250 mm, 2500 1/min

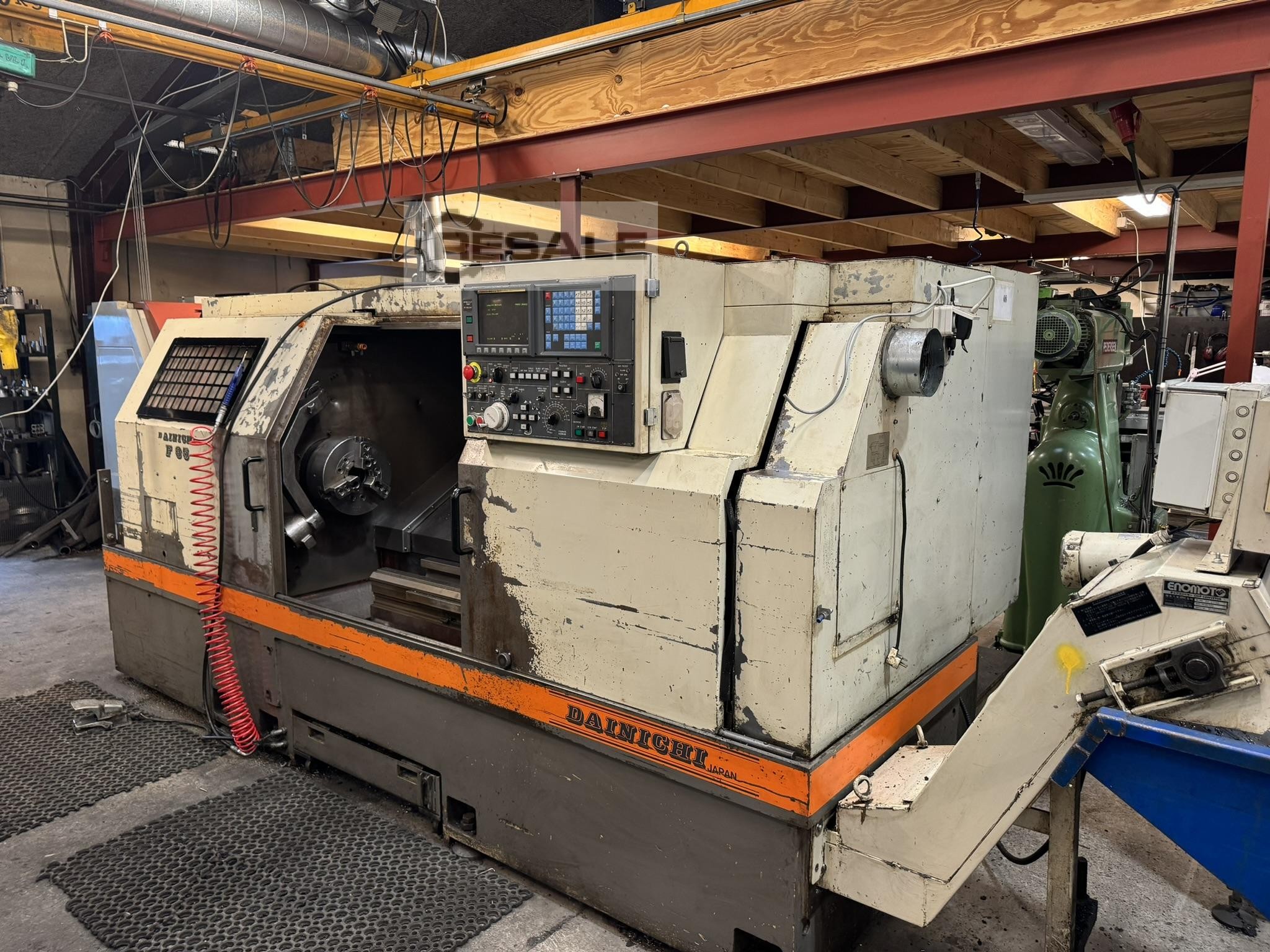

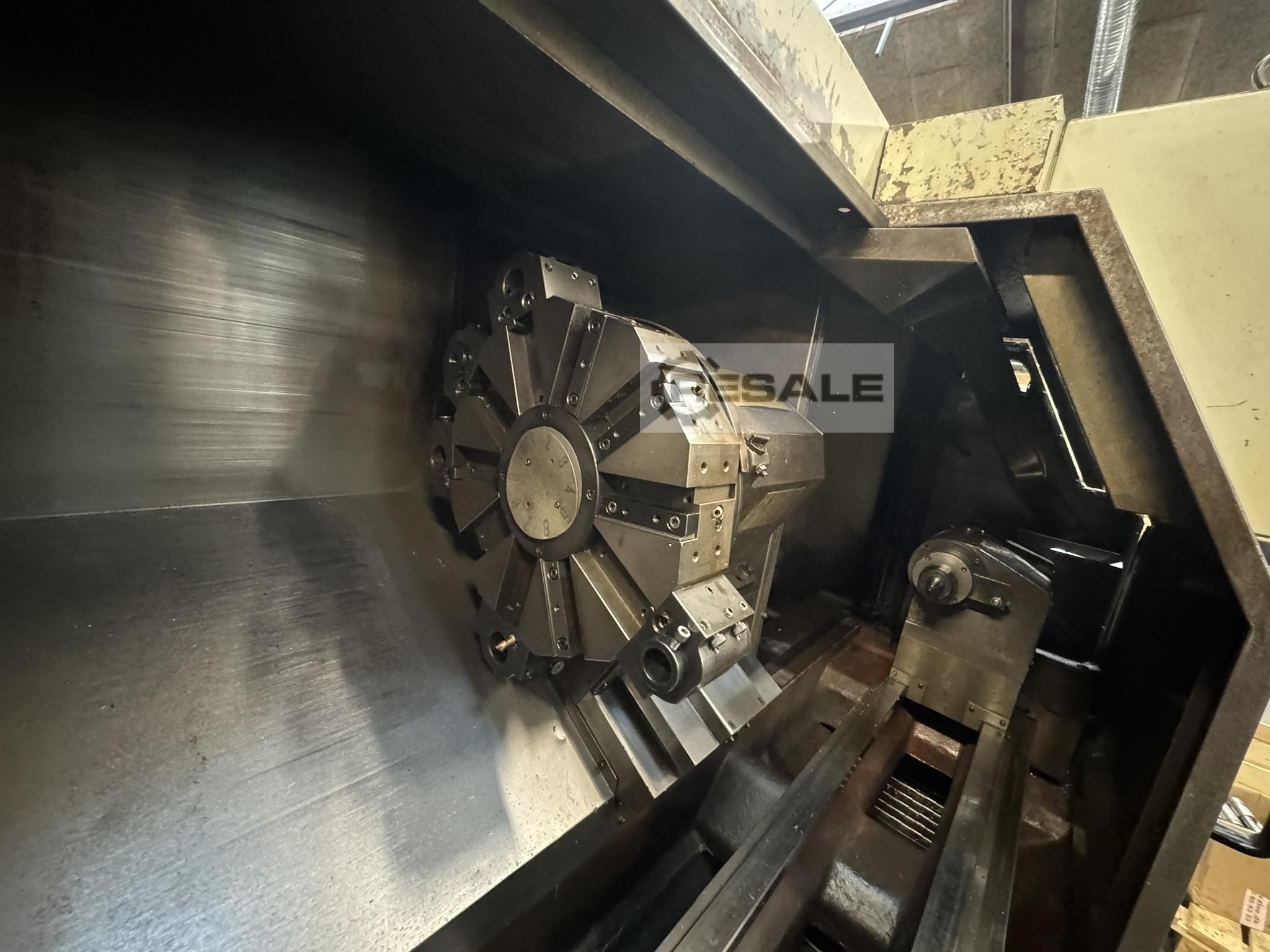

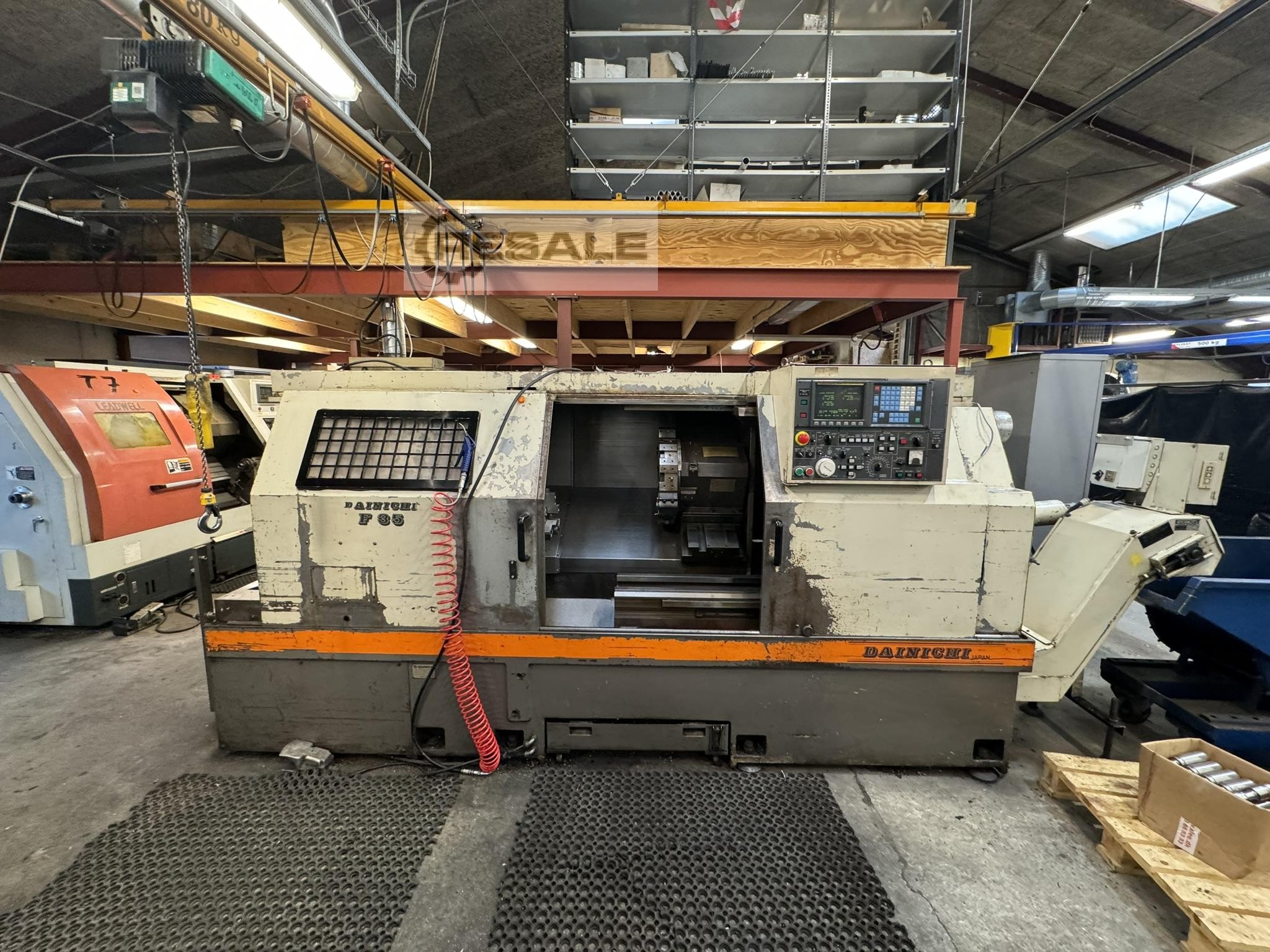

Stock number: 3954 CNC LATHE Manufacturer: Dainichi, Type: F35 - 1250 Machines NO.: 24350 , Year of manufacture: 1990 Specifications: Max. circumferential diameter 350 mm dia. Max. turn. About Bed 550 mm Dia. Turning length 1250 mm Turning over planing slides 400 mm dia. Main motor power 22 kw Main spindle speed range 25-2500 rpm Spindle bore 90 mm dia. Tool turret with 12 stations Accessories: Hydr. Chuck main spindle mm dia Various tool holders. Chip conveyance. Length: 3750 mm, Height: 1800 mm, Width: 1700 mm, Weight: 6500 kg
Key data: 350 mm, 1250 mm

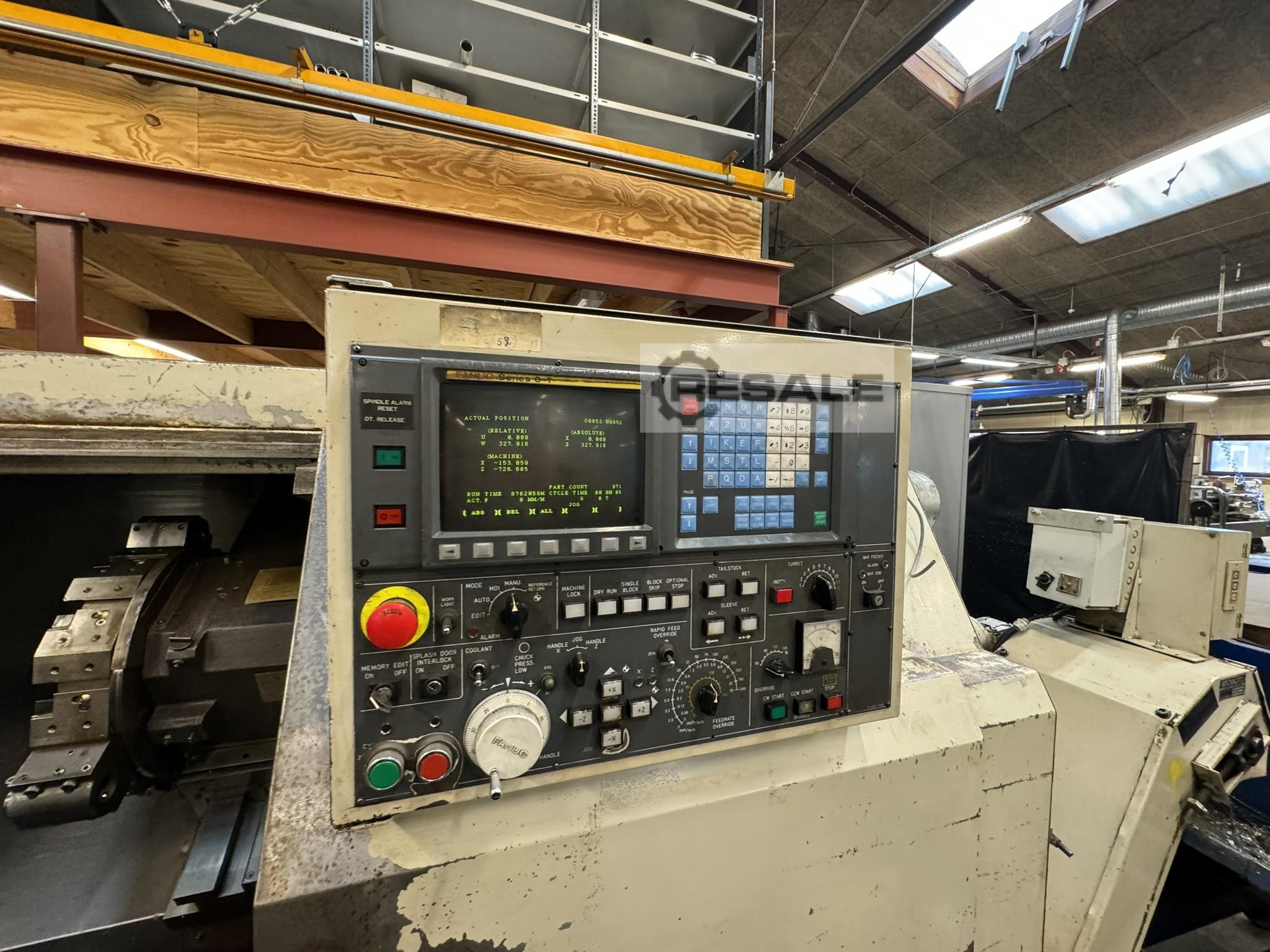

CNC lathe Dainichi DAF 35 – F35/1250 - Built in 1994 - 1st hand and from your own use - Fully functional, energized, ready for demonstration - X-axis travel: 200 mm - Z-axis travel: 1320 mm - Turning diameter: 350 mm - Turning length: 1250 mm - Rapid traverse Z-axis mm/min 15000 - Spindle speeds: 25 – 2500 rpm - Spindle diameter 105 mm - Spindle motor power: 22 kW - Control: Fanuc 0TF - Chip conveyor Z-Type - Kitagawa 12 Hydr. 3-jaw chuck
