The SUPERA-3015 A laser cutting machine is a general purpose type with fiber laser. It offers high dynamics in high-speed cutting of thin sheet metal, and they have the technology and know-how on board to produce stable and consistent parts even for thicker material, where the maximum thickness is limited only by the output power of the laser. Standard equipment A SUPERA 3015 comes with the following standard equipment: An automatic changing table for an almost continuous cutting process Two cutting tables with grid support Boxes for scrap and dust removal under the working area of the machine KEBA – LTI control with practically unlimited program memory Integrated laser pulse generator 21.5 touch screen operator panel with graphical user interface Mouse and keyboard Cutting head for fiber laser source Automatic selection of gas valve to ...

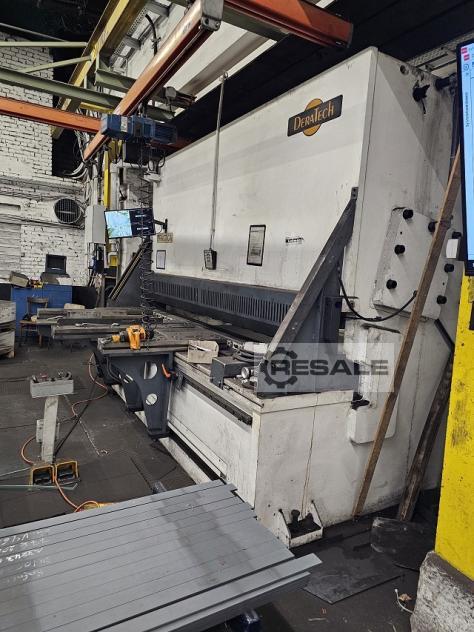

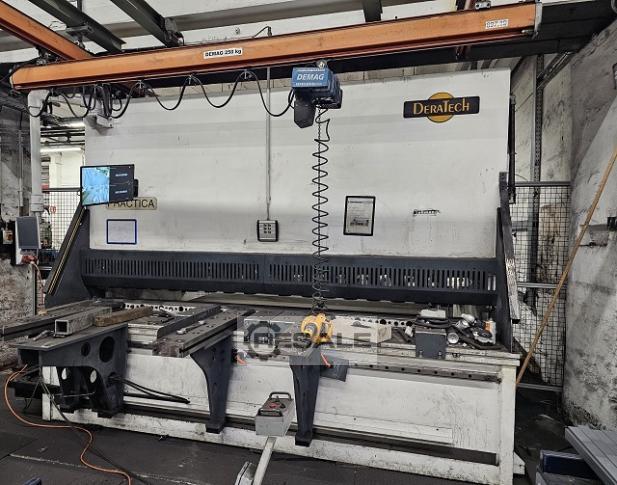

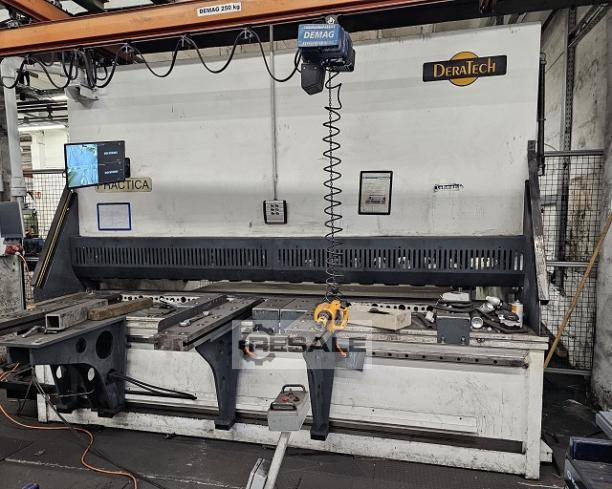

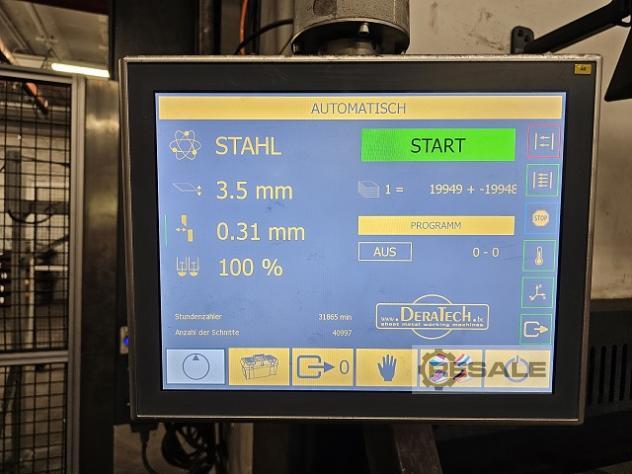

Hydraulic swing cutting shears Practica in SPECIAL DESIGN Machine hydraulically and motorically specially designed for continuous operation • Capacity 3200 x 25 mm ( 25 mm mild steel tensile strength Rm = 420 N/mm² ) • Knife highly tempered for cutting high-strength steels 3 partial lengths of approx. 1 meter, upper blade with 2 cutting edges, Lower blade with 4 cutting edges. • CNC-controlled cutting gap adjustment • Sheet metal hold-down with opening 100 mm between the underside of the hold-down holder and the lower blade • Cutting bar with opening 100 mm between upper and lower knife already on the left side of the machine (up to approx. 240 mm) B9mn0pxrvh Opening on the right side of the machine ) OPTIONS • Heavy-duty support arm / angle stop, manually adjustable in width on linear guide, equipped with automatically retractable angle stop. o Stroke angle sto ...
Key data: 170 t, 3200 mm
Deratech Ultima Press Brake 170-3200 Control ESA 660 W 2-D Graphics Full Windows Capable 19 Inch 4-axis backgauge X-R-Z1-Z2-instead of X-R Backgauge finger X3, CNC controlled+/-150 mm Additional heavy support arm on linear guide with parking space Higher narrow table for WILA plug-in matrices WILA hydraulic quick clamping incl. hydro unit CNC-controlled dynamic crowning incl. automatic Compensation during the bending process Tools, each 3100 mm BIU 021 (replica of UKB 19.021, new 2020) BIU 023 Wila V-die 85° 16/22/35/50 Rolleri T Die 30° 08/12/25/40 Rolleri At call
-Exhibition Machine- • Linear CNC measurement for depth Y1-Y2 • CybTouch 12, 2D graphical CNC control, 12 touch • X-R backgauge on ball screw • Manual mechanical crowning, type Wila • Without tools • 2 support arms on linear guide • CE with LazerSafe / Fiessler-Akas light curtain Demonstration machine configured for trade fair approx. 6 weeks
Model Ultima Hybrid version UBB 170 t/3200 mm New machine trade fair stock machine SPECIAL PRICE YEAR OF YEAR 2022 Linear CNC measurement for depth Y1-Y2 ESA 860, 2D graphical CNC control, 15 touch CNC-Y1Y2-X-R-Z1-Z2 backgauge on ball screws CNC-controlled hydraulic crowning 1 set of upper tools PS,135-85-R=.8, 3x 835 + 1x 805 divided 1 set of Rolleri M460-R sub-tools CNC-controlled bending aid CE Lasersafe Control ESA 860W, PC graphical control with automatic bending sequence calculation, collision warning 19 inch touch screen incl. remote assistance via Teamviewer and workstation software Backgauge 6-axis CNC backgauge Y1Y2-X-R-Z1-Z2 Drive SERVO DRIVE hybrid up to 70% energy savings EXTRA high speed 200 mm/s from and up Nvs32 CNC-controlled bending aid Lower tool holder Small narrow table, width 60mm x height 110mm Front support arms 2 heavy supp ...
-Exhibition Machine- The SUPERA-3015 A laser cutting machine is a general-purpose type with fiber laser. It offers high dynamics in high-speed cutting of thin sheets and they have the technology and know-how on board to produce stable and constant parts even for thicker material, where the maximum thickness is limited only by the output power of the laser. Standard equipment A SUPERA 3015 comes with the following standard equipment: An automatic shuttle table for an almost continuous cutting process Two cutting tables with support in the grid Boxes for scrap and dust removal under the working area of the machine KEBA – LTI control with virtually unlimited program memory Built-in laser pulse generator 21.5 touch screen operator panel with graphical user interface Mouse and keyboard Cutting head for fiber laser source Automatic selection of the gas valve to support two di ...

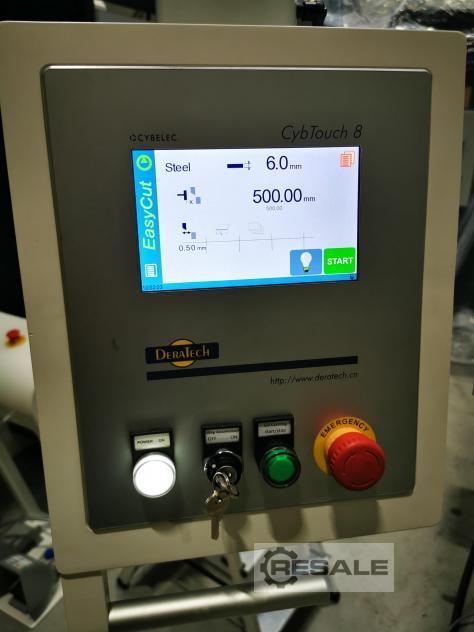

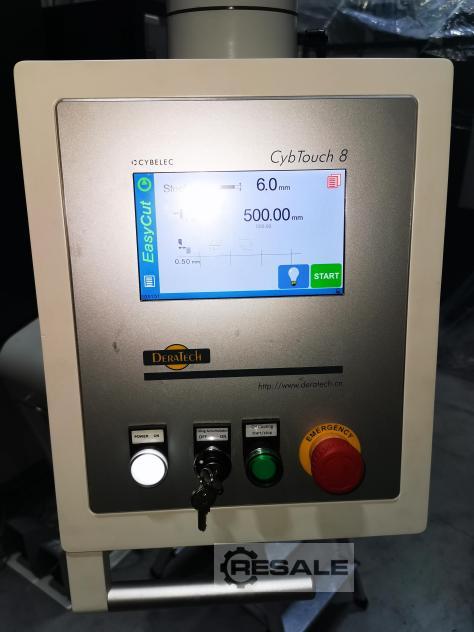

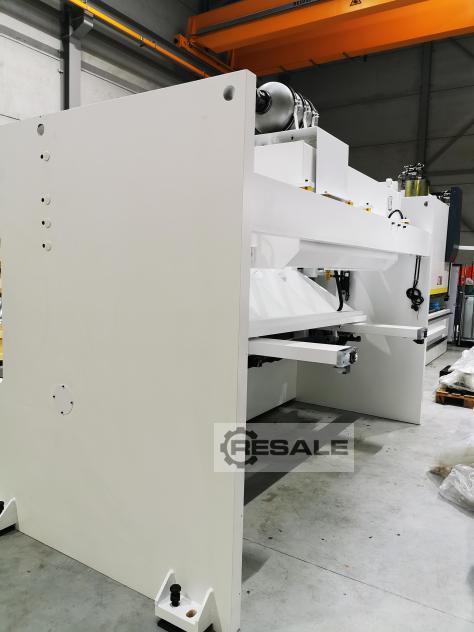

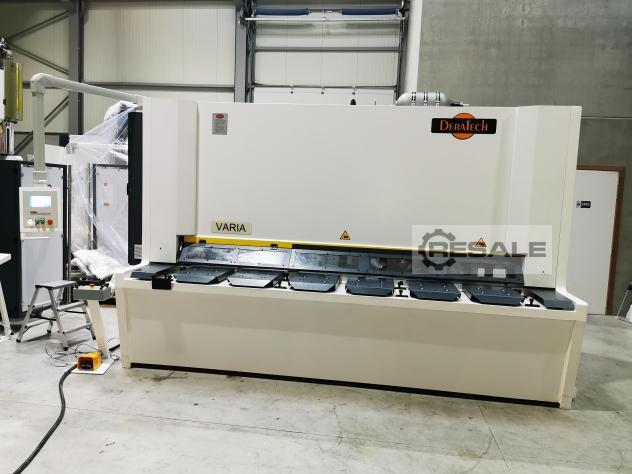

-Exhibition Machine- DERATECH Practica CNC hydraulic guillotine shears 3050 x 20 mm Available Model VAC-20 x 3050 mm Hydraulic kullissen-guided guillotine shears in robust design Cybelec CybTouch 8 controller Backgauge 1000 mm, foldable Angle stop 1000mm Support arms 1000 mm Knife for cutting VA material with 4 cutting edges Support table with ball rollers DWSQ0E Automatic cutting angle and cutting gap adjustment CE
Inv. Num. : 6443 Type: TECHNICA PLUS Producer: DERATECH Created: 2009 Parameters: Control system: Cybelec DNC 880 S Operating hours: 3040 h Compressive force: 250 t Maximum bending length: 4100 mm Total power requirement: 18.5 kW Machine weight: 18000 kg Equipment: Tools 2-axis backgauge
Press brake Ultima 4100 mm Pressing force 320 tons Control ESA 650 Windows with workstation software 4-axis backgauge CNC-controlled 1 backgauge X3 CNC controlled 2 additional stop fingers 2 heavy-duty mounting arms adjustable in height and width to linear guide + parking space Machine table special design 2 pneumatic sheet metal supports with brushes Hydraulic clamping for Wila Matritzen incl. hydro unit Hydraulic clamping for Wila upper tools incl. hydro unit Raised frame stroke 400 mm Installation height 730 mm D-STM Automatic sheet thickness measurement-20mm incl. correction database B9mn0pxrvh Oil Cooler
Capacity: 250 t Folding length: 4100 mm CNC Brand: Cybelec CNC Model: Modeva 880 Make Deratech 250T Type TECHNICA Plus Year 03 - 2009 Cybelec Modeva 880 Capacity (metric tons)Force = 250 T Folding length (mm)Length = 4.100 Down stroke or Up stroke Power 18.5 kW Tandem typeY1 / Y2 / X / V Tool 10 / 16 / 22 / 35 Tool 50 / 60 / 85 Under power !
Capacity: 250 t Folding length: 4100 mm CNC Brand: Cybelec CNC Model: Modeva 880 Make Deratech 250T Type TECHNICA Plus Year 03 - 2009 Cybelec Modeva 880 Capacity (metric tons)Force = 250 T Folding length (mm)Length = 4.100 Down stroke or Up stroke Power 18.5 kW Tandem typeY1 / Y2 / X / V Tool 10 / 16 / 22 / 35 Tool 50 / 60 / 85 Under power !
