Drilling And Boring Machines ACIERA

metal working machines / boring mills and machining centers / Drilling Machines

TOP
Seller

Manufacturer: ACIERA

Model:

Type of machine: Drilling And Boring Machines

item-No.: 158167963

Quantity: 0

Date: 01.05.2023

Year of manufacture: 1990

Location: Land-fi Finland

Price: 6,999 EUR

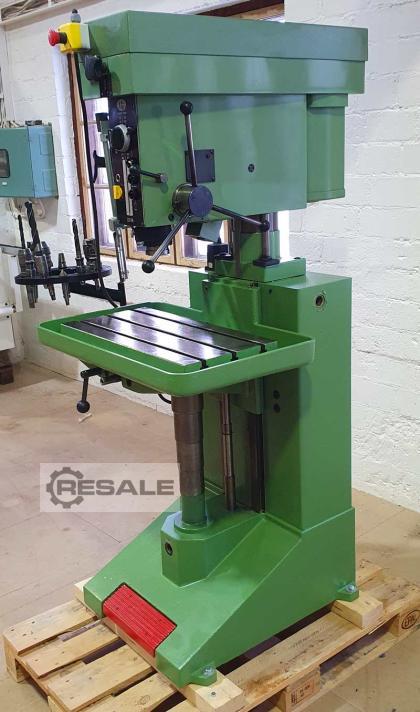

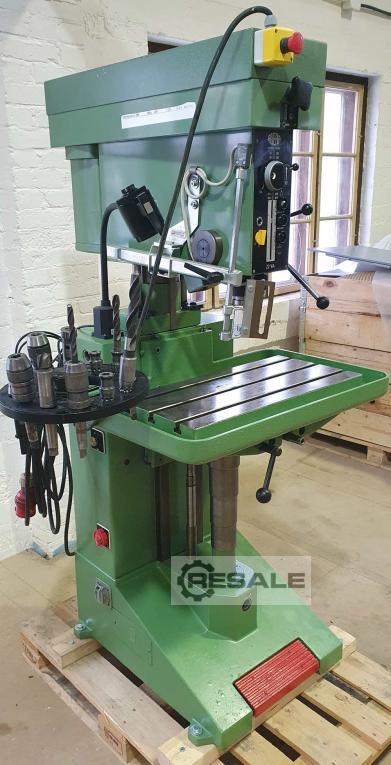

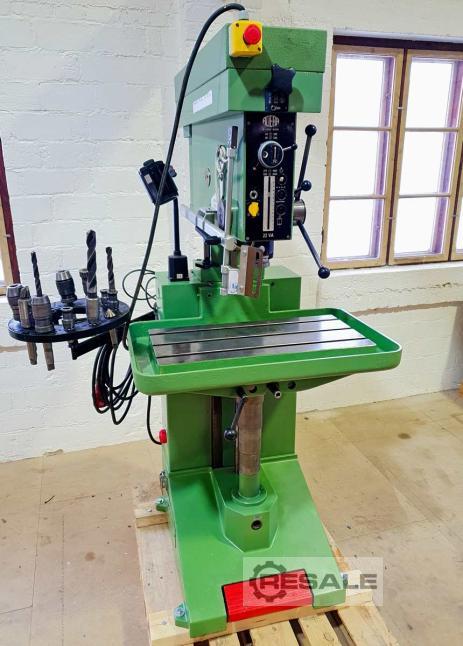

High precision drilling and milling machine Aciera 22 VA
Good condition from school operations
Year of construction approx. 1990

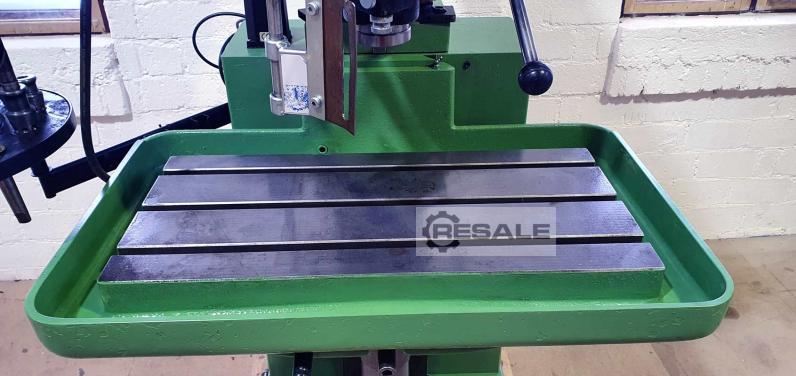

Table 600 x 320 mm
Speed 40 - 3600 rpm

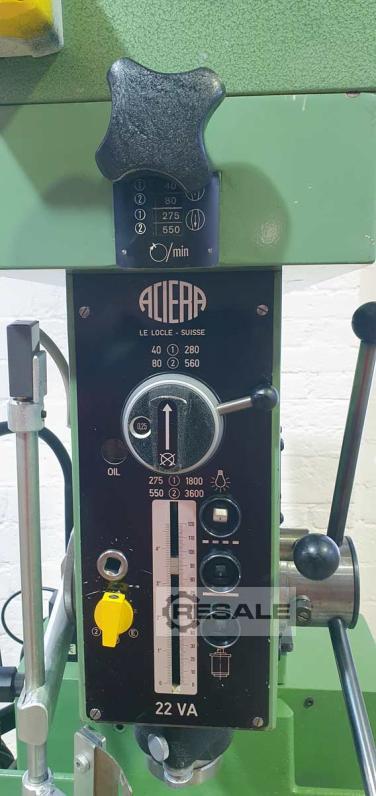

Speed setting rpm
4 automatic feeds

40-280
80-560
275-1800
550-3600

Spindle diameter 65 mm
Drilling spindle stroke 120 mm
Spindle holder: Aciera quick-change system
Automatic thread cutting
Drilling capacity in solid material 25mm
Max drilling capacity up to 30mm
Height adjustment via hand crank

Motor: 1.1 KW
Lamp
Some quick-change shots

Dimension WxDxH 90 x 130 x 185 cm
Weight approx. 800 kg

Technical information subject to reservation
Download: Foto 7
