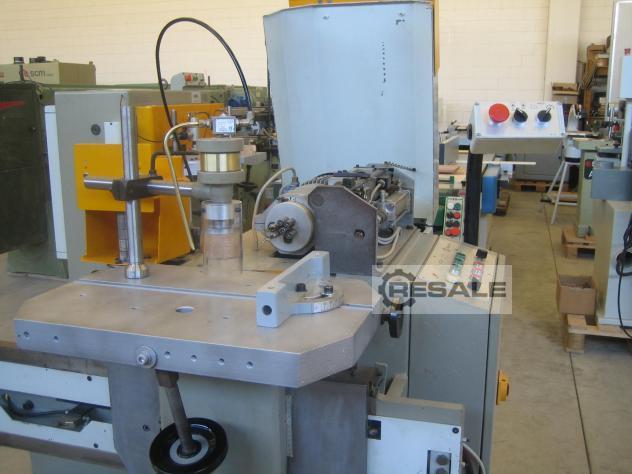

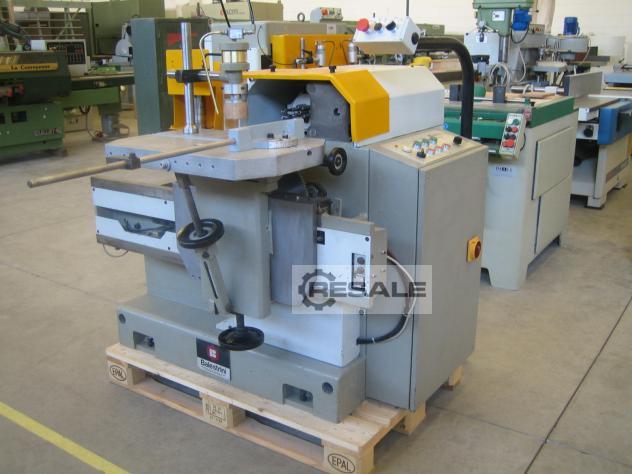

AUTOMATIC CUTTING , BORING and MOULDING machine model BALESTRINI
FTA

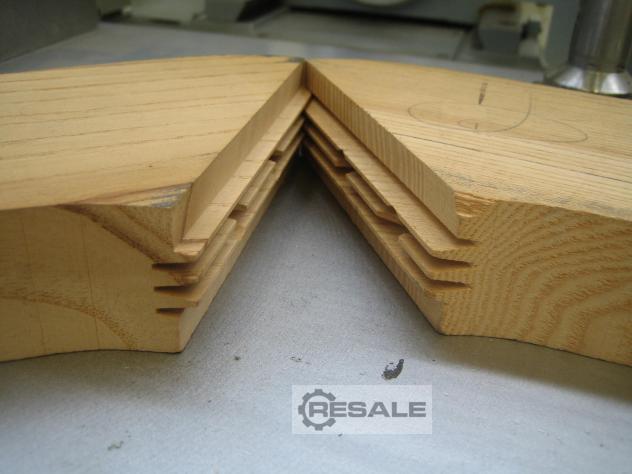

machine for joining parts of chairs, living rooms, furniture, etc.
the FTA machine is made up of 3 automatic operating units :
1st unit : circular saw for cutting workpieces to length

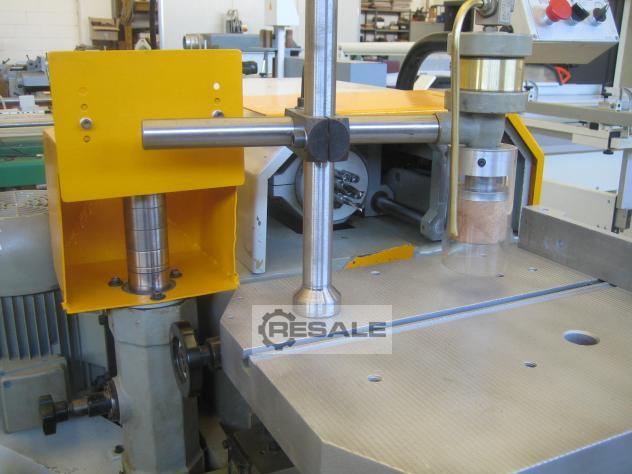

2nd unit : spindle moulder for milling with hydraulic sliding
carriage

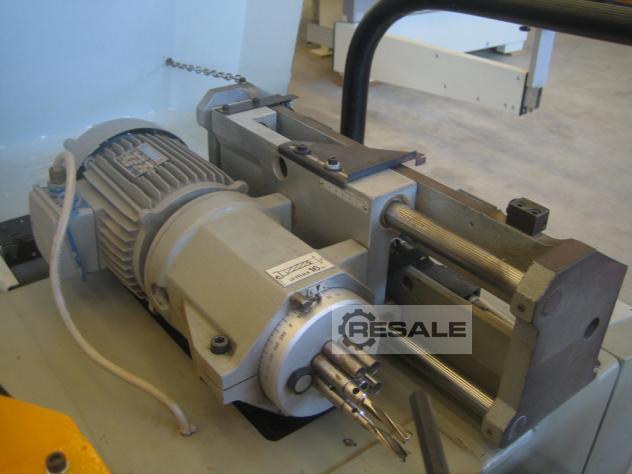

3rd unit : drilling unit with multiple center distance head .

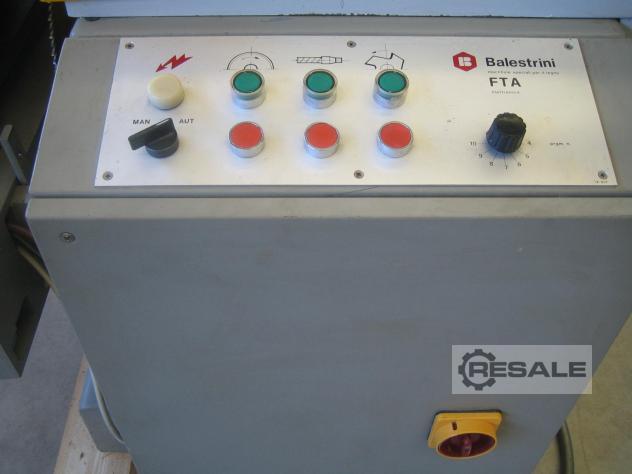

there are 9 work programs that can be selected and they consist of the
possible combinations of use of the 3 operating units.
only 2 can be used , or 1 , or even the 3 operating units can work in
different sequences .
Technical data :
- Cutting unit (circular saw) diam.mm.400. engine power Hp 3
- Moulding unit (spindle moulder) shaft diameter mm.30 . motor power
Hp 5.5
max. tool dimensions mm.160, H=mm.120 . hydraulic sliding carriage
- Boring unit . engine power Hp 3 . max. depth drilling mm.80
frontal inclination of the bench +5° / -30°
lateral inclination of the bench 15°
machine net weight kgs. 1000
