FRAMED VACUUM PUMP WITH SUCTION FILTER BARRATI ATMOS V4-KR Var. 0102

machines for plastic / other machines for plastic

Manufacturer: BARRATI

Model:ATMOS V4-KR Var. 0102

Type of machine: FRAMED VACUUM PUMP WITH SUCTION FILTER

item-No.: 158167267

Quantity: 0

Date: 01.09.2023

Year of manufacture: 2016

Location: Land-ch Switzerland

Price:


Your price suggestion:

Machine in stock:Yes

Seller-item-No.:95003.22

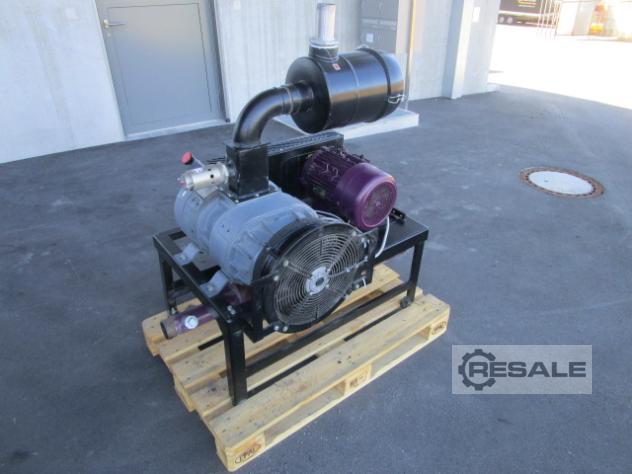

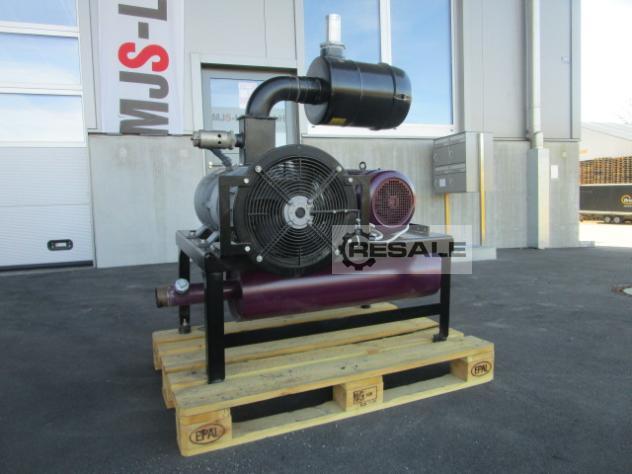

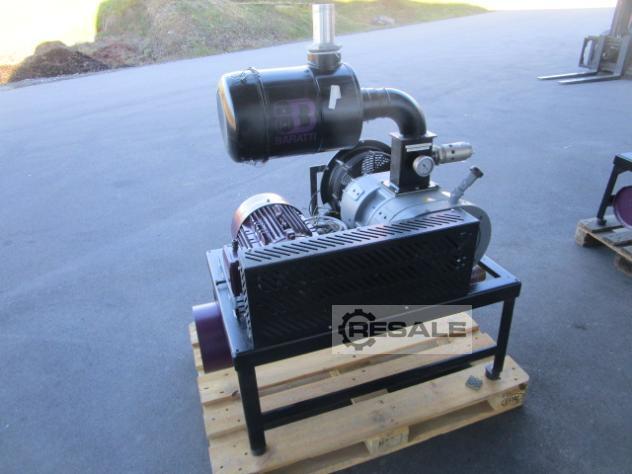

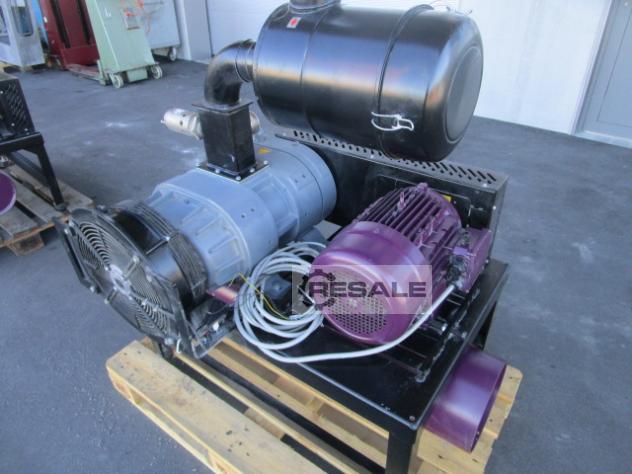

BARATTI FRAMED VACUUM PUMP WITH SUCTION FILTER AND SILENCER

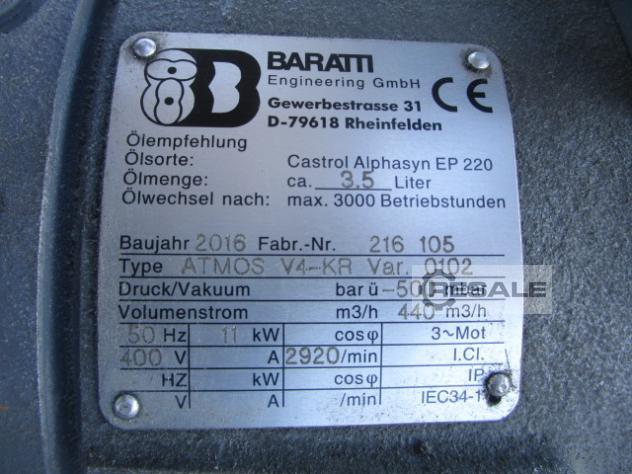

Fabr. -No.: 216 105 // Type: ATMOS V4-KR Var. 0102
Equipment / Additional information:
Roots Blower
Section. oil and wear-free compression,
air-cooled, V-belt drive with tension rails
and belt guard and two-stage
exhaust silencer

Incl. the following accessories:
-Vacuum relief valve
-saugs. Fine filter 3
-Connection piece internal thread 3
- Rohrfederman. -1..0 bar, filled with glycerine

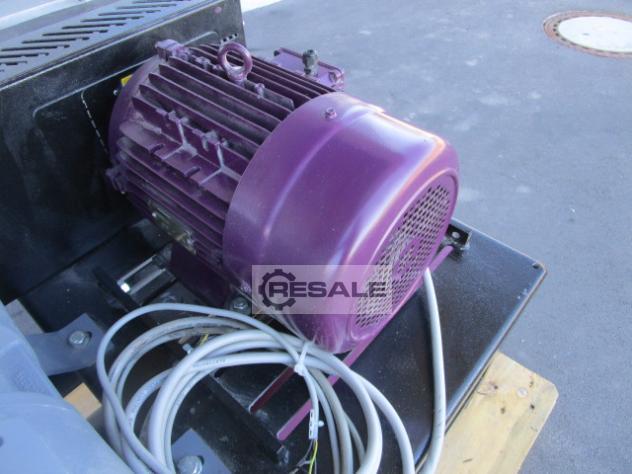

-Drive motor

Blower data:
Max. negative pressure: 500 mbar, abs.
Suction volume: 440 m3/h
Fan speed: 2920 rpm
Noise level: approx. 79 dB (A)

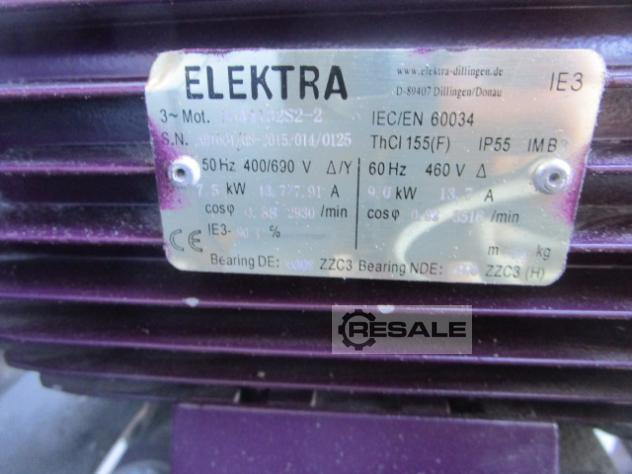

Engine data:
7.5 kW, 2930 rpm, 400/690 V, 50 Hz, IP 55
ISO class F, B3, KKL

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

BARATTI FRAMED VACUUM PUMP WITH SUCTION FILTER AND SILENCER

Fabr. -No.: 216 105 // Type: ATMOS V4-KR Var. 0102
Equipment / Additional information:
Roots Blower
Section. oil and wear-free compression,
air-cooled, V-belt drive with tension rails
and belt guard and two-stage
exhaust silencer

Incl. the following accessories:
-Vacuum relief valve
-saugs. Fine filter 3
-Connection piece internal thread 3
- Rohrfederman. -1..0 bar, filled with glycerine
-Drive motor

Blower data:
Max. negative pressure: 500 mbar, abs.
Suction volume: 440 m3/h
Fan speed: 2920 rpm
Noise level: approx. 79 dB (A)

Engine data:
7.5 kW, 2930 rpm, 400/690 V, 50 Hz, IP 55
ISO class F, B3, KKL
seller offer No. resale 95003.22
