Injection Molding Machine BATTENFELD BA 8000/7700 HM

machines for plastic / injection moulding machines

Manufacturer: BATTENFELD

Model:BA 8000/7700 HM

Type of machine: Injection Molding Machine

item-No.: 7019746

Quantity: 0

Date: 19.03.2014

Year of manufacture: 1997

Location: Land-de Germany

Price:

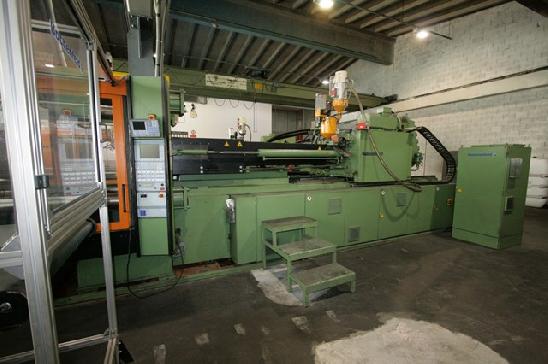

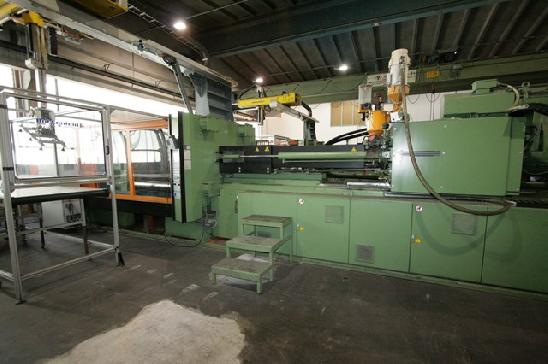

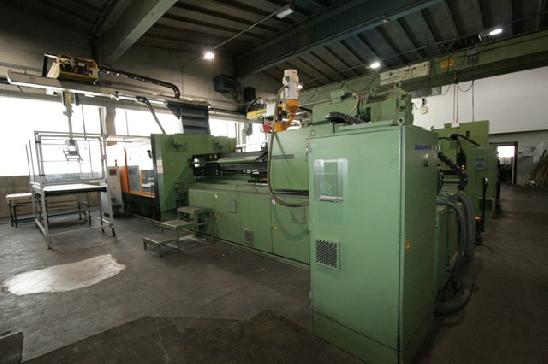

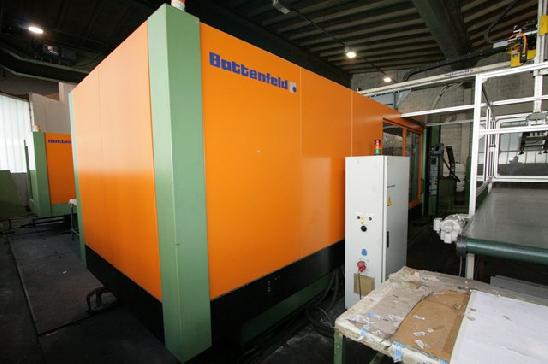

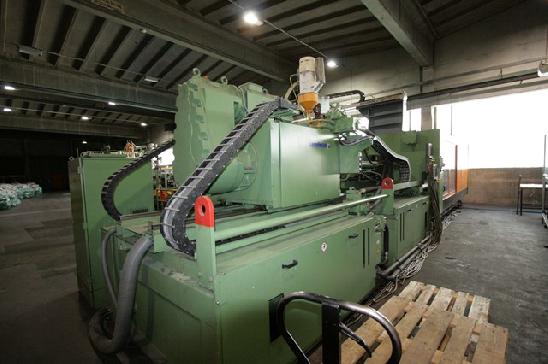

Battenfeld injection moulding machine

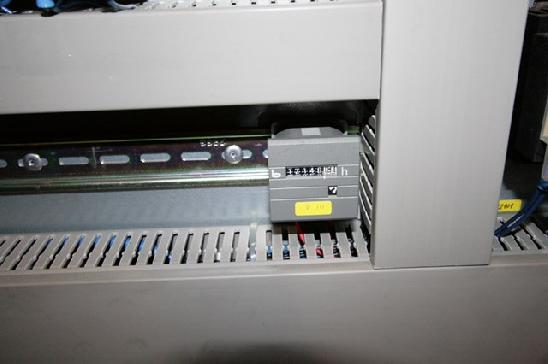

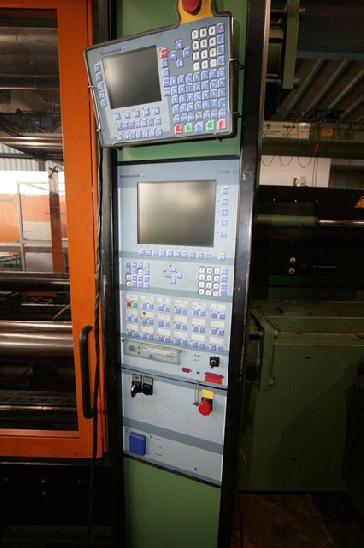

Type: BA 8000 / 7700 HM, 12146 h Runhour! Control: Unilog 9000 C year of manufacture: 1997
Clamping unit
Clamping force t
800 gap mm: 1250
Holm dimension mm:
1750 x 1530 min/max height mm: 500 / 950
Plate size:
1750 x 1530 injection unit
Screw diameter mm:
100 injection weight gr: 3574
Injection volume cm m³:
3927 spray pressure bar: 1960
Dimensions and weights
Machine weight kg:
42,000/14,500 other
Weight injection unit 14,500 kg dimensions (L x B x H) 6.00 x 1.72 x 2,20 m weight clamp unit 42,000 kg dimensions (L x B x H) 5.65 x 2, 80 x 3.36 m with Battenfeld robot
Share this machine on Facebook:

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

Battenfeld injection moulding machine
Type: BA 8000 / 7700 HM, 12146 h Runhour! Control: Unilog 9000 C year of manufacture: 1997
Clamping unit
Clamping force t
800 gap mm: 1250
Holm dimension mm:
1750 x 1530 min/max height mm: 500 / 950
Plate size:
1750 x 1530 injection unit
Screw diameter mm:
100 injection weight gr: 3574
Injection volume cm m³:
3927 spray pressure bar: 1960
Dimensions and weights
Machine weight kg:
42,000/14,500 other
Weight injection unit 14,500 kg dimensions (L x B x H) 6.00 x 1.72 x 2,20 m weight clamp unit 42,000 kg dimensions (L x B x H) 5.65 x 2, 80 x 3.36 m with Battenfeld robot
seller offer No. resale 7019746
