Injection Molding Machine BATTENFELD TM 1600/750

machines for plastic / injection moulding machines

Manufacturer: BATTENFELD

Model:TM 1600/750

Type of machine: Injection Molding Machine

item-No.: 5958066

Quantity: 0

Date: 19.03.2014

Year of manufacture: 2001

Location: Land-de Germany Deutschland

Price:

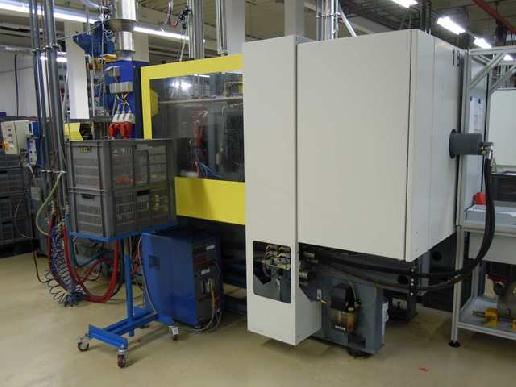

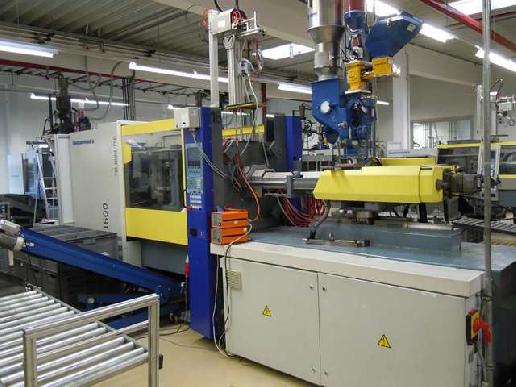

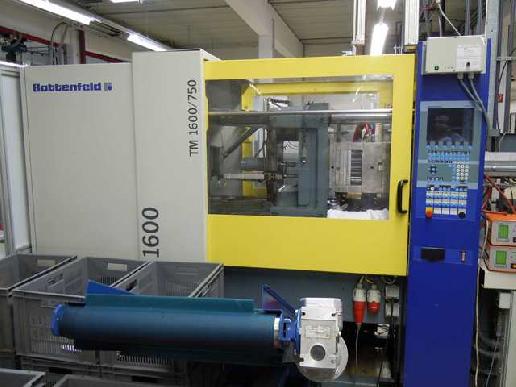

Battenfeld injection moulding machine
Type: TM 1600 / 750 control: B4 year: 2001
Clamping unit
Clamping force t
160 Gap mm: 480
Holm dimension mm:
520 x 520 min/max height mm: 225...-550
Plate size:
750 x 815 injection unit
Screw diameter mm:
Gr 40 injection weight: 258
Injection volume cm m³:
283 Spray pressure bar: 2678
Dimensions and weights
Dimensions Lxwxh m:
5.1 x 1.5 x 2.1 machine weight kg: 6000
Miscellaneous
B-4 control system interface
