Compressors BITZER 4TCS-8.2Y-40P (x2) & 4CES-6.F1

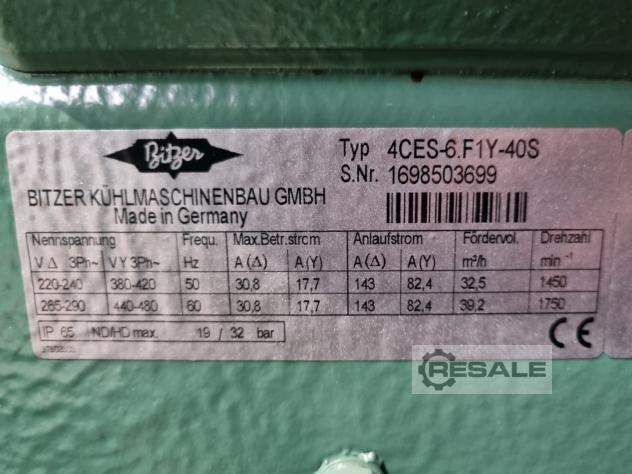

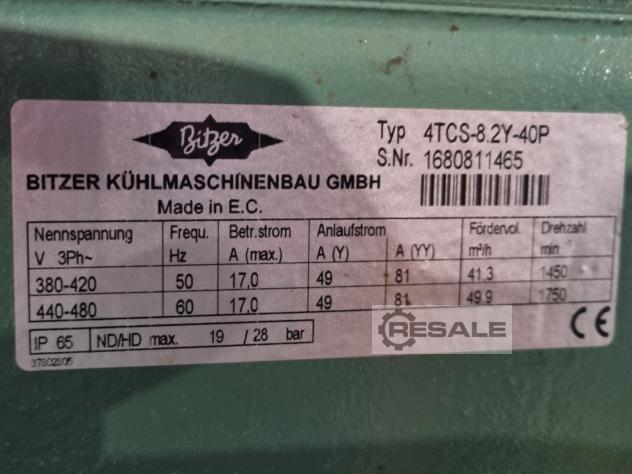

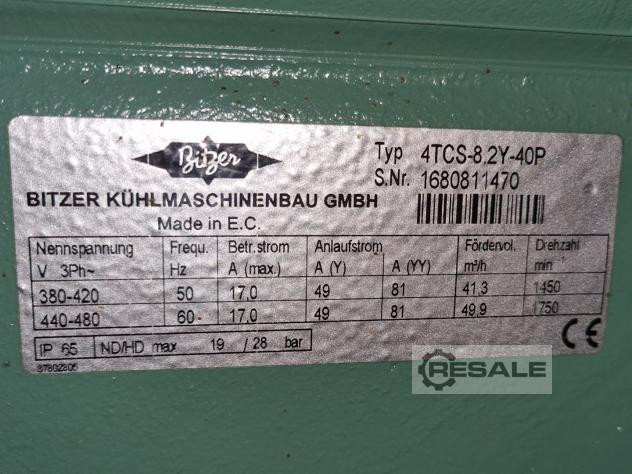

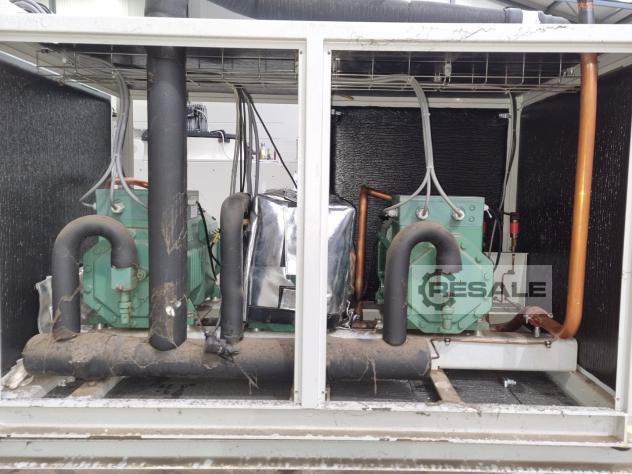

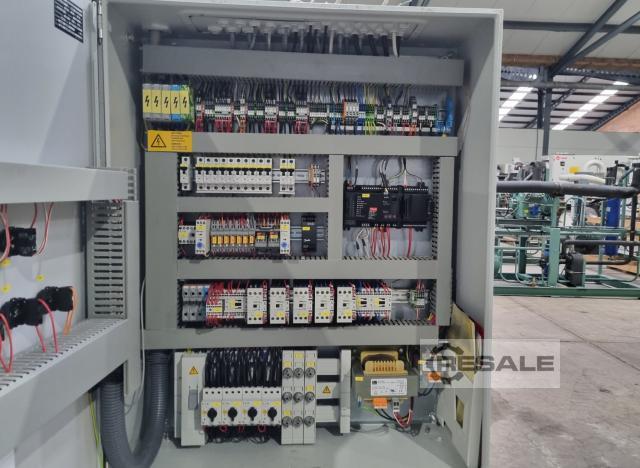

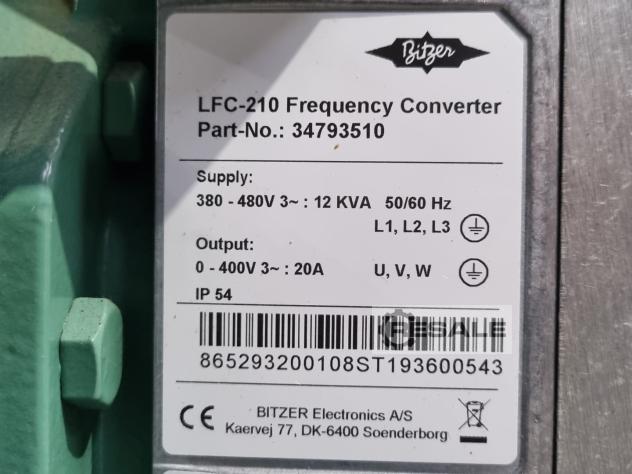

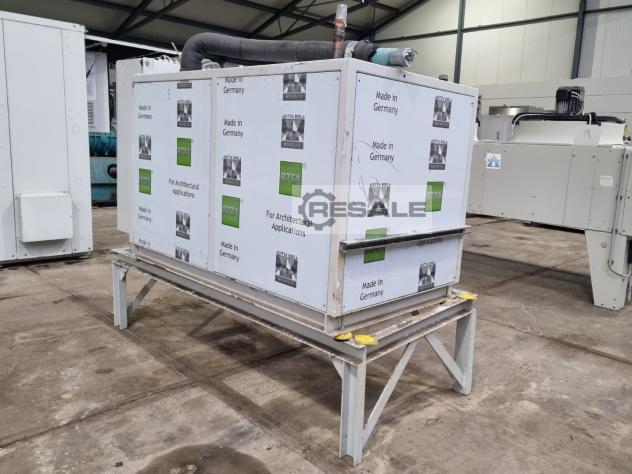

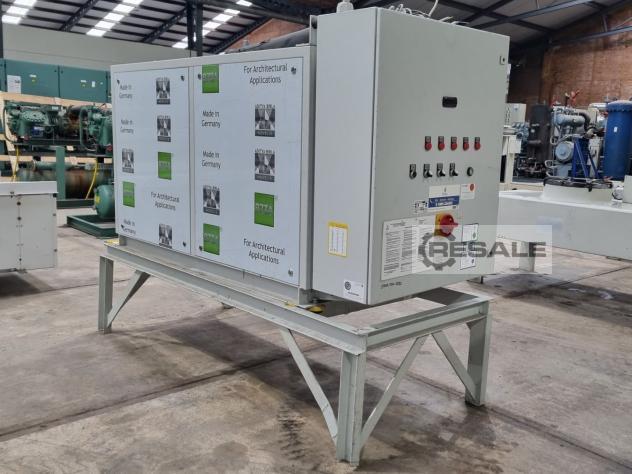

Used Bitzer 4TCS-8.2Y-40P (x2) & 4CES-6.F1-40S (x1) semi-hermetic reciprocating compressor rack on Freon. Complete with Bitzer LFC-210 frequency converter for the 4CES-6.F1-40S compressor, pressure and safety switch, condensing pressure switch and a control cabinet with a Danfoss controller. The compressors together have a displacement of 115,1 m³/h at 50 Hz and 139 m³/h at 60 Hz.

Specifications:
Refrigerant: Freon
kW at +10ºC/+40ºC: 86,8 kW
kW at 0ºC/+40ºC: 58,0 kW
kW at -5ºC/+40ºC: 46,6 kW
kW at -10ºC/+40ºC: 36,9 kW
kW at -20ºC/+40ºC: 21,9 kW
m³/h: 50 Hz - 115,1 m³/h & 60 Hz - 139,0 m³/h
Y.o.b. 2020 - SN: 1698503699
Y.o.b. 2011 - SN: 1680811465
Y.o.b. 2011 - SN: 1680811470
Sizes: 2000x880x1680 mm (LxWxH).
Amount in stock: 1
seller offer No. resale 16631
