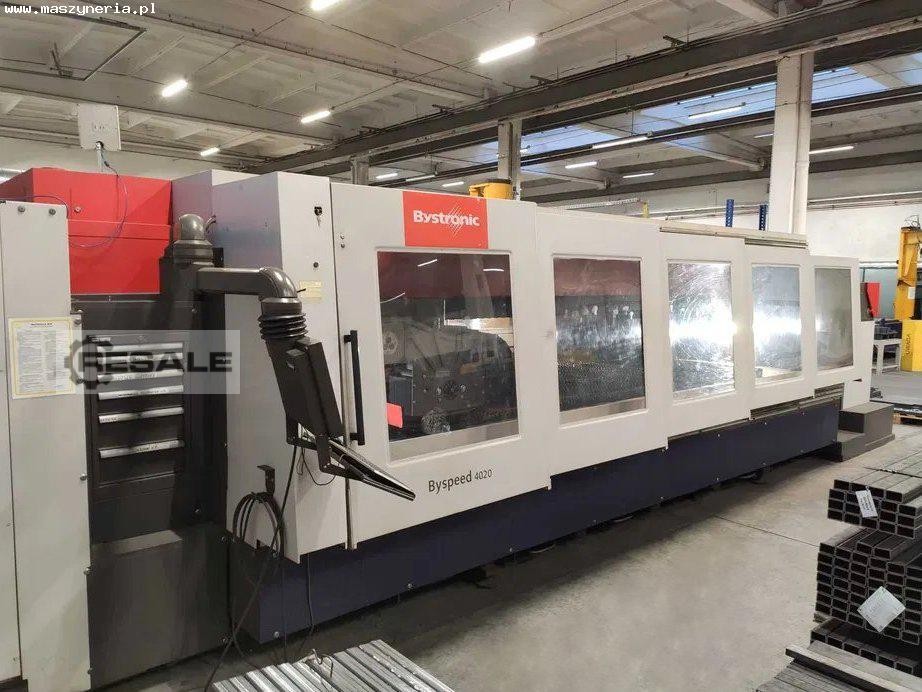

BYSTRONIC Byspeed 4020 laser cutting machine was built in 2007 by the
Swiss brand BYSTRONIC. The machine, designed to meet the highest
industrial standards, is used for precision cutting and engraving of
workpieces with a maximum thickness of 20 mm. The machining process is
performed by a stable laser beam with a maximum power of 4.4 kW, which
is generated by a reliable laser source of the highest energy
efficiency. In turn, the operator’s daily work is facilitated by an
intelligent CNC control with many useful functions. All this makes the
offered BYSTRONIC laser the perfect choice for any industrial
plant.
The last inspection of the machine was done in 2024. The Byspeed 4020
laser cutting machine weighs 19000 kg.
Technical specifications of the BYSTRONIC Byspeed 4020 laser cutting
machine
- CNC controller: BYSTRONIC ByVision
- laser power: 4.4 kW (4400 W)
- laser type: CO2
- wavelength: 10.6 μm
- laser beam diameter: 20 mm
- maximum workpiece thickness (plain steel): 20 mm
- maximum workpiece thickness (stainless steel): 12 mm
- maximum workpiece thickness (aluminium): 12 mm
- work table dimensions (L x W): 4000 x 2000 mm
- maximum workpiece weight: 160 kg/m2
- laser source: BYSTRONIC Bylaser 4400
- operating hours: 60900 h
- power: 52 kW
- power supply: 3x 400 V; 50 Hz
- space requirement (L x W): 10000 x 9500 mm
- laser source weight: 1760 kg
- weight of the BYSTRONIC Byspeed 4020 machine: 19000 kg
Poland
