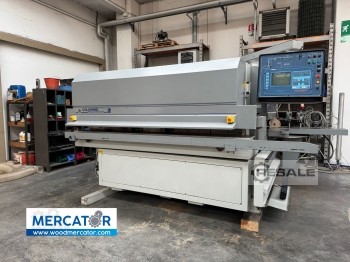

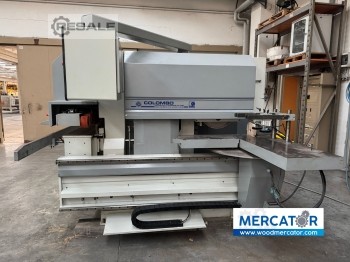

Angular systems for window production COLOMBO AM 33 / AF

wood working machines / window production machines / Angular systems for window production

Manufacturer: COLOMBO

Model:AM 33 / AF

Type of machine: Angular systems for window production

item-No.: 162720297

Quantity: 0

Date: 20.02.2025

Year of manufacture: 2002

Location: Land-it Italy 34071 Cormons

Price:


Your price suggestion:

Machine in stock:Yes

Seller-item-No.:C385

SPECIFICATIONS:

Machining length: max. 3000 mm - min. 250 mm
Processing thickness: min. 30 - max. 155 mm
Processing width: max. 200 mm

Tenon cutting area

01 Tenon cutting unit - max. Ø 400 mm - 3 kW
01 Spigot cutter - length 600 mm - 7.5 kW - shank Ø 50 mm - 3100 rpm

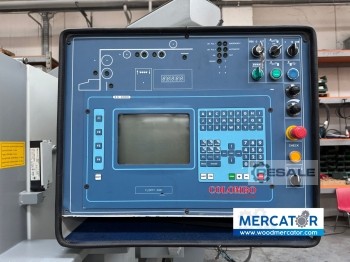

01 Electronic guidance

Roll forming area:

I Roll forming unit - length 600 - 7.5 kW - shank Ø 50 mm - 6000 rpm
II Roll forming unit - length 600 mm - 7.5 kW - shank Ø 50 mm - 6000 rpm
01 Glazing bead unit - Ø 200 mm - 2.2 kW
01 Rubber roller drive unit
Share this machine on Facebook:

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

SPECIFICATIONS:

Machining length: max. 3000 mm - min. 250 mm
Processing thickness: min. 30 - max. 155 mm
Processing width: max. 200 mm

Tenon cutting area

01 Tenon cutting unit - max. Ø 400 mm - 3 kW
01 Spigot cutter - length 600 mm - 7.5 kW - shank Ø 50 mm - 3100 rpm
01 Electronic guidance

Roll forming area:

I Roll forming unit - length 600 - 7.5 kW - shank Ø 50 mm - 6000 rpm
II Roll forming unit - length 600 mm - 7.5 kW - shank Ø 50 mm - 6000 rpm
01 Glazing bead unit - Ø 200 mm - 2.2 kW
01 Rubber roller drive unit
seller offer No. resale C385
