Radial Drilling Machines CSEPEL RFH 100/3000

metal working machines / boring mills and machining centers / Radial Drilling Machines

Manufacturer: CSEPEL

Model:RFH 100/3000

Type of machine: Radial Drilling Machines

item-No.: 153737083

Quantity: 0

Date: 19.09.2023

Year of manufacture: 1975

Location: Land-nl Netherlands 7327 Apeldoorn

Price:


Your price suggestion:

Machine in stock:Yes

Seller-item-No.:111263

Code 111263

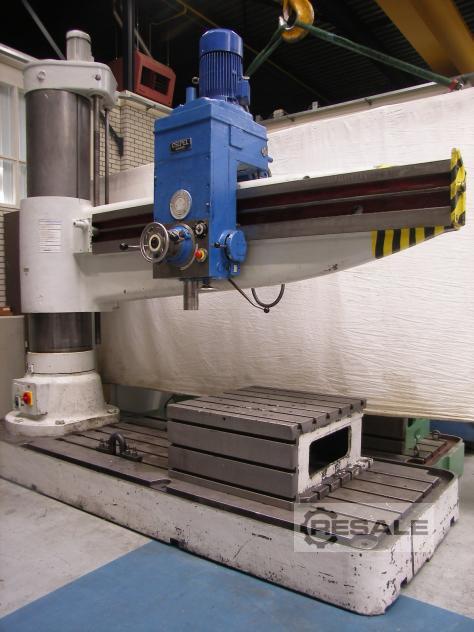

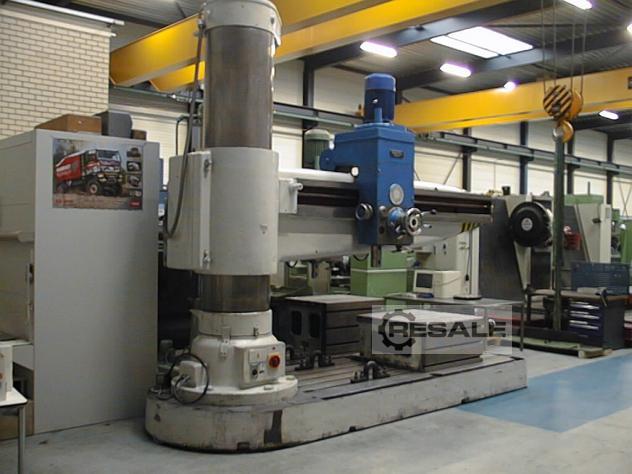

Description Radial drilling machine

Make CSEPEL

Model RFH 100 / 3000

Serial No. 73089

Year of make 1975


Drilling Cap. in St. 60 / cast iron 100 / 120 mm
Spindle taper 6 MK
Spindle radius 3500 mm
Min/max height spindle / top of base plate 440 – 2100 mm
Arm traverse 1260 mm
Spindle traverse 400 mm

Number of speeds 21 steps
Speed range 18 – 1800 rpm
Feed range 18 0,0375 – 2,0 mm/rev.

Working surface bed plate 3160 x 1550 mm


Motor 15 kW – 380 Volts
Total power 20 kVA

Dimension 4390 x 1550 x 4130 mm (L x W x H)

Weight of machine 14.000 kg

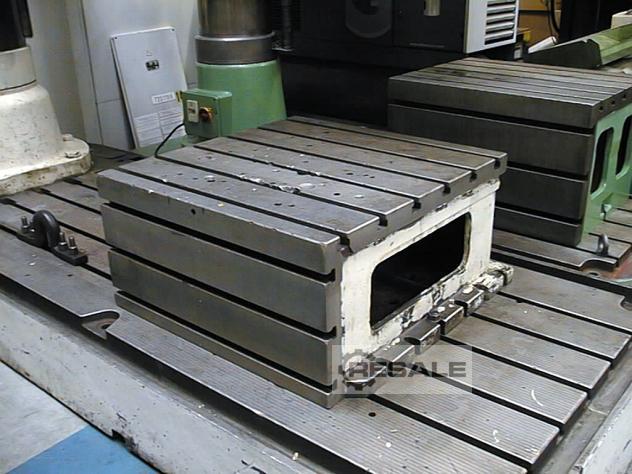

Accessoiries Box 1000 x 1000 x 500 mm
Automatic Clamping
Cooling


Condition Machine is in good condition
