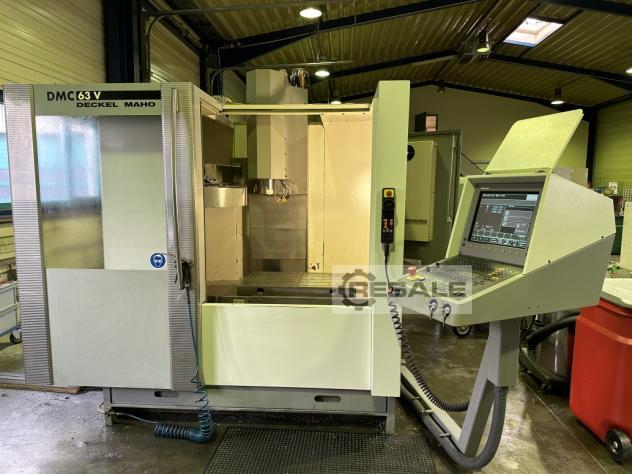

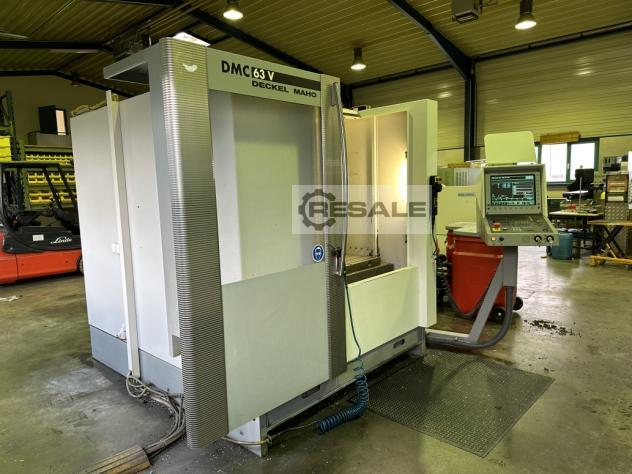

CNC Machining Center Vertical DECKEL-MAHO - DMC 63 V
Built in 2002 in good condition.

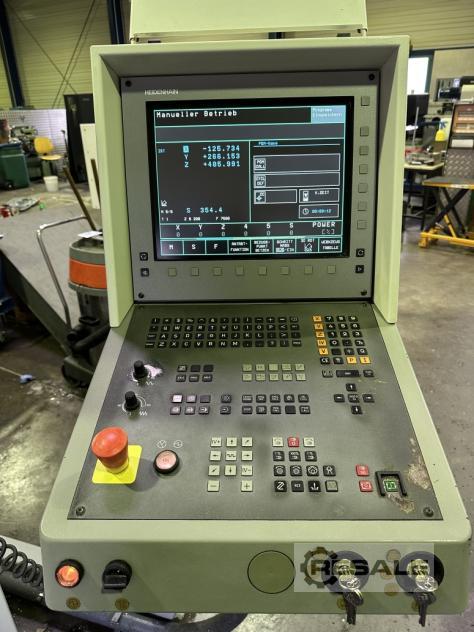

Control Heidenhain TNC 430 Heidenhain

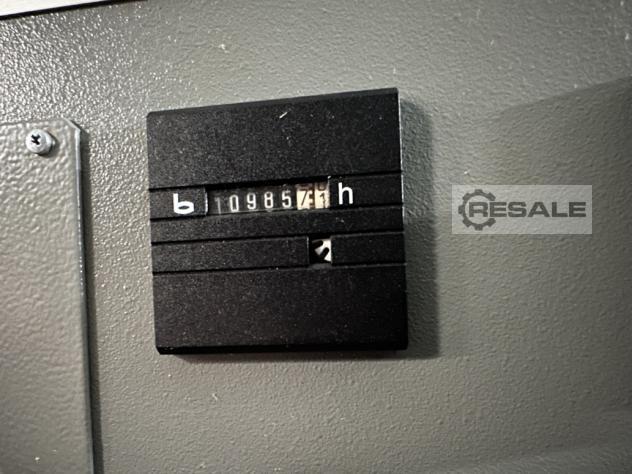

Hours: 10985
Specifications:

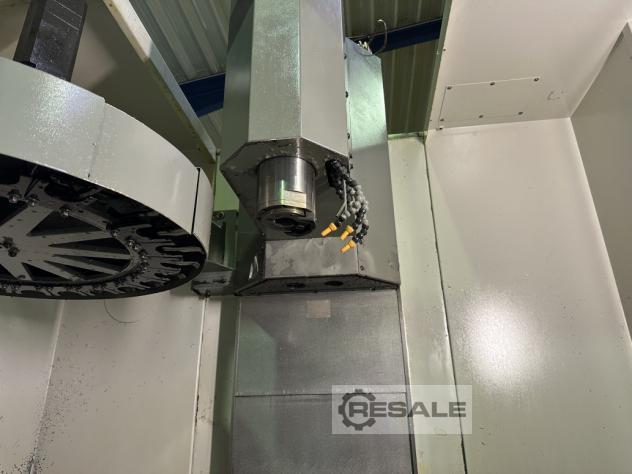

Main spindle
Speed range - main spindle 20 - 8,000 rpm
Drive power - main spindle 13 / 9 kW
Max. torque 83 / 57 Nm
Tool holder SK 40

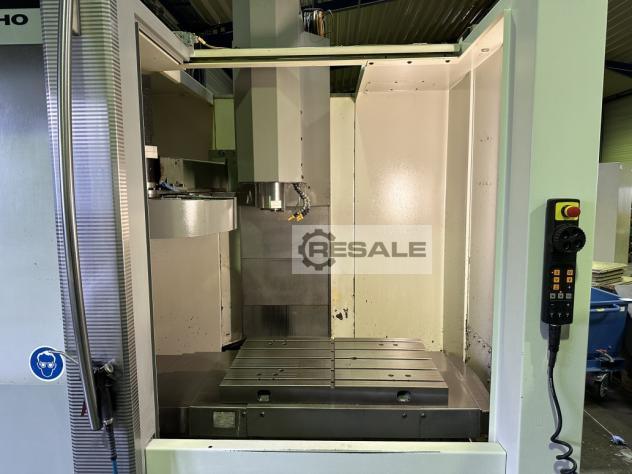

Workbench:
Table clamping surface 800 x 500 mm
max. table load 500 kg
Installation height max. 240 mm
Number of T-slots 5
T-slots - width 14 H12 mm
T-slots - spacing 100 mm
Distance between spindle nose and table 150 - 650 mm
Feeds
Feed rate X, Y, Z: 30,000 mm/min
Rapid traverse ( X / Y / Z ) 30 m/min
Tool changer:
Tool changer 24 pos.
max. tool diameter 80 mm
max. toolthrough. with a free neighbor's box. 140 mm
max. tool length 300 mm
max. tool weight 7 kg
Total power requirement 30 kVA
Machine weight approx. 4 t
Space requirement approx. 4.0 x 3.5 x 2.7 m
Accessories:
Documentation
Coolant system
electr. Handwheel
Germany
91555 Feuchtwangen
