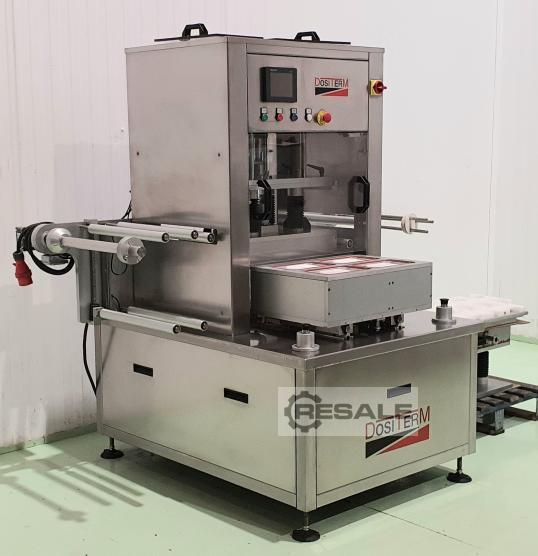

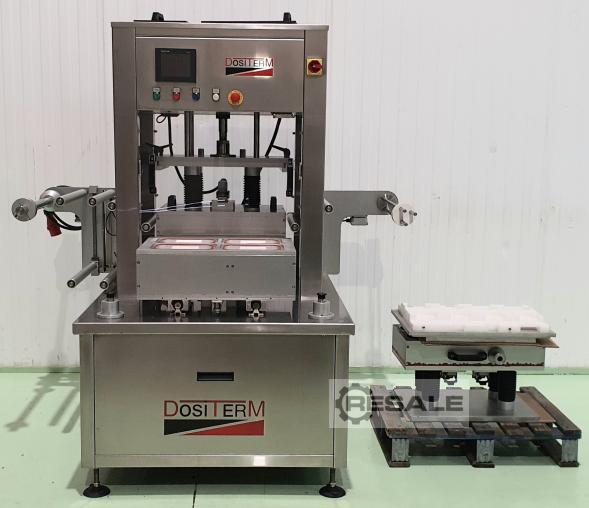

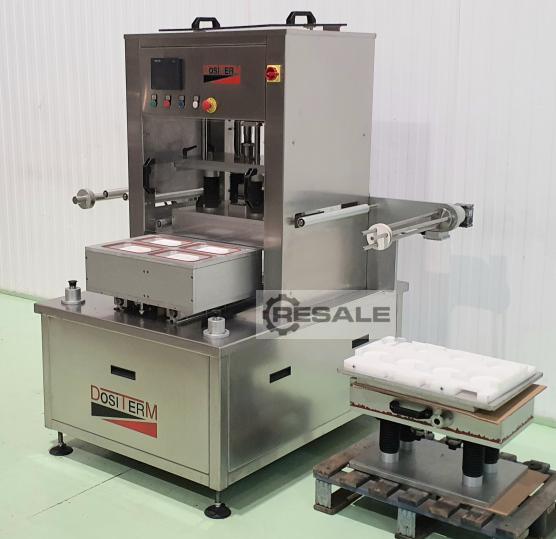

Semi-automatic traysealer from the manufacturer DOSITERM, model SEMI
V/G, ready for packaging with protective atmosphere, with vacuum or
only heat sealing.
Semi-automatic traysealer, works at cycles of 4 or 8 containers
depends mold, 5/8 cycles per minute, depends on the working
function.
Tray feeder by automatic trolley.
Output of the machine through the same input carriage.
The heat sealing machine performs a welding process from one
thermoplastic to another thermoplastic or other compatible material
using heat and pressure.
It is used to make a protective atmosphere by extracting oxygen from
inside the container and replacing it with an inert gas, or it only
performs the sealing action and can also be sealed with vacuum. The
machine is ready to plug in and work with.
External measurements (mm): Height: 1800, Length: 1720, Depth:
1400.
It has 2 molds to work.

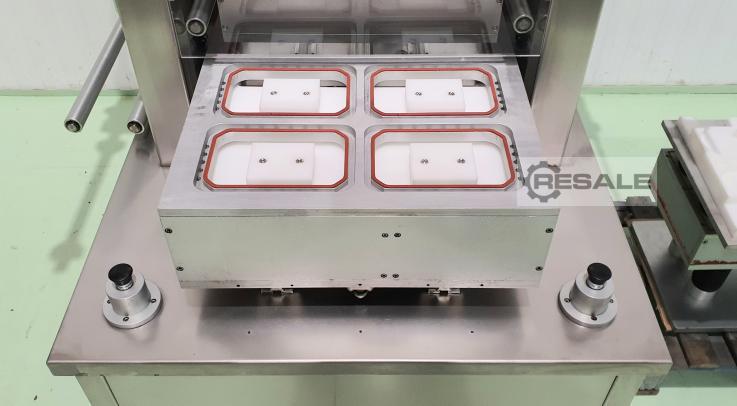

Rectangular tray stockings (mold 1): 230 mm x 150 mm x 100 mm high, 4
tray x cycle.

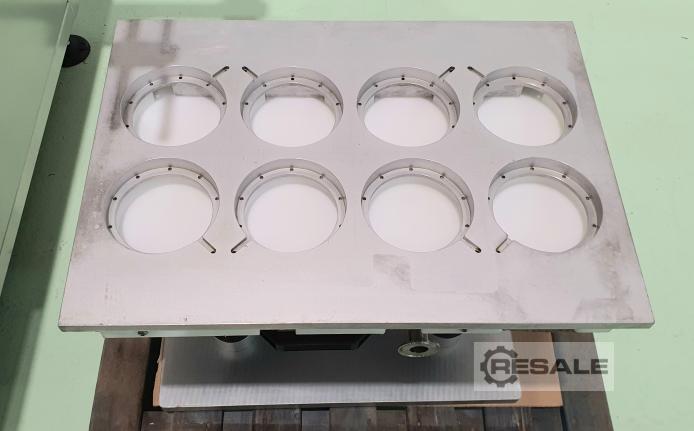

Circular tray stockings (mould 2): 120 mm outer diameter x 105 mm
inner x 100 mm high, 8 tray x cycle.
Operation: electric and pneumatic
Electrical voltage (V): 380 (3F+T+N)
Frequency: 50 Hz
Pneumatic pressure (bar 6 to 8).
Film collector included.
Inert gas intake included.
Characteristics:
Built in stainless steel
With touch screen digital controls.
