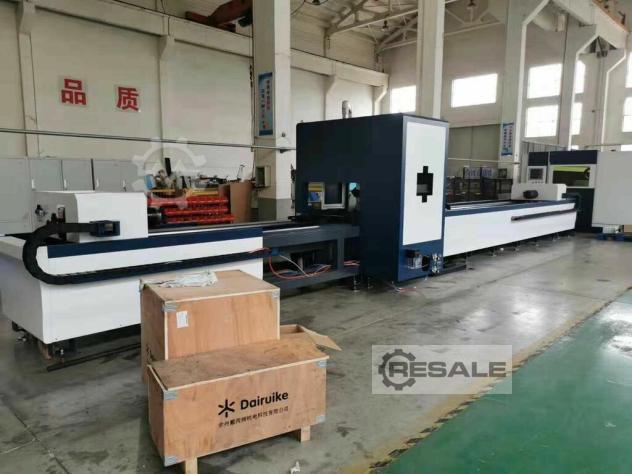

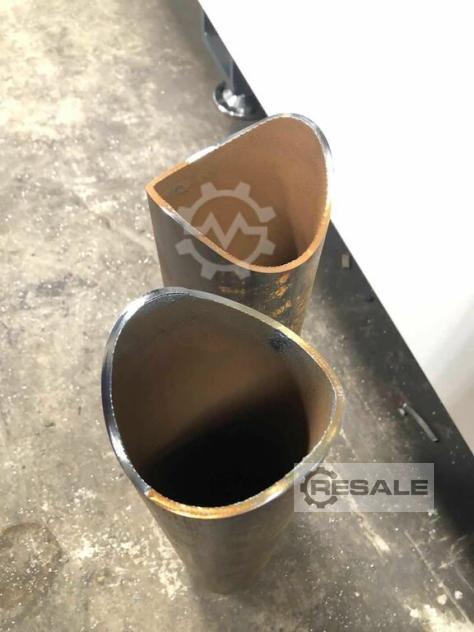

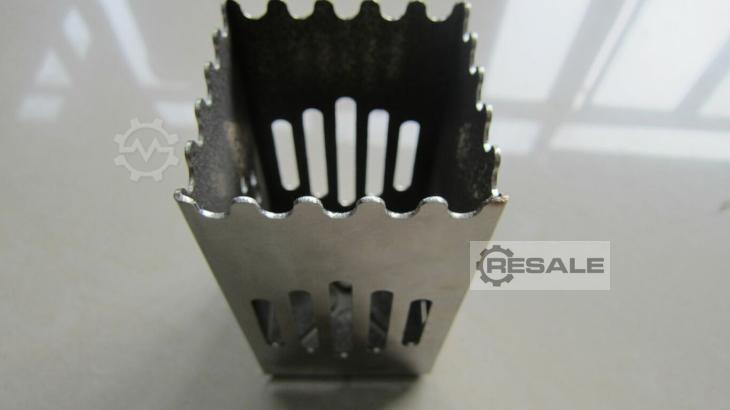

The DPL-6030/40/5 axis fiber laser system enables fully automatic
laser cutting of tubes with round, square and rectangular
cross-sections, as well as ovals Profilen.In the table lists the
maximum values. The system is characterized by excellent productivity
and precision, so that it does not even need to shy away from
comparison with other specialized tube processing systems in this work
area. Basic parameters (option according to customer requirements)
Machines Type DPL-6030/40/5 axes Laser shaft length 1070 nmLaser power
2000W IPG fiber laserConnected load 13.5 kWMax driven axes 4 - 7 ( 7
axis option )X./ Y axes Positioning accuracy ±0.08 X / Y axes
Repeatability ±0.04 X / Y axes Travel speed 80 m/minMax, cutting
speed 30 m/minMin. Cutting width 0.02-0.08 Max. cutting thickness at
2000W Steel: 6 mm , Stainless steel: 5 mm Cutting material stainless
steel, black steel St37 , titanium, aluminum and much more. Machine
weight 5000 KG Cutting diameter 20 - 220 mm Option 300 mm and
moreGraphic formats AI,PLT,DXF,BMP,DST,DWG,LAS,DXP Connection voltage
380V 50Hz/60Hz
