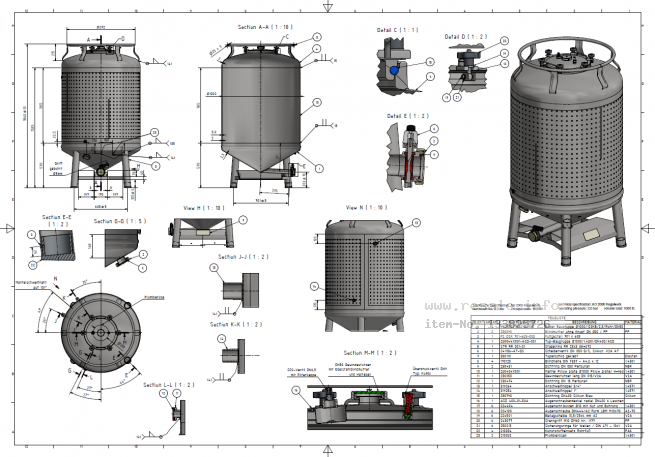

Eurolux Beer Tank/ Storage Tank/ Pressure Tank 1000 Litres
with cooling jacket in AISI 304,
working pressure: +2,0 bar
NEW
Pillow Plate
Inside
Operating pressure:: +3,0 bar +2,0
bar
Test pressure: +5,2 bar
+ 3,4 bar
Operation vacuum: -0,15 bar -
0,15 bar
Operation temperature: -10/+80°C
-10/+130°C
Material: V2A - AISI 304, 1.4301
Surface: pickled, passivated and neutralized
Upper Bottom: - strong stackable crown
- manhole lid round Ø 400 mm with 2 x handle
- 1 x thread connection DN 50 with blind cap
- 1 x overpressure valve
- 1 x CO² venting valve
- 6 x cap screws
Cylindrical Body: - with cooling jacket 843 mm
- connections for cooling jacket
on the back inlet 1/2, outlet 1/2
-with sample valve DN 15 (on
extra charge)

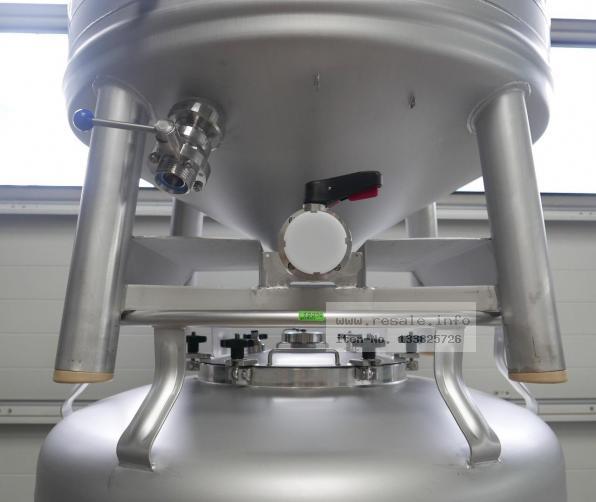

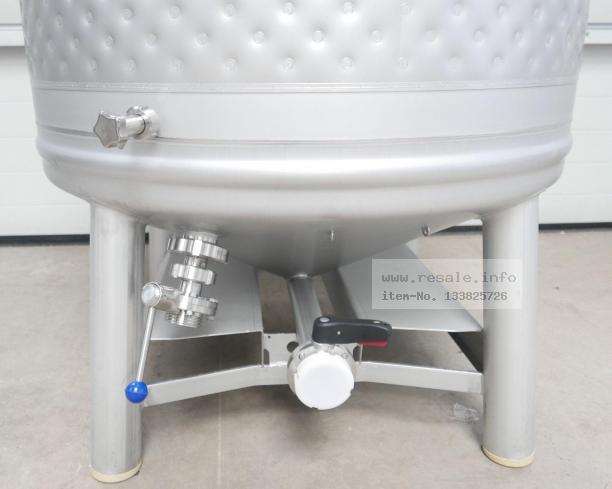

Lower Bottom: - pulled forward rest outlet with butterfly valve DN
50
- hygienic clear outlet with
thread connection DN 50 with pipe connection thread
with butterfly valve DN 32
(on extra charge)

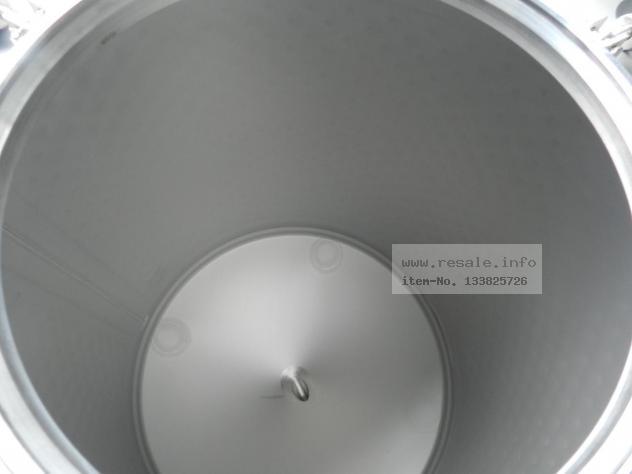

- conical bottom
- 4 strong feet
- can be moved from all sides with forklift / truck pallet
Measurements and Weight:
Total Height: 1840 mm
Height Tank Body: 1170 mm
Diameter: 1000 mm
Weight: 142 kg
