Storage Tank/ Pressure Tank/Beer tank 2400 liters in AISI 304 with
cooling jacket
Test pressure: 1,5 bar, Operating pressure: 0,99 bar
- NEW
Material: V2A – AISI 304 (1.4301)
Operating pressere: 0,99 bar
Surface inside IIIC
Operating temperature in °C: 130
Upper body:
Manhole lid round DN 400 with 6 screws
With 1 Thread connection DN 50 and with handle bar
With CO2-connection (extra charge)
With overpressure valve (extra charge)
Tank cylinder:
With cooling jacket
With connections for cooling jacket on the back inlet 1” AG, outlet
1¼”AG
With connection for sample valve DN 15 ( sample valve - extra
charge)
With connection for temperature indicator 3/8 (temperature indicator -
extra charge)

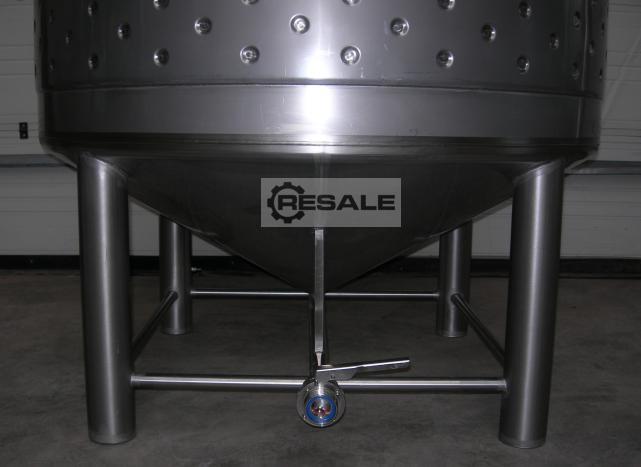

Lower bottom:
Rest outlet with butterfly valve DN 50 with conical bottom
On 4 stable feet
Easily movable with a manual lift truck or a pallet truck from all
sides
measurement and weight:
total height: 2500 mm
tank body height: 1600 mm
diameter: 1300 mm
weight: 226 kg
Germany
