ZKG tanks / storage tanks / tank / pressure tanks in V2A
with cooling jacket and insulation
Operating pressure: 3.0 bar test pressure: 4.0 bar
Capacity: 2,800 litres
NEW!
Surface:
inside and outside 2B = IIIC material: V2A (AISI 304) 1.4301

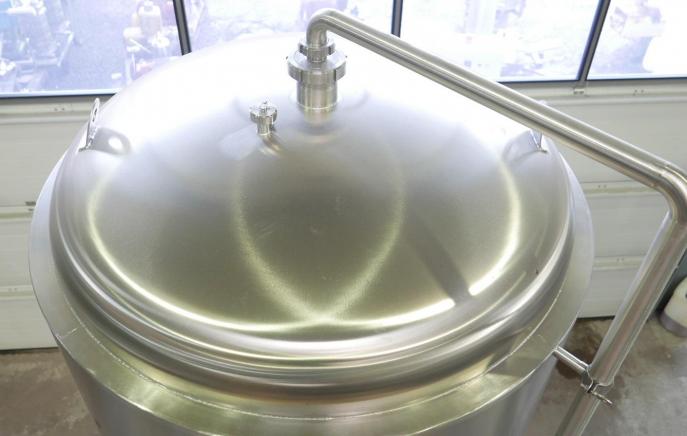

Top shelf:
â?¢ with 2 loops
â?¢ with threaded weld NW 25 â?¢ with CIP
cleaning NW 40 â?¢ with below drawn pipe DN 32 with
fermentation sheet pile valve (with pressure relief valve, with
pressure gauge)(gegen Aufpreis)
Tank cylinder:
â?¢ with wire hook up
â?¢ with manhole oval 430 x 330 mm, with handle
â?¢ with cooling jacket H = 750 mm and with insulation
â?¢ with test valve DN 15 with spiral in V2A (extra
charge)
â?¢ with Tauchschafthülse with temperature display (extra
charge)
â?¢ on the back of the tank 2 x connections for cooling
(input and output 1 ")
Subfloor:
â?¢ with drawn forward rest outlet with valve DN 40 (extra
charge)
â?¢ with clear trace drawn forward with valve DN 40 (extra
charge)
â?¢ with cone base 60 °
â?¢ with cooling jacket H = 750 mm and with insulation in
the bottom of the cone
â?¢ on the back of the cone bottom 2 x connections for
cooling (input and output 1 ")
â?¢ 4 dome feet, adjustable in height, with base plates
TÃ?V certificate for an additional fee

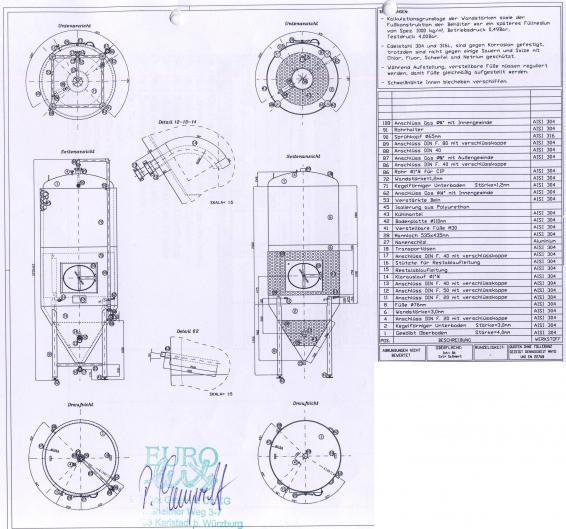

Dimensions and weight:
Total height: 3070 mm
Cyl. Height: 2030 mm diameter: 1300 mm weight: kg
