Storage Tanks / Pressure Tanks / Beer Tanks in V2A with cooling
jacket
Test pressure: 2,86 bar, Operating pressure: 2 bar
Volume: 1500 Litres
-NEW-
Measurment and Weight:
Total Height: 2609 mm
Cyl. Height: 1500 mm
Diameter: 1100 mm
Weight: 290 kg
Material:
V2A (AISI 304) 1.4301

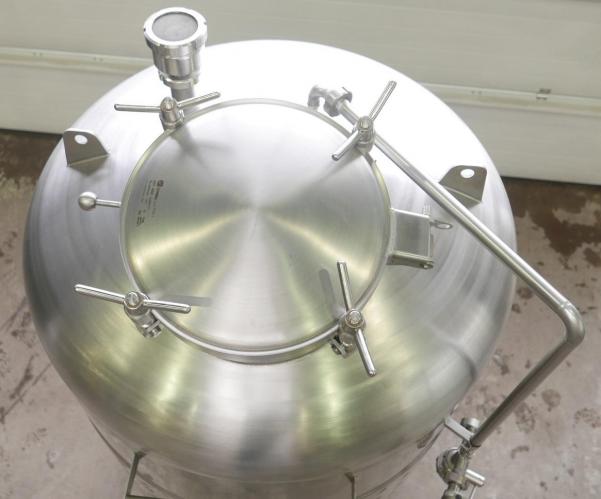

Upper bottom:
• with manhole Ø 400 mm with 4 x screw
• with 2 eyelets
• with ventilation system DN 50
• with CIP-cleaning
• with downward drawn filling pipe DN 32 with fermentation connector
with overpressure valve, with manometer (on extra charge)
Tank cylinder:
• with ladder hook up
• with cooling jacket h=1000 mm
• with sample valve DN 15 (on extra charge, with spiral in stainless
steel also available)
• with immersion socket for temperature indicator and temperature
indicator (on extra charge)
• on the back of the tank 2 x connections for cooling (input and
output, see drawing)

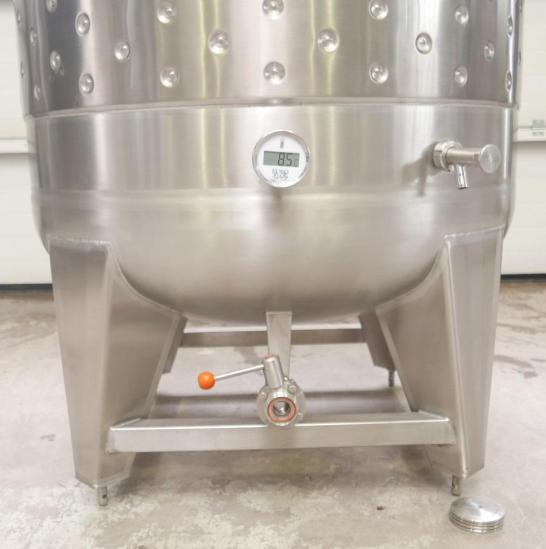

Underbody:
• with drawn forward residual outlet with butterfly valve DN 32
• 3 adjustable feet, height adjustable with foot plates
