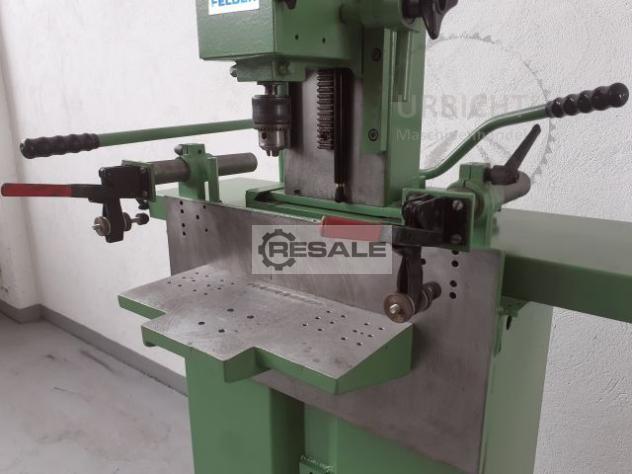

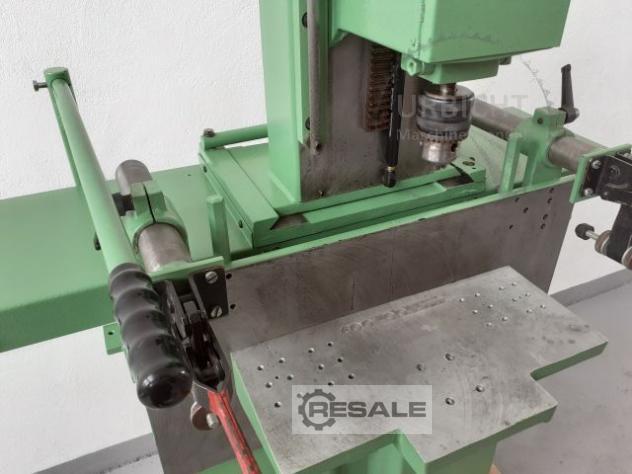

Felder Vertical Clamp (with mounted drill chuck)
Technical details:
- Table support dimensions: 400 x 160 mm

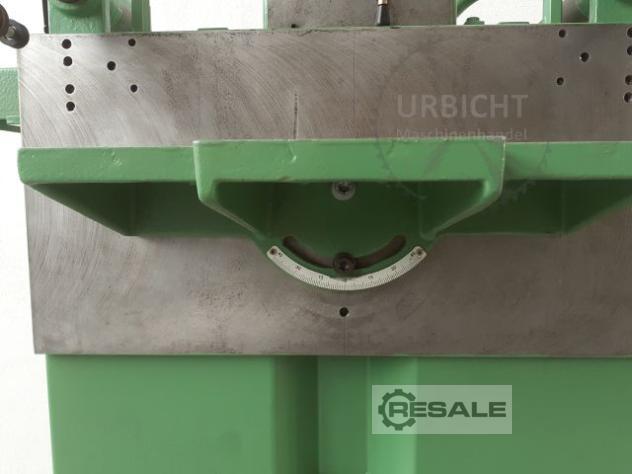

- Table support can be rotated on both sides up to 45° (with degree
scale)
- Table height: can be changed from 960 to 1,010 mm (screw
connection)
- Horizontal right-left adjustment range: 230 mm (115 mm in one
direction)
- Adjustment range of the unit horizontally forward-backward: 110
mm
- Max. drilling depth: 100 mm
- Supplied with mounted drill chuck 1/8 - 5/8 F3 - 16 LB 16 S3
- Max. chuck mount: 16 mm

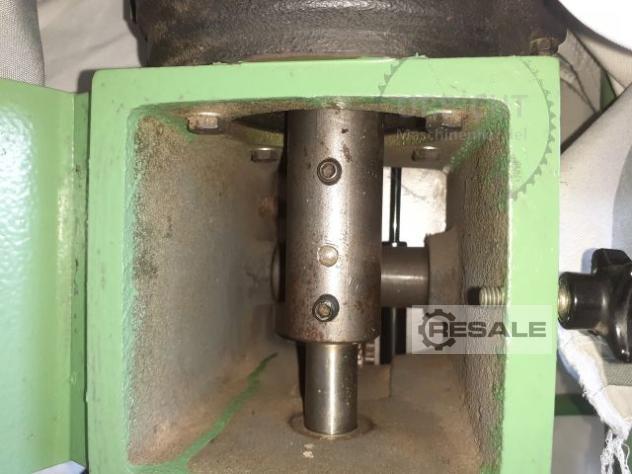

- Max. spindle diameter (tool holder): 19 mm
- 2 x quick-release device on the machine body
Engine data:
- Voltage: 380 V
- Current: 4.5 A
- Frequency: 50 Hz
- Power: 1.1 kW
- Speed: 2,850 rpm
Dimensions (DxWxH): 700 x 1,250 x 1,900 mm
Transport dimensions (DxWxH): 700 x 1,250 x 2,100 mm
The machine has been completely cleaned, overhauled and checked for
correct functioning.
Among other things, the machine was given a new coat of paint and a
new gas pressure damper was installed for the vertical adjustment of
the unit.
A three-phase cable with a 16 A socket is required for operation. (Not
included!)
Of course, shipping is possible.
Shipping is subject to freight and packaging costs, depending on size
and weight.
(Subject to changes and errors regarding technical data and prices!)
In accordance with our terms and conditions, we would like to point
out once again that cheques and bills of exchange cannot be
accepted.
