Universal Turning Machines (Lathes) GEMA LZ 160

metal working machines / lathes / Universal Turning Machines (Lathes)

Manufacturer: GEMA

Model:LZ 160

Type of machine: Universal Turning Machines (Lathes)

item-No.: 161834982

Quantity: 0

Date: 28.09.2023

Year of manufacture:

Location: Land-fr France 68190 Ensisheim

Price:


Machine in stock:Yes

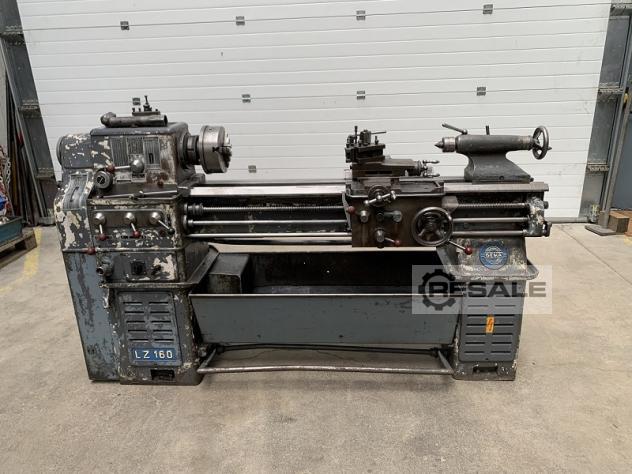

Parallel Lathe GEMA LZ 160
Between points: 1000 mm
Maxi Ø on bench: 310 mm
Maxi Ø over saddle: 180 mm

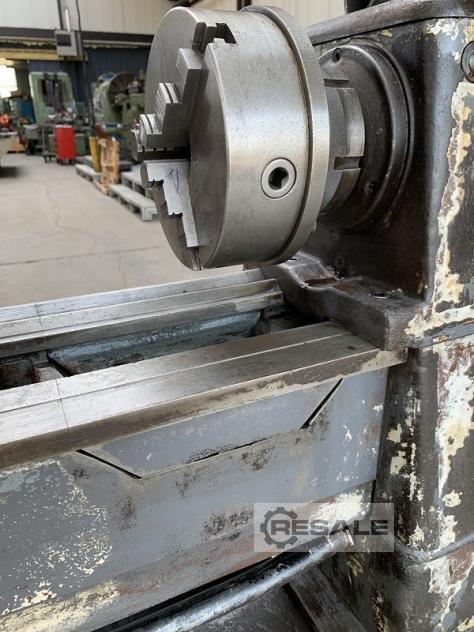

Maxi diameter in brocken bed: Ø 420 mm x Length 200 mm
Spindle diameterØ 44 mm
Spindle speed: from 48 to 1500 RPM

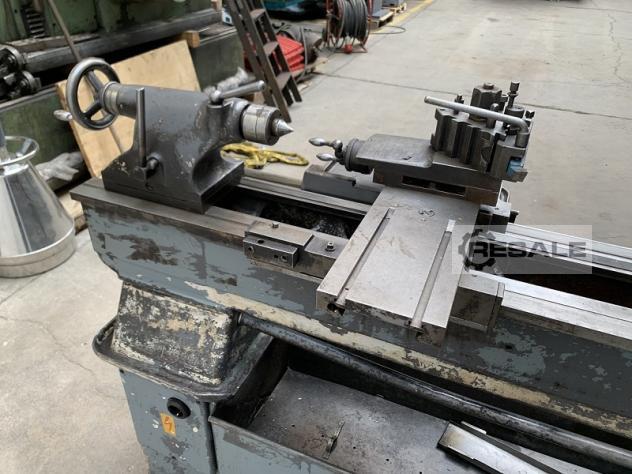

TRIPAN Turret
Supplied with 2 tool holders
3-jaws chuck Ø 200 mm

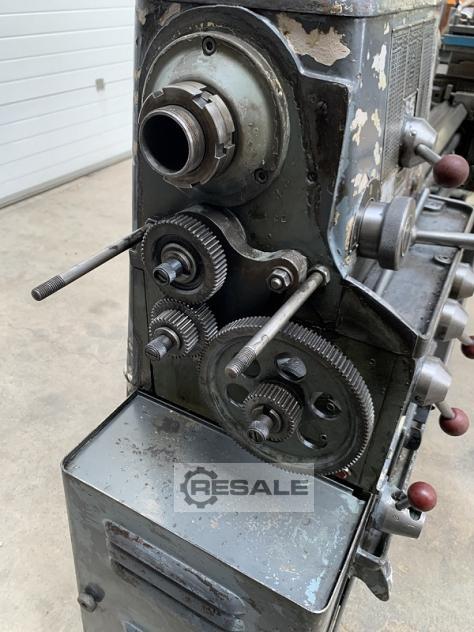

Threadings: Metric + Whitworth
Tailstock: CM3
Auto feeds longitudinal + transversal
Lubricant pump
Voltage: 380 V
Dimensions (L x W x H): 2100 x 800 x 1300 mm
Weight: approx 1,3 T
