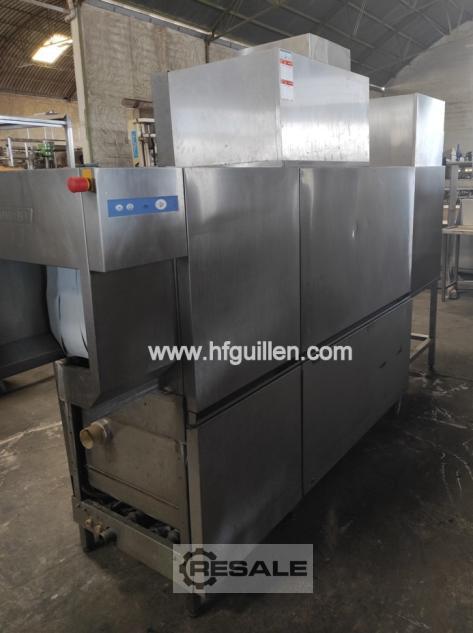

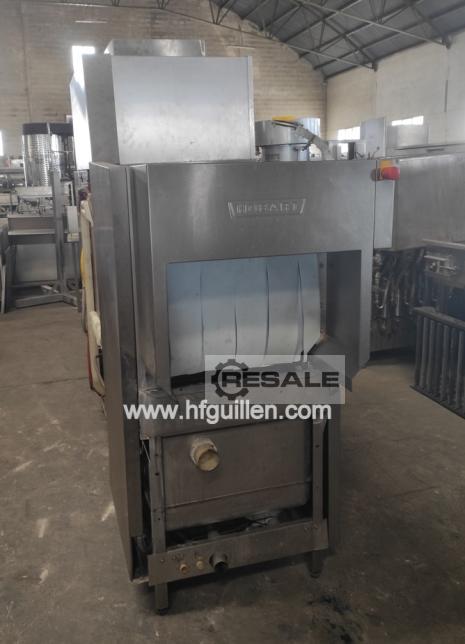

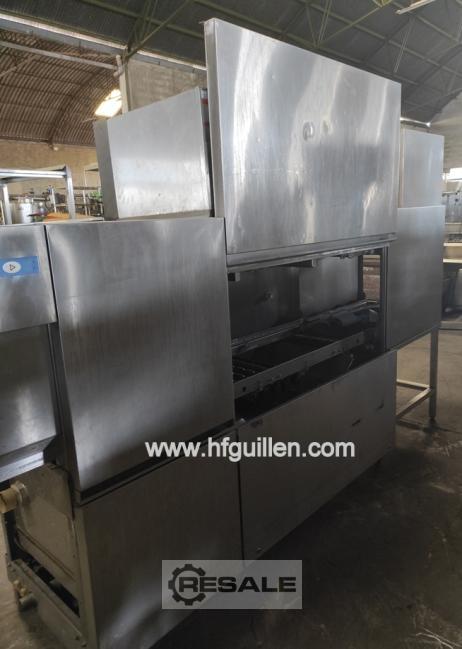

REF-2368 HOBART CNA-L CONVEYOR RACK-TYPE DISHWASHER
Conveyorized rack-type dishwasher.
Manufacturer: HOBART.

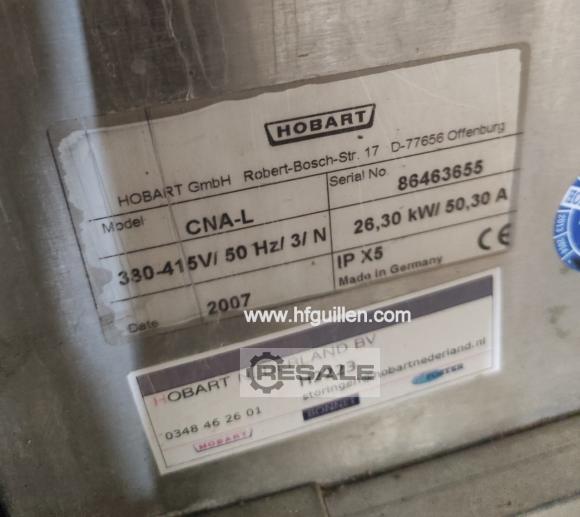

Model: CNA-L.
Serial no.: 86463655.
Year: 2007.
26.30 kW/50.30 A.
380-415 V/50 Hz/3-phase.
Throughput: 180 racks/3,240 plates per hour (120 racks according to
DIN 10510).

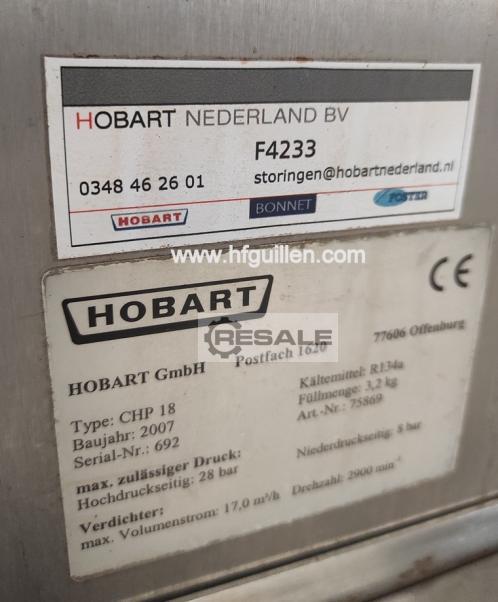

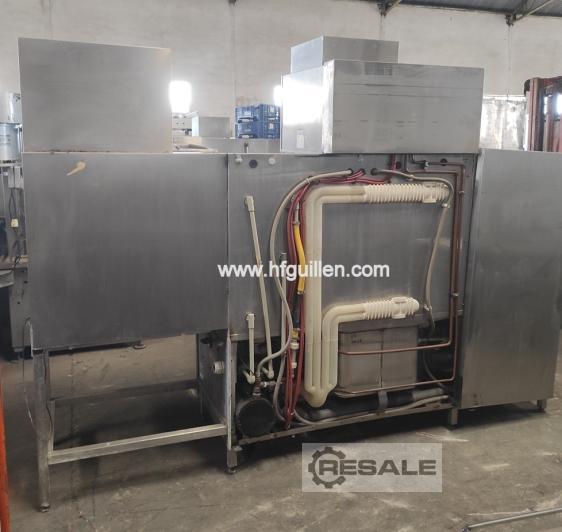

Complete with HOBART heat pump.
Pump model: CHP 18.
Serial no.: 692.
Year: 2007.
Refrigerant type: R134a (capacity 3.2 kg).
Maximum pressure: high side 28 bar; low side 8 bar.
Compressor: maximum flow rate 17 m3/h; 2,900 rpm.
Inside dimensions: width 510 mm, height 460 mm.
Overall dimensions: length 3,200 mm, width 800 mm, height 2,150 mm.
With large” high-performance pre-wash zone, as well as washing,
rinsing and drying zones.
Made of high-grade stainless steel.
SMARTRONIC electronic control.
Including 2 speeds, emergency stop and main switch.
Efficient dual-rinse system.
In-built autotimer that switches the system off automatically when no
racks are detected.
Machine drain system activated at the touch of a button.
Continuous water filtering by means of sloping filters covering the
pre-wash and wash tanks.

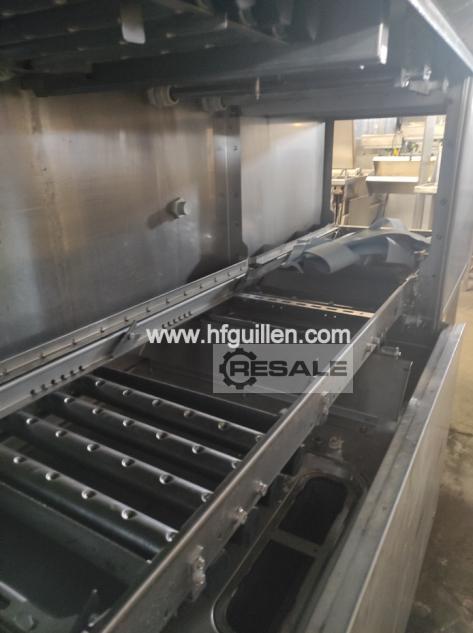

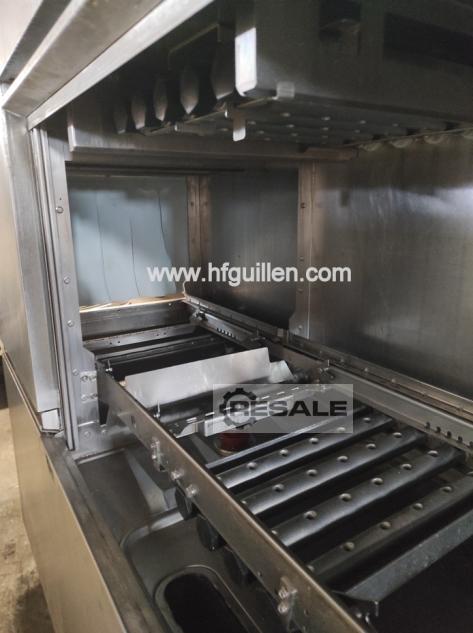

Complete access to the wash chamber.
CE marking.
Conforming to DIN 10510 washing standard.
Spain
30600 Murcia
