Ref.-No. 00624
Designation of the system of double-track timing belt conveyor with
needle prederer
Manufacturer Hydroautomation
Model custom made needle engraving device suitable for rectangular
pipes

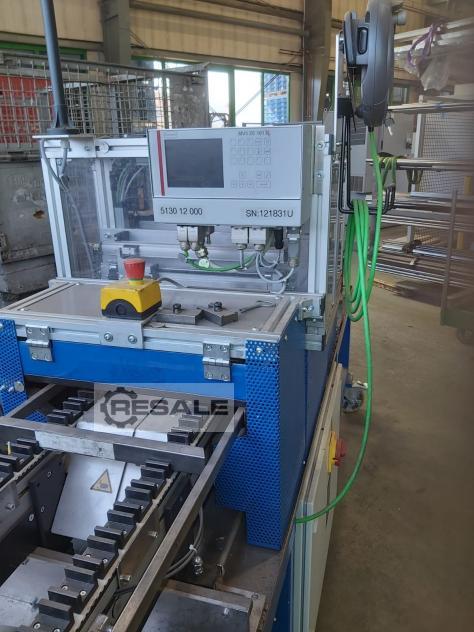

Built-in Markator Engraving Device
Built 06/2017
In a conveyor belt, the following components are to be labelled with
a needle preder from the company Markator. Before labeling, the part
length is checked using an analog scale. Nio tested components are not
labeled and must be removed manually
Tubes ⃣ 35x20x1,25mm
35x25x1.25mm
Length of pipes 380 ... 410mm
Clock Approx. 12 seconds / tube
Labeling time about 8 seconds / pipe
Transport height 900x1050mm
Conveyor length Ca 2500mm (approx. 45 components)

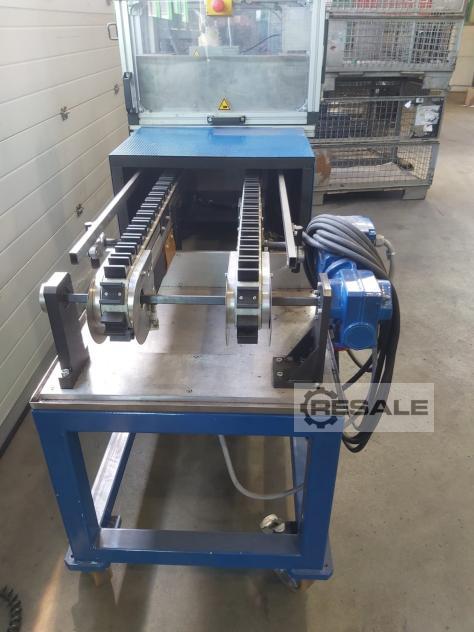

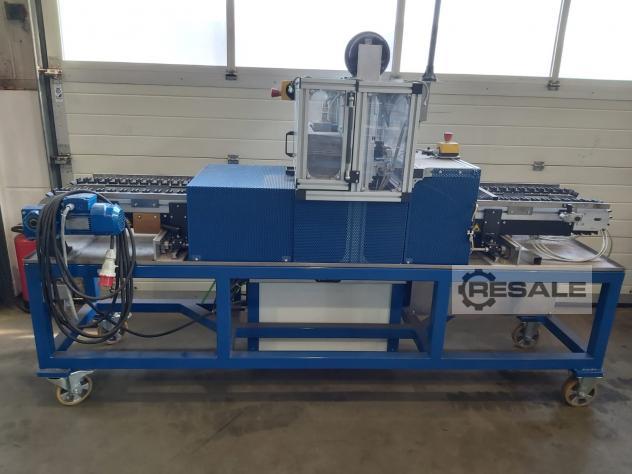

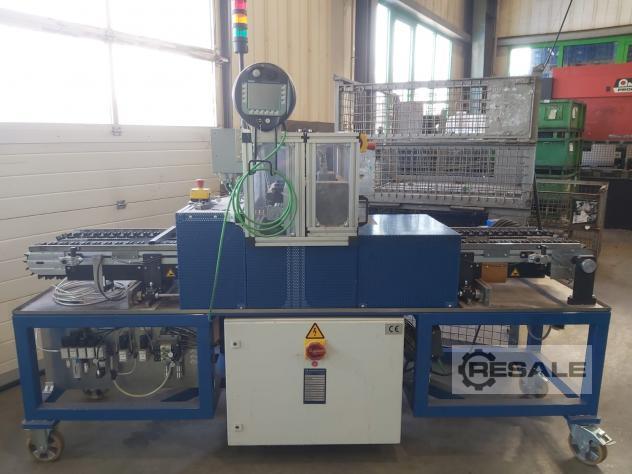

Double-track timing belt conveyor with length test and marking
station
Length testing
Labelling station Pneumatic lifter
Manual adjustment

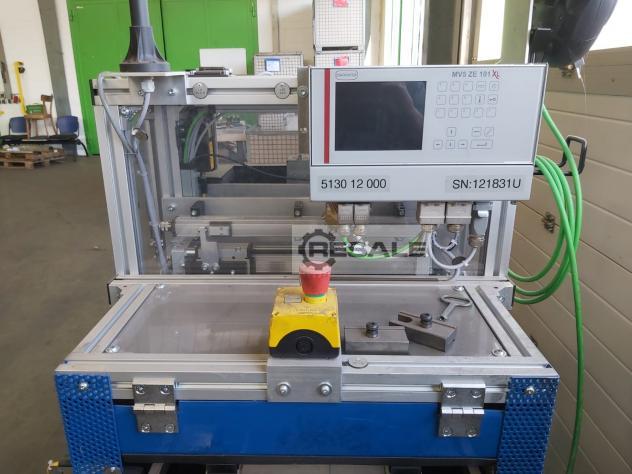

Needle-pregnating company Markator

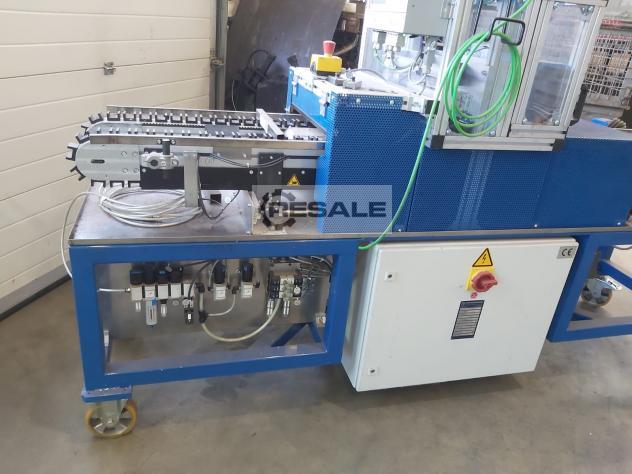

Pneumatics
Electrics
Software programming language FUP with Graph 7
Manual operation
Automatic
Germany
