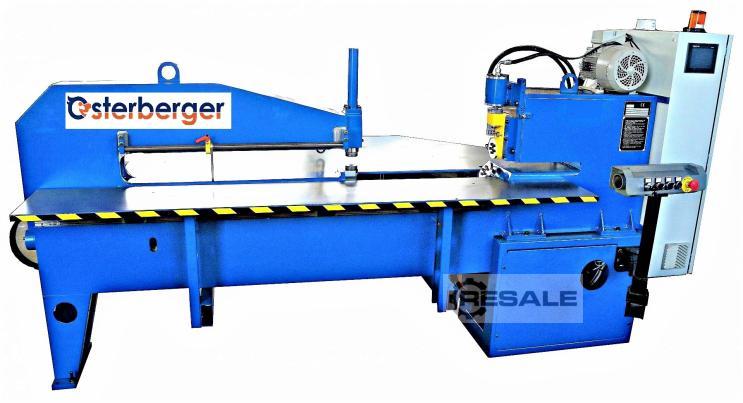

Circular Shears KRF 5/1800

High-quality, PLC-controlled circular shears / circular, blank and flange ring shears with punching device
used - refurbished

PLC – Control for 120 cutting programs with 30 program sets each
Projection in tailstock 1,000 mm
Automatic tailstock clamping
Outreach in the shear station 400 mm
Shear performance
0.5 to 5 mm sheet steel 400 N/mm²
0.5 to 3 mm stainless steel sheet 650 N/mm²
Largest shearable disc diameter
Ø 1,400 mm for rectangular starting material
Ø 1,800 mm for octagonal starting material
Smallest shear diameter 150 mm
Diameter Ø shear knife 100 mm
Shear rate up to 35 m/min
punching diameter
at S = 2 mm sheet steel 400 N/mm² - Ø 25 mm
at S = 3 mm sheet steel 400 N/mm² - Ø 17 mm
Drive power 7 KW
Weight 1.300 kg
Dimensions 2.7 x 1.8 m x H 1.7 m

Optionally available with a flanging device –
Maximum board height 20 mm
Largest on-board radius 16 mm
