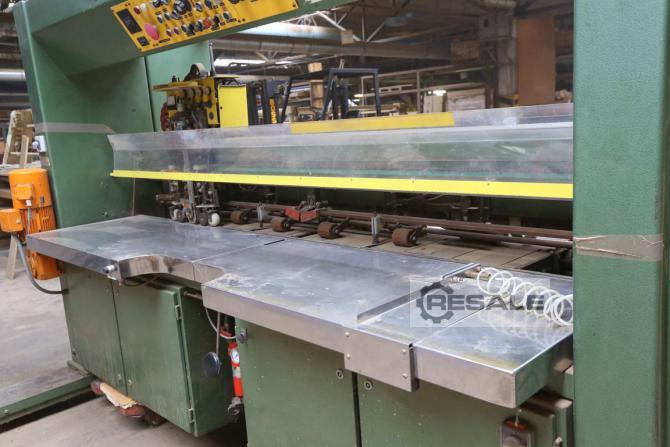

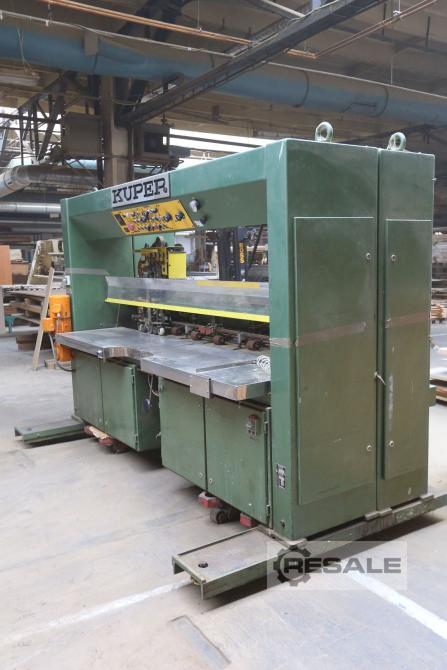

Veneer adhesive machines KUPER FWO 1800

Manufacturer: KUPER
Type: FWQ 1800

Techical data of the overall machine:

Overall dimension: 3150 x 1750 x 2100 mm (height)
Max. working width in grain direction: 1900 mm
Min. working width in grain direction: approx. 550 mm
Veneer strip width across the grain: from approx. 65 mm
Veneer thickness: approx. 0,4 - 2,5 mm
Working speed of transport aggretate 2 settings: approx. 40 or 75 m/min.
Infeed speed of transport belt: approx. 25 m/min
Working height taken from floor: 900 mm
Operating voltage, standard: 380 V, 3 Ph, 50 cycles
Total connection value, incl. stacker: approx. 8 kW
Power consumption, effective: approx. 2 kW
Air pressure connection: 7 - 14 bar
Operating power: 7 bar

seller offer No. resale 3336
