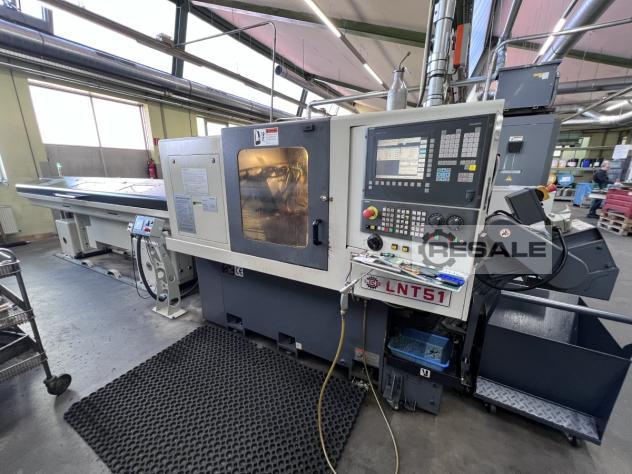

Turning Machines (Lathes) LICO LNT 51S

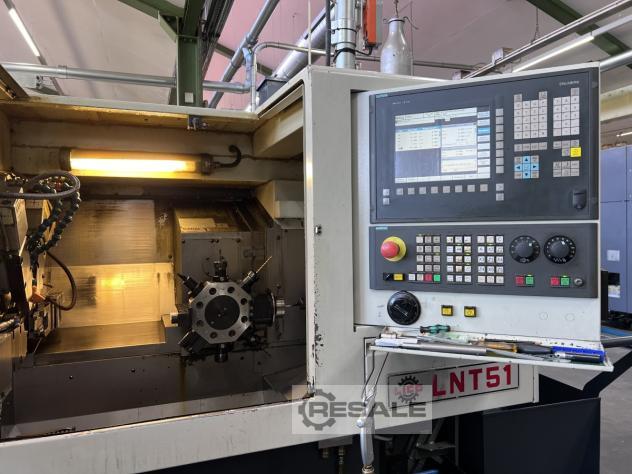

Control Siemens 840D
Spindle Passage [mm] 51

Spindle:
Belt spindle technology
Speed 4,500 rpm

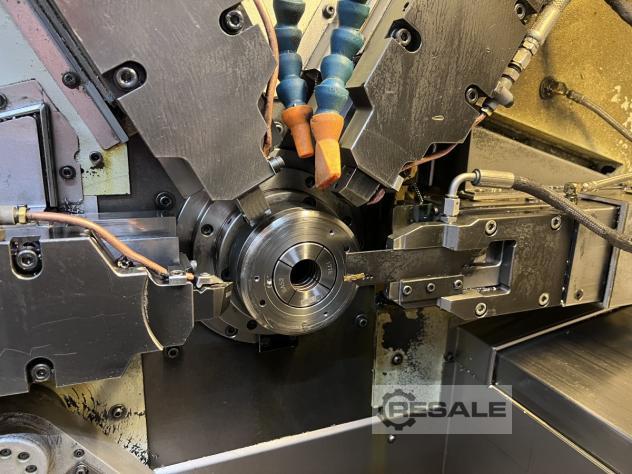

Workpiece Clamping Collet Chuck, Type 177E

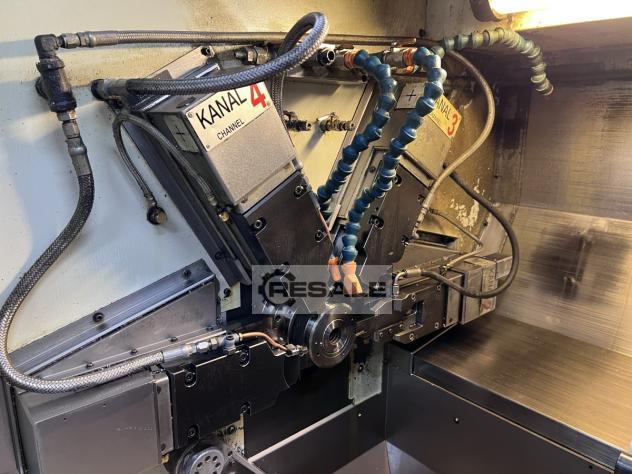

Tool carrier I (XZ):
Technology cross slide, 4 pcs.
Travel in X/Z 70/115 mm
Tool holder for turning steels

Tool carrier II (X/Z):

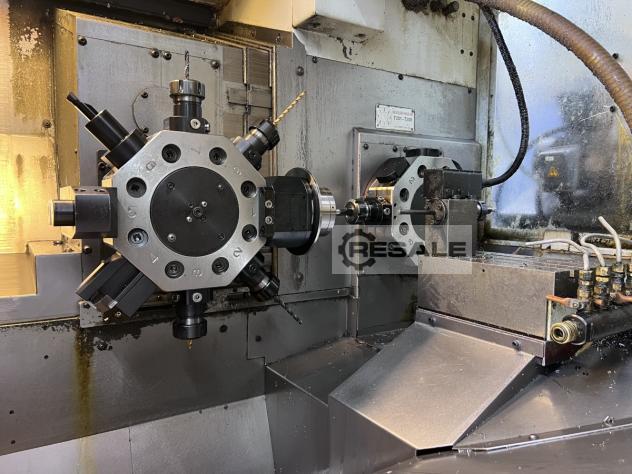

Technology Turret with 7 stations and pick-up spindle
Tool holder VDI30
Tool drive 3,000 rpm
Workpiece Clamping Gripping Spindle Collet Chuck
Travel in X/Z 160/500 mm
Tool carrier III:
Technology Turret with 8 stations
Tool holder VDI30

Equipment/accessories:
Chip Management Chip Conveyor
Coolant management IKZ system with temperature control and high pressure, 50 bar
Raw material feed loading magazine, Top Automatzioni FU350
Precast Removal Drip Tray with Conveyor Belt
Oil mist extraction interface mechanically prepared
Setup operation Electronic handwheel

seller offer No. resale 89-001441
