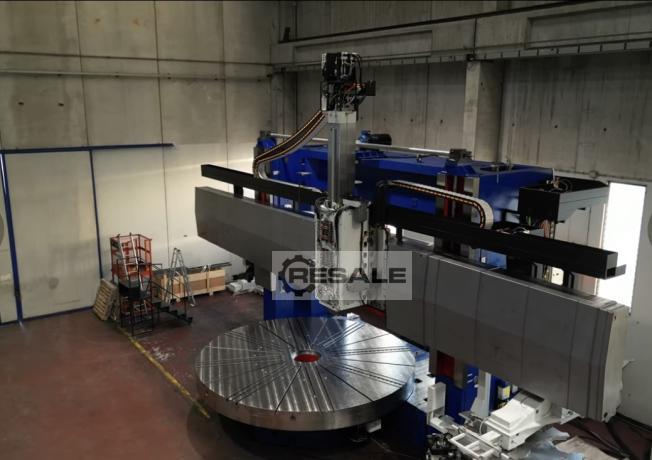

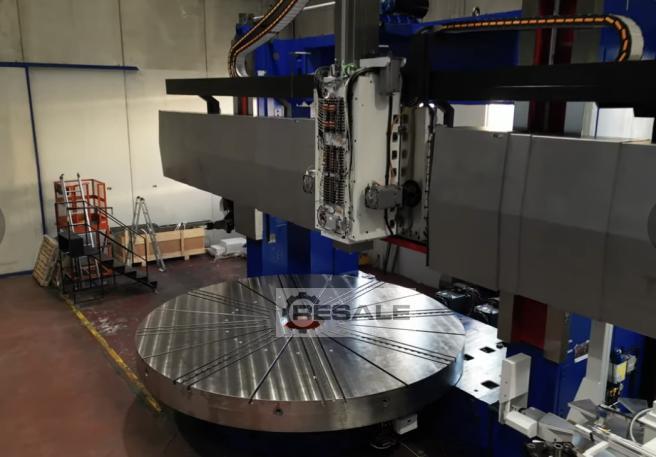

Mario Carnaghi CNC Vertical Boring Mill
FEATURES:
Siemens 840DE SL CNC Control
12-Position Automatic Tool & Attachment Changer
40-Station Automatic Tool Magazine
Hydrostatic Table
Vertical Ram with Milling Spindle
Vertical Milling & Drilling Attachment
Right Angle Milling Attachment
Universal Milling Attachment
Through Spindle Coolant & Flood Coolant
Dual Dive 108 HP (81 KW) Table Motors
High Resolution Heidenhain Scales & Encoder
Renishaw RMP 60 Probe
Renishaw NC-4 Milling Tool Probe
Full Machine & Operator Enclosure
Chip Conveyor
CAPACITY:

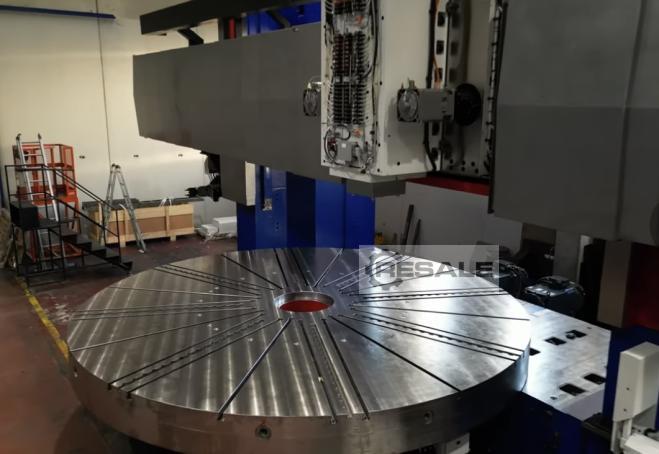

Table Diameter 196.85 (5000mm)
Turning Diameter .. 236.22 (6000mm)
Maximum Turning Height 98.42 (2500mm)
Maximum Stroke of Vertical Rams ... 59.05 (1500mm)
Ram Cross Section . 13.77 x 13.77 (350x350mm)
Cross Rail Travel . 47.24 (1200mm)
Ram Saddle Travel, X-Axis . 175 (4445mm)
Turning Tool .. Capto C8
Table Load Capacity ... 264,000 lbs. (120t)
Table Speed Ranges, Max ... 0-60 RPM
Table Indexing .001
Main Motor, 2X 108 HP (81 KW)
Milling Spindle Taper . HSK-A100
Milling Spindle Speeds, Max ... 0-3,000 RPM
Milling Spindle Motor . 49 HP (37 KW)
Machine Footprint . 626 x 484
Machine Height 315
Machine Weight 550,000 lbs
EQUIPPED WITH:
Siemens 840DE SL CNC Control
12-Position Automatic Tool & Attachment Changer
40-Station Automatic Tool Magazine
Hydrostatic Table
Vertical Ram with Milling Spindle
Vertical Milling & Drilling Attachment
Right Angle Milling Attachment
Universal Milling Attachment
Through Spindle Coolant & Flood Coolant
Dual Dive 108 HP (81 KW) Table Motors
High Resolution Heidenhain Scales & Encoder
Renishaw RMP 60 Probe
Renishaw NC-4 Milling Tool Probe
Full Machine & Operator Enclosure
Chip Conveyor
Note:
Brand New, In Stock for Immediate Delivery
Additional Details Upon Request!
