Shrinking tunnels MEURER CM/SB60-B

packaging machines / shrinking machines / Shrinking tunnels

Manufacturer: MEURER

Model:CM/SB60-B

Type of machine: Shrinking tunnels

item-No.: 158740594

Quantity: 0

Date: 24.10.2023

Year of manufacture: 2010

Location: Land-es Spain 30600 Murcia

Price:


Machine in stock:Yes

Seller-item-No.:REF-827

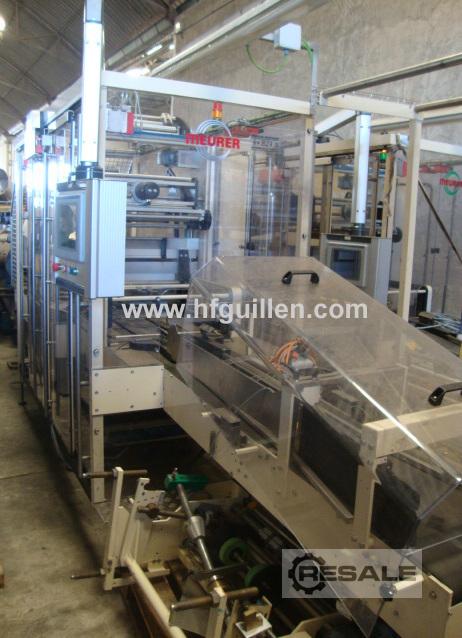

REF-827 SLEEVE WRAPPER AND SHRINK WRAPPING MACHINE MEURER CM SB60-B

The Meurer CM/SB-B sleeve wrapping machine produces sleeve-wrapped packages, with or without lateral shrink wrapping. The film is stretched lengthwise, for which reason it fits any product to perfection.

Manufacturer: Meurer
Model: CM/SB60-B
Year: 2010

Product dimensions min/max: Length 40-400mm; width 50-600mm; height: 40-350mm
Sealing jaw width: 600mm
Film reel diameter: 400mm
Overall dimensions: Length 1,520mm; width 1,430mm; height 2,090-2,140mm.
Performance: up to 50 cycles/min depending on product and film specifications
400/230V + N + PE.
Power: 3kW (without side shrinking), 11kW (with side shrinking unit)
Air connection: 6 Bar, 1/2

Sealing system: permanently heated sealing tool with sealing blade and electronic temperature control.
Easy access due to an open construction.
Quick, tool-less format change.
Low noise operation.

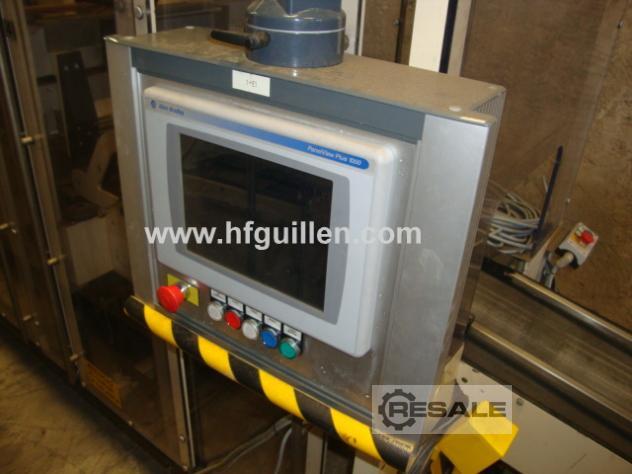

Touchpad with simple operating instructions.
Open interface for process automation.
Low-maintenance design.
Economical operation: low energy consumption, optimized wrapping material consumption.

CE Marking.
