Embossing machines OROPRESS

machines for plastic / other machines for plastic / Embossing machines

Manufacturer: OROPRESS

Model:

Type of machine: Embossing machines

item-No.: 162685378

Quantity: 0

Date: 17.04.2024

Year of manufacture:

Location: Land-de Germany 63599 Biebergemünd

Price:


Your price suggestion:

Machine in stock:Yes

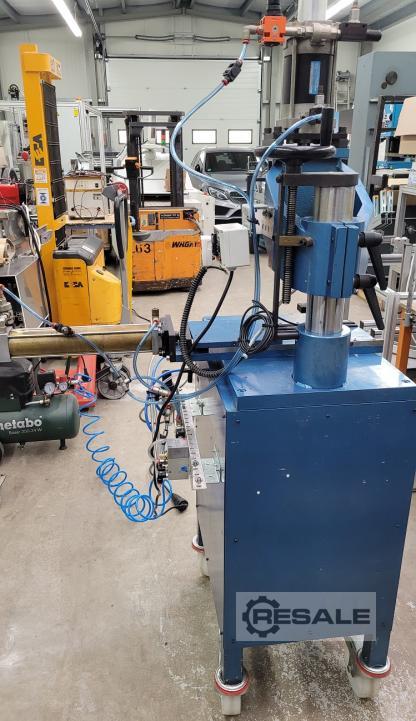

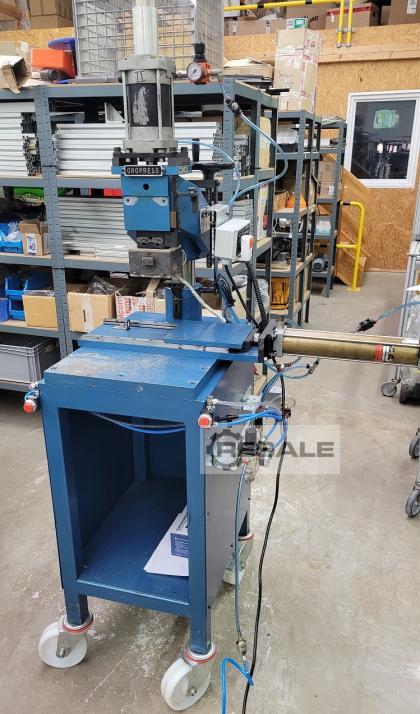

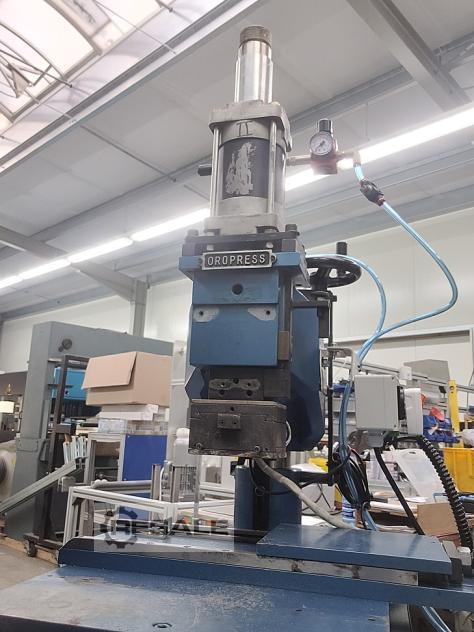

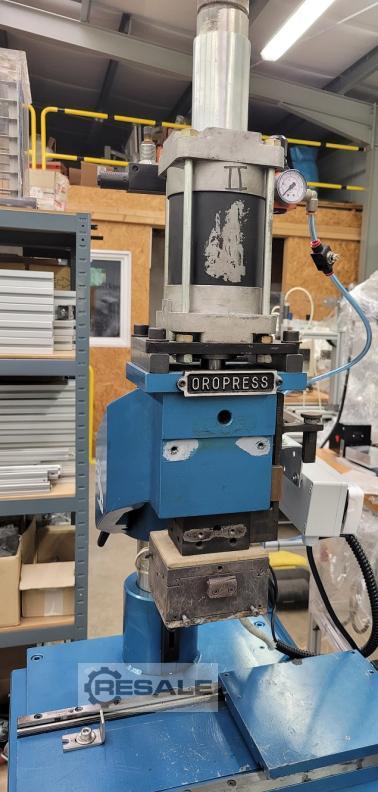

Data sheet heating press Oropress

Pneumatic press 5 KN / 0.5 tons
Press stroke 50 mm

Adjustment of the clear height with handwheel and spindle, adjustable from 100 to 220 mm.

With top heating plate 120 x 100 mm and temperature control, temperature up to 250 °C.

Pneumatic two-hand control with triggering via Festo ZSB.

Pneumatic sliding table 180 x 220 mm for loading outside the machine.

Machine dimensions W = 1100 mm, L = 700 mm, H = 1850 mm

Machine weight approx. 300 kg

Movable on castors

On request for an extra charge with second heating plate and temperature control at the bottom.
