Folding Machines OSTERBERGER EAM 3100/3-CNC

metal working machines / sheet metal working / Folding Machines

Manufacturer: OSTERBERGER

Model:EAM 3100/3-CNC

Type of machine: Folding Machines

item-No.: 149806822

Quantity: 0

Date: 26.09.2023

Year of manufacture: 2023 new machine

Location: Land-at Austria

Price:


Machine in stock:Yes

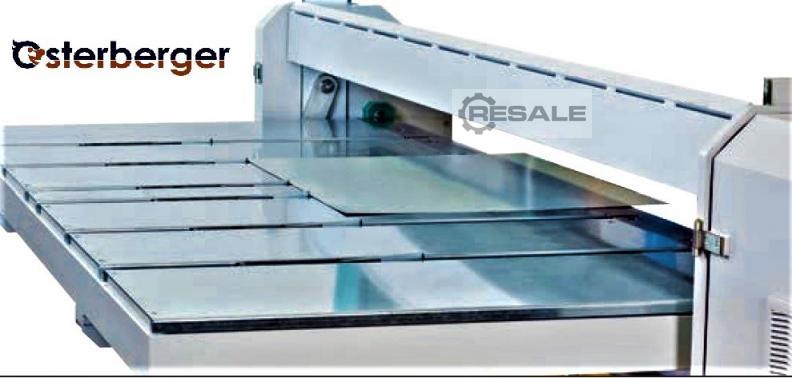

CNC - controlled electromotor precision sheet cutting machine (swing bending machine) with automatic bending angle monitoring

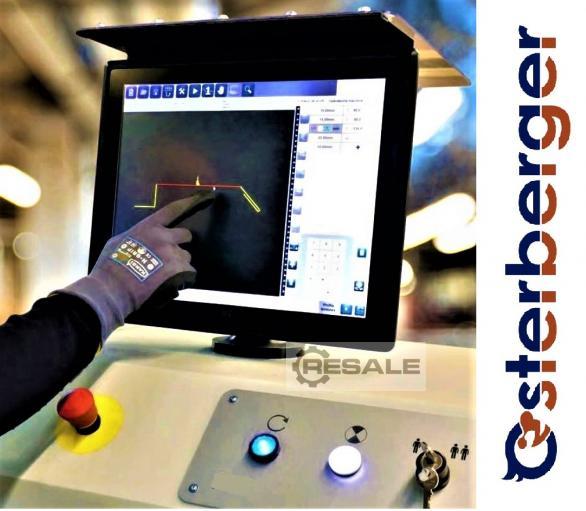

15 touchscreen with graphics - selector switch for one- or two-person operation, maximum bending length 3,100 mm, maximum sheet thickness ST42 - 3 mm, upper cheek angle 160°/140° - upper cheek stroke range up to 240 mm, Rear stop with 12 foldable stop fingers - stop range 12 to 750 mm (optional 1,000 mm or 1,500 mm) - travel speed adjustable - up to 500 mm/sec, working height approx. 830 mm, drive power 9 kW, dimensions approx. 4.6 x 1.8 m (depending on rear stop) x 1.9 m, weight 3,800 kg

Inquiry

Machinery dealer?

Please remit optionally

Send wanted inquiry?

Copy to you?

Save input data

CNC - controlled electromotor precision sheet cutting machine (swing bending machine) with automatic bending angle monitoring

15 touchscreen with graphics - selector switch for one- or two-person operation, maximum bending length 3,100 mm, maximum sheet thickness ST42 - 3 mm, upper cheek angle 160°/140° - upper cheek stroke range up to 240 mm, Rear stop with 12 foldable stop fingers - stop range 12 to 750 mm (optional 1,000 mm or 1,500 mm) - travel speed adjustable - up to 500 mm/sec, working height approx. 830 mm, drive power 9 kW, dimensions approx. 4.6 x 1.8 m (depending on rear stop) x 1.9 m, weight 3,800 kg
