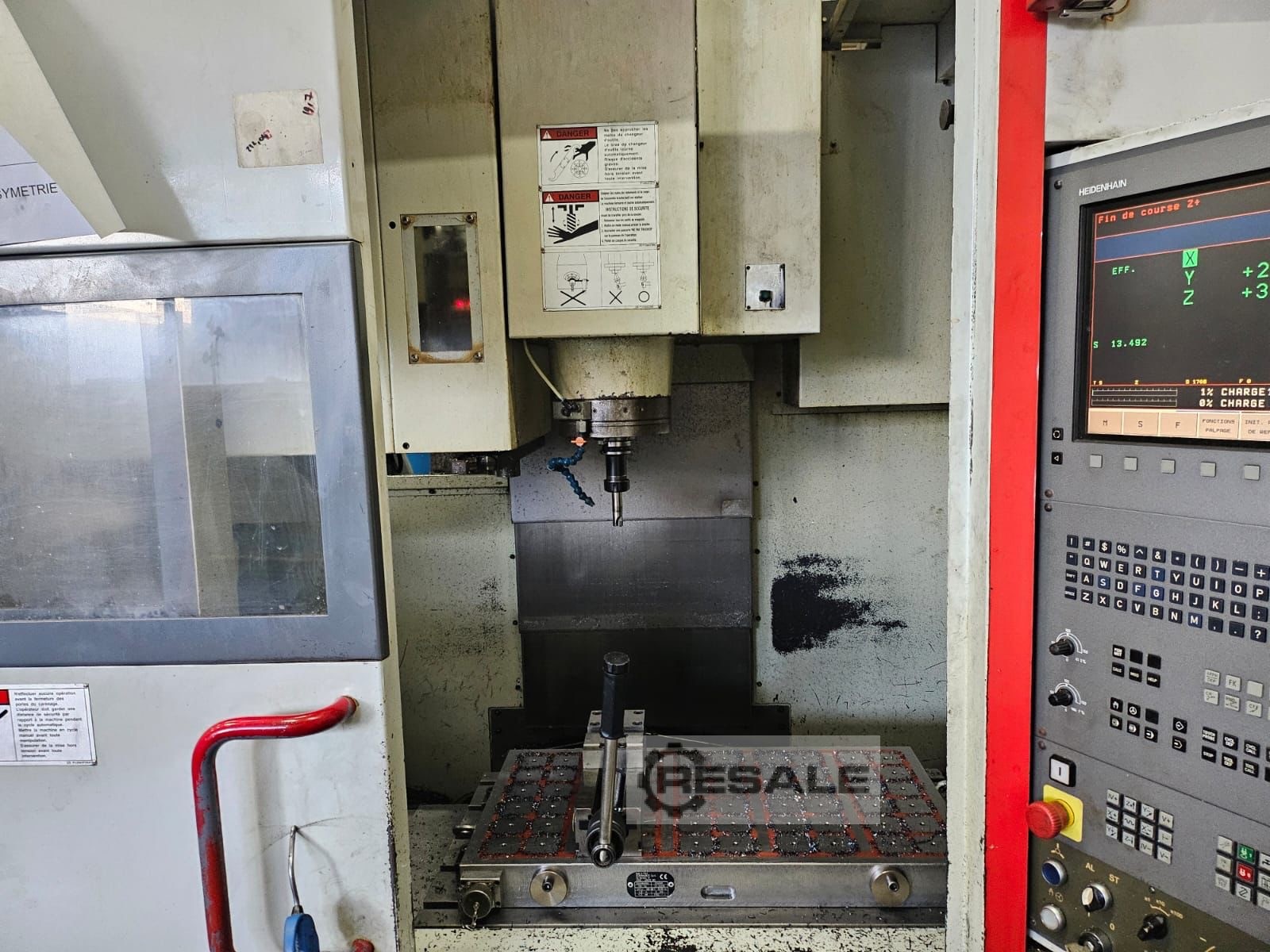

Numerically Controlled Machining Centres QUASER /ROSILIO MV 154

Machine Details
Stock-No. 1105-04062
Type of machine Machining Center - Vertical
Make QUASER
Type MV 154 P
Year of manufacture 2009
Type of control CNC
Storage location FRANCE
Country of origin taiwan
Delivery time immediately
Freight basis EX WORK

Technical details
X-Travel 762 mm
Y-Travel 530 mm
Z-Travel 500 mm
tool taper BT 40
spindle drive 25 kW
spindle turning speed range 60 - 10000 rpm
tool change unit 30-fold BT 40
tool changing time 4 sec
table-size 900 X 500 mm
table load capacity - central/maximum 500 kp
Rapid Travel X/Y/Z 30 m/min
feeds x/y/z -stepless 20000 mm/min
total power requirement 40 kVA
Additional information

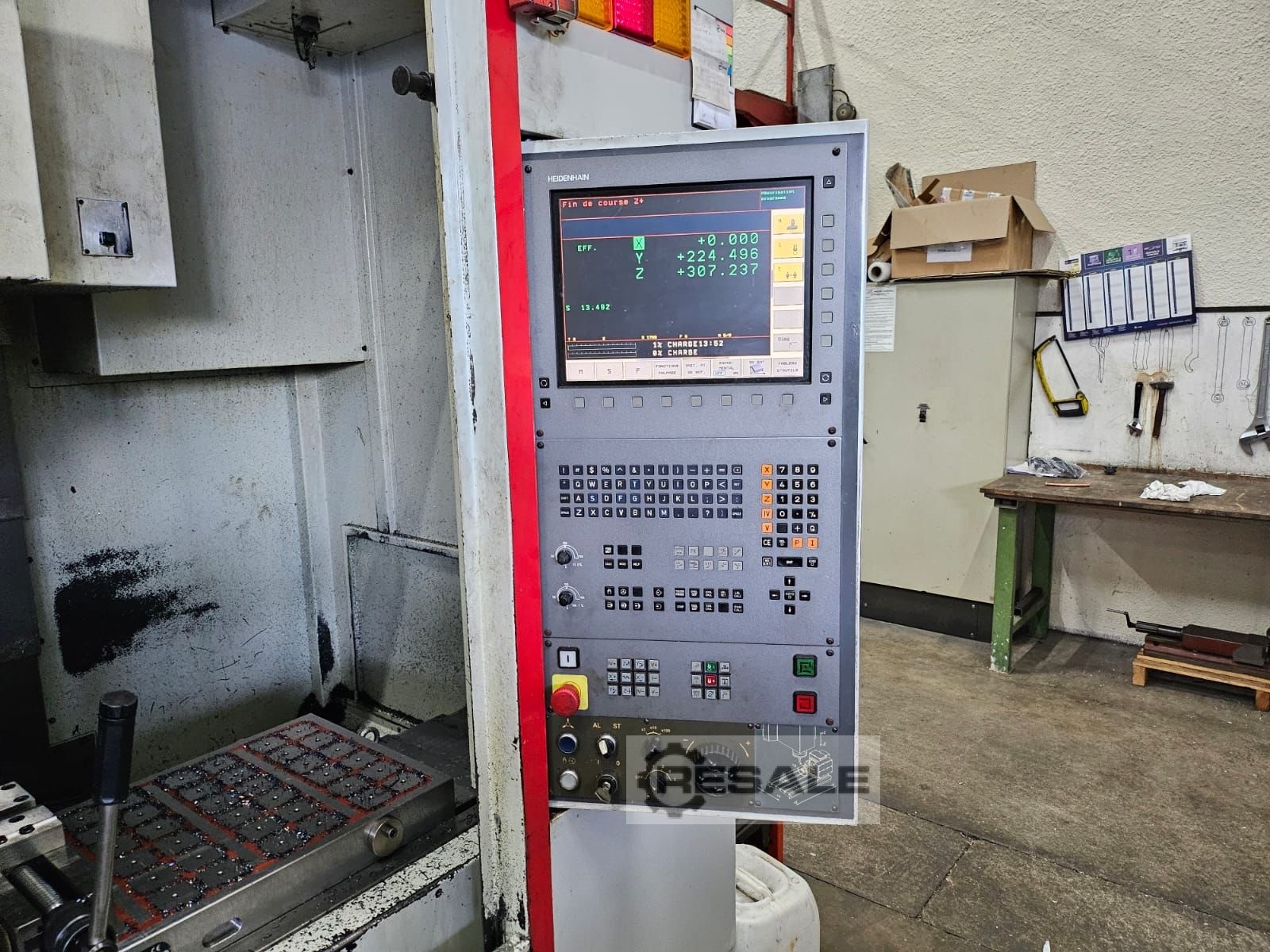

NC control CNC HEIDENHAIN I TNC 530
complete covering,
A.T.C. for 30 tools BT 40
COOLING TROUGHT THE SPINDEL 20 BARS
TABLE 900 X 500
25 KW 10000 RPM
CHIP CONVOYER
seller offer No. resale 162716059
