Broaching Machines RAUSCH RS 4/1000

metal working machines / other metal working machines / Broaching Machines

Manufacturer: RAUSCH

Model:RS 4/1000

Type of machine: Broaching Machines

item-No.: 145157969

Quantity: 0

Date: 15.11.2022

Year of manufacture: 2004

Location: Land-de Germany 33161 Hövelhof

Price:


Machine in stock:Yes

Seller-item-No.:WAG 789

General / technical data:
used mechanical vertical internal clearing machine in very good condition.
Pulling force at 3m/min: 4000 KG
Clearance speed: 3m/min
Return speed:6m/min
maximum stroke: 1000mm
maximum tool length: 1200mm
Table area: 450mm x 250mm
Table break: 90mm
Workpiece diameter: any
Dimensions ( h x w x t): 1610 x 630 x 855mm
Engine power: 2.2 / 3.5KW
Power supply:400 volts 50 HZ

Accessories / Optional equipment:
- integrated coolant/cutting agent system

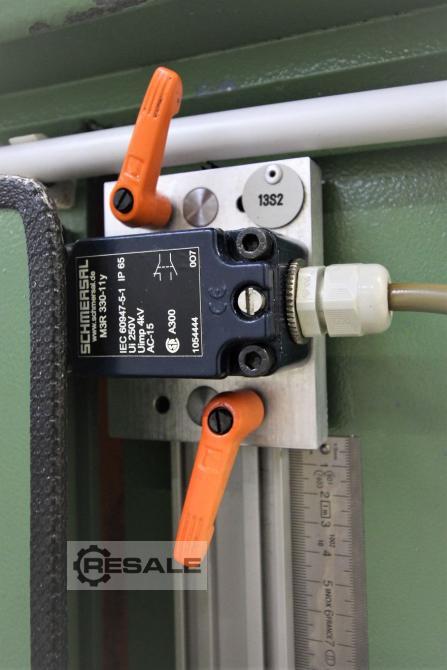

-electrical scanning of the clamping jaws (tool removal control to prevent
unintentional retraction of the drawbridge)
- Central lubrication system
- CE machine marking

Comment:
The double spindle drive ensures a quiet and central pulling point as well as a constant clearance speed. The machine is mainly designed for the production of spring springs up to 20mm. The machine has a very quiet machine run located in the original paint. Drawing mandrels and clearing tools are available on request.
