Horizontal Turning Centres TORNIO MORI SEIKI NL 2500 SY / 700

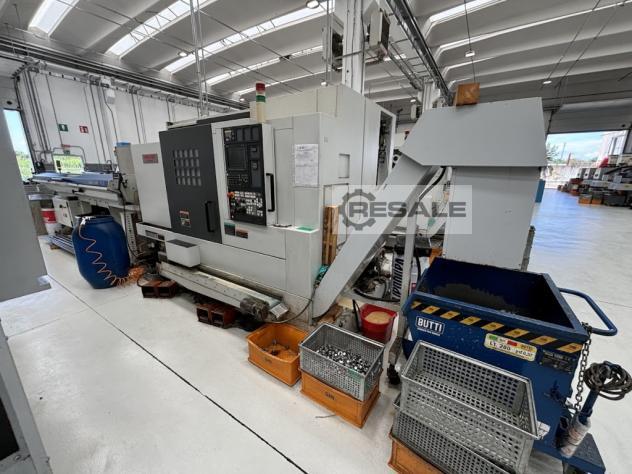

Mori Seiki NL 2500 SY / 700 Lathe

:::TECHNICAL SPECIFICATIONS:::

CNC Model: Mori Seiki

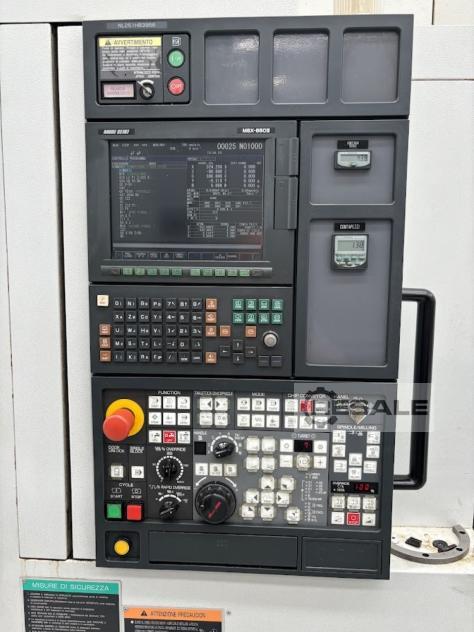

CNC Version: MSX-850 III

Main spindle nose: ASA 8

Main spindle power: 18.5Kw

Main spindle bar pass: 80mm

Turning diameter: 360mm

Turning length: 705mm

Main spindle speed: 4000

Number of tool turrets: 1

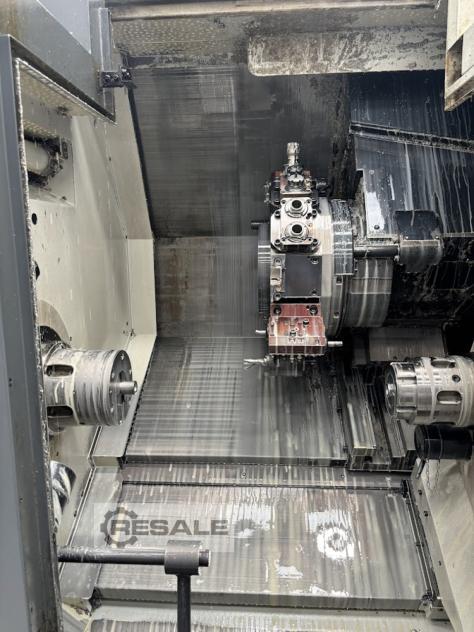

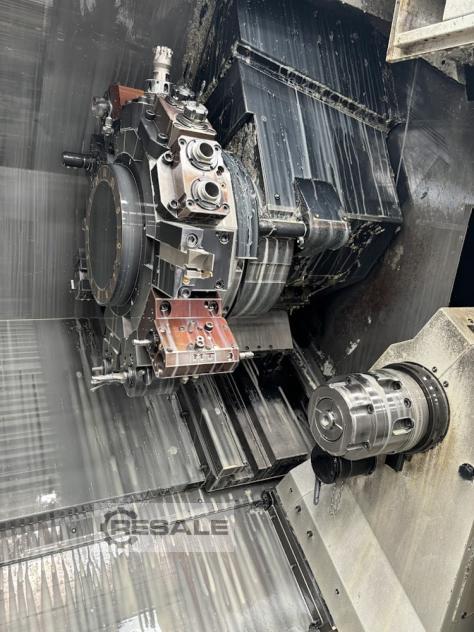

Number of tool positions for the first turret: 12

Number of Motorized First Turret: 12

First turret X-axis travel: 260mm

Y-axis travel first turret: +- 50mm

First turret Z-axis travel: 795mm

Fast feeds for linear axes X Y Z: 30m/min

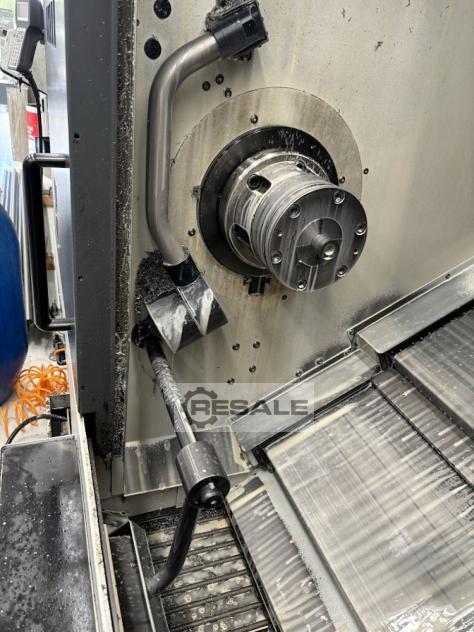

Sub-spindle: yes

Spindle nose: ASA 6

Number of counter-spindle speeds: 6000

Counter spindle power: 11Kw

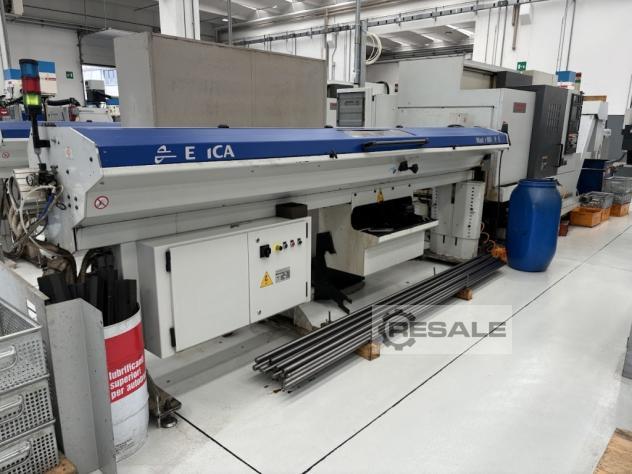

Bar loader model and brand: Iemca Master 880

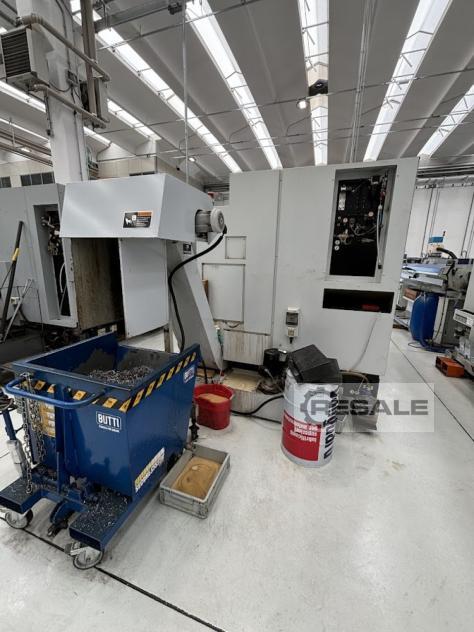

Chip conveyor: belt

Presetting: yes

Machine equipment: Set of fixed and motorized tool holders

:::D DIMENSIONS AND WEIGHT:::

Length: 4420mm

Width: 2370mm

Height: 2115mm

Weight: 6400Kg


seller offer No. resale 1F6F01
