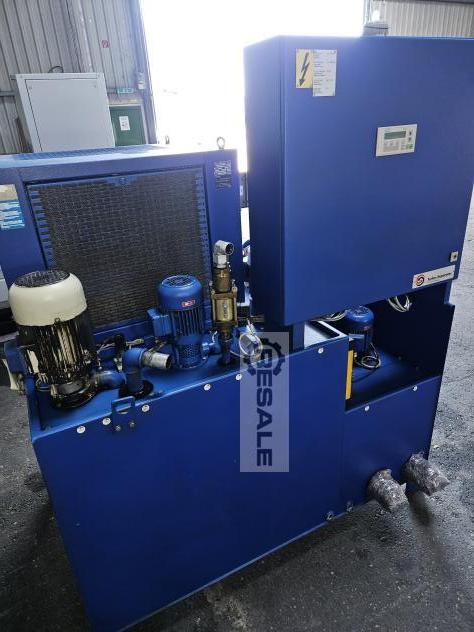

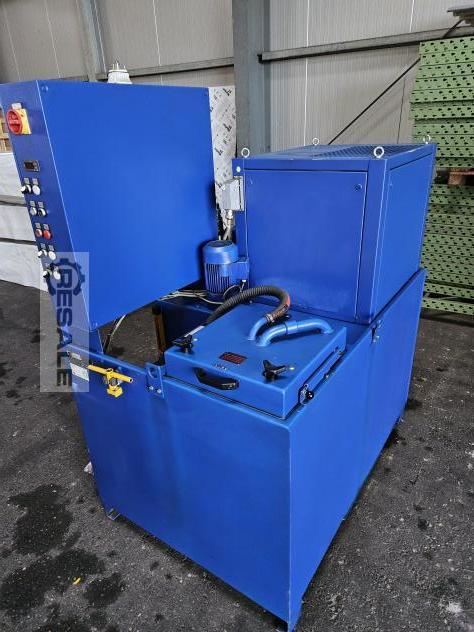

The used coolant cleaning system based on centrifuge is connected to a
tool grinding machine (Anca, Rollomatic, Walter, Schneeberger, etc.)
and supplies the grinding machine with clean emulsion or clean oil.
The pure oil is pumped directly to the grinding machine by pumps
placed on the coolant cleaning system.
Advantages of this system:
1. Use with oil or emulsion no problem
2. Filtration without consumables with the centrifuge,
3. Use with tungsten carbide, ceramic or HSS no problem.
4. The sludge comes out of the centrifuge dry, with minimal residual
moisture.
Pump capacity of supply pump 1 (for process supply): up to 80
litres/min. at 5-7 bar
Supply pump 2 (for spindle cooling) 20 litres/min. at 5 bar
The contaminated oil runs back from the machine into the filtration
system and is cleaned in the centrifuge.
Stage 1: Filtration by a centrifuge, without consumables, the sludge
(magnetic and non-magnetic) settles in the centrifuge and can be
removed from the centrifuge by changing the bucket. Filtration quality
- oil 3 to 10 μ.
The system was built for an Anca grinder, but can also be used with
any tool grinder with HM or HSS. The system was still running in
production at the customer's site until mid-August. Sold due to a new
acquisition and conversion of production. There are also 2 other
plants of in stock, see our other listings.
Germany
