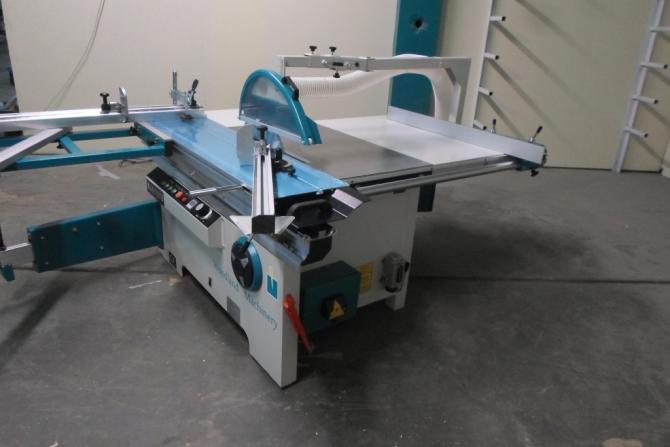

Panel saws WOODLAND MACHINERY MJ6116TD(400)

wood working machines / saws / Panel saws

Manufacturer: WOODLAND MACHINERY

Model:MJ6116TD(400)

Type of machine: Panel saws

item-No.: 61206565

Quantity: 0

Date: 28.09.2023

Year of manufacture: new machine

Location: Land-lt Lithuania

Price: 3,999 EUR

Your price suggestion:

Machine in stock:Yes

Seller-item-No.:20-60-526

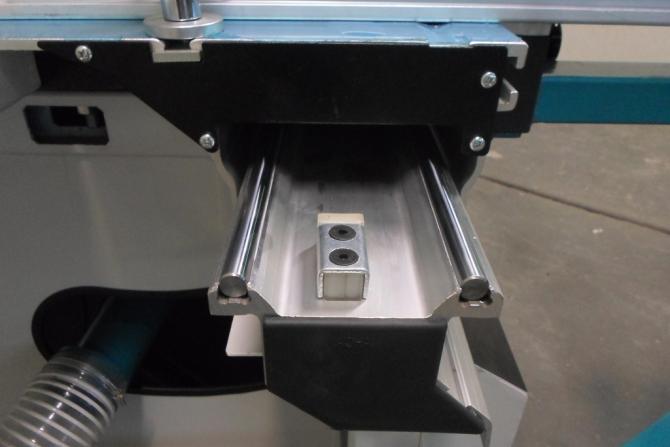

Dimension of sliding table- 1600x375mm
Gross cut capacity- 1500mm
Width of cut between saw blade and rip fence - 1140mm
Saw blade diameter - 400mm
Height of cut (90°) - 115mm
Height of cut (45°)- 105mm
Speed of main saw spindle - 4500/6000rpm
Main spindle diameter - 30mm
Tilting saw blade - 0-45º

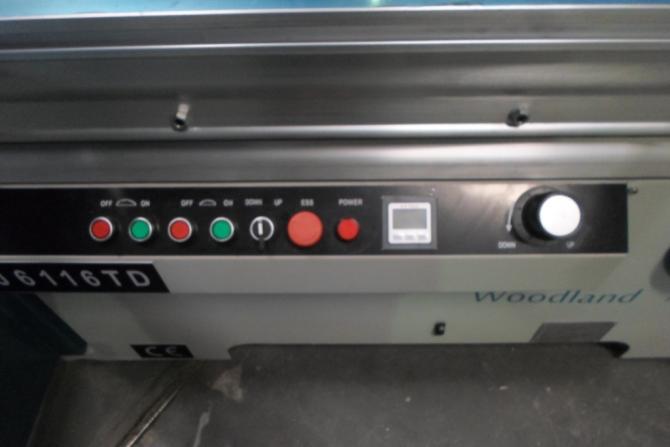

Saws lifting, up and down, electrical control.

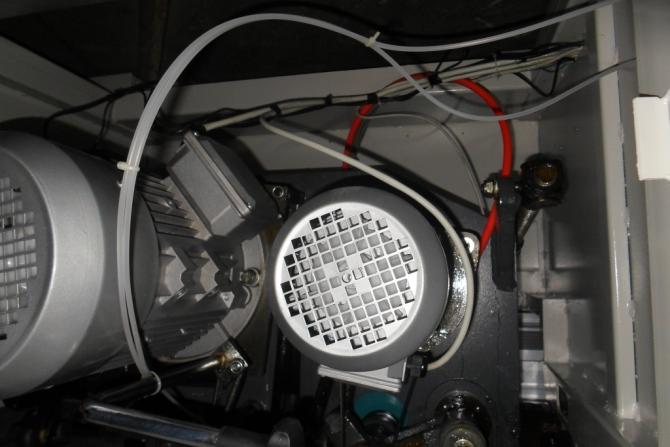

Main motor - 5,5 kW
Scoring saw blade diameter - 120mm
Speed of scoring saw blade - 7000-8000rpm
Scoring saw diameter - 20mm
Scoring motor - 1,1 kW
Weight: 650 kg
Transport dimensions - 1800x1000x1200mm
Using the blade 400mm, the smaller should be removed.
Reduced saw blade should be used with not more than 350 mm main shield.
