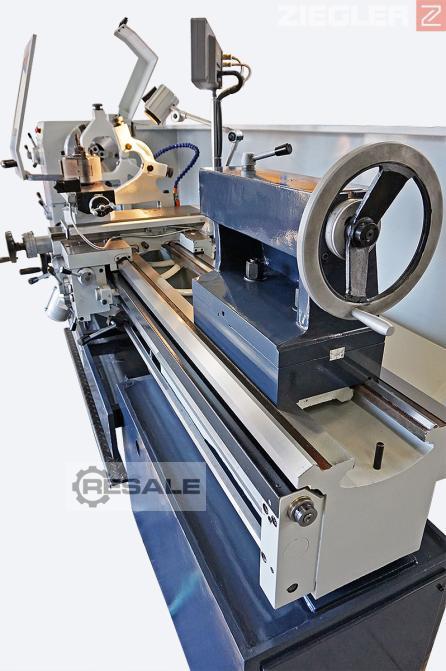

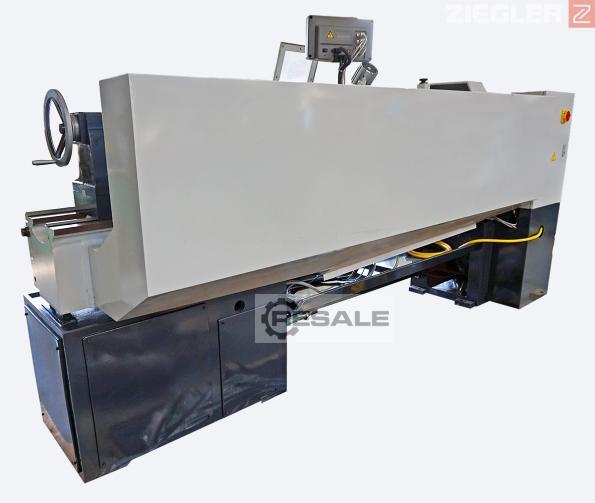

Universal Turning Machines (Lathes) ZIMAS D600-2000

- Sino SDS6-3V 3-axis position display
- magnetic and manual spindle brake
- 3 jaw chucks ø 250 mm
- 4 jaw linings ø 320 mm
- Stop Z-axis
- fixed & running bezels

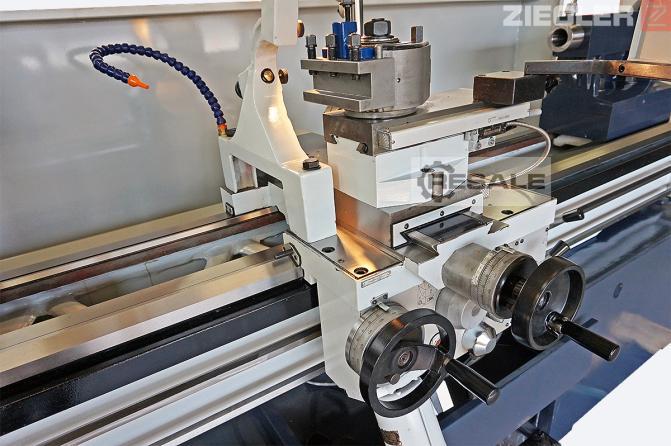

- Multifix Type C incl. 4 holders
- Flat disc ø 430 mm
- Lighting system
- Coolant sealing

Specification
- Tip width: 2000 mm
- Circulating Ø over bed: 600 mm
- Circulation Ø over slide: 360 mm
- Circulating Ø in eruption: 730 mm
- Bed width: 330 mm
- Spindle bore Ø: 80 mm
- Spindle cone: Metric 80 C8 / D1 - D8
- Speed range: 24 - 1600 rpm
- Speed levels: 15
- Metric threads: 0.5 - 28 mm (66 steps)
- Inch thread: 1 - 56 tpi (66 steps)
- Module thread: 0.5 - 3.5 mm (33 steps)
- Thread with diametrical slope: 8 - 56 dp (33 steps)
- Longitudinal feed: 0.072 - 4.038 mm/U (66 steps)
- Transverse feed: 0.036 - 2.019 mm/U (66 steps)
- Tool holder: 25 x 25 mm

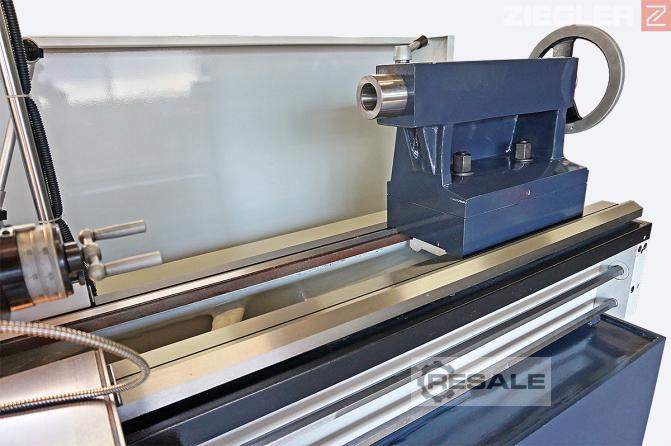

- Tailstock Pinole Ø: 65 mm
- Tailstock pinole holder: MK5
- Tailstock pinole stroke: 120 mm
- Motor power: 5.5 kW
- Voltage: 400 V
- Dimensions WxHxD: 3460 x 1800 x 1150 mm
- Weight: 2250 kg

seller offer No. resale 100-23-03
