Key data: 630 mm, 2000 mm, 2500 1/min

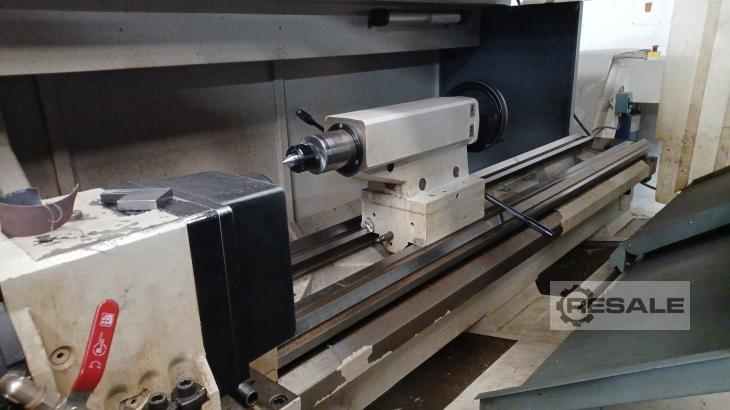

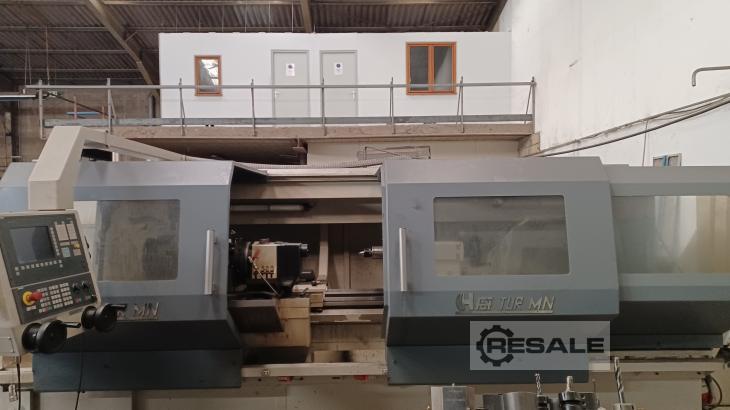

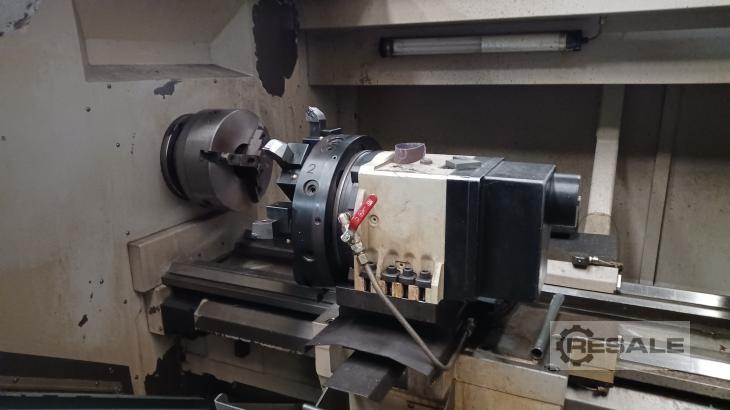

FAT TUR 630 MN - CNC lathe - Siemens Sinumerik 810 D CNC control - Movable control panel - Electric handwheels - 8-cavity tool turret - 3-jaw chuck Ø 400 mm - Incl. tools and accessories - Year of construction 2001 Specification - Circumferential diameter over bed: 630 mm - Circumferential diameter over slide: 370 mm - Center width: 2000 mm - Bed width: 433 mm - Gear stages: 2 - Speed: 2 - 2500 rpm - Spindle Inner Taper: Metric 115 - Spindle bore: 105 mm - Feed: 5 - 3200 mm/min - Tool turret mount: VDI 40 - Tailstock cone mount: MK5 - Tailstock quill diameter: 90 mm - Tailstock quill travel manual: 200 mm - Motor rated power at S1 / S6-60% / S6-40%: 12 / 15 / 18.5 kW - Dimensions without extraction system WxHxD: approx. 4000 x 1770 x 2400 mm - Dimensions with extraction system WxHxD: approx. 4000 x 2970 x 2400 mm - Weight: approx. 4500 kg
Used Cnc Lathe FAT Type TUR 560 MN X 2000 mm Cnc SIEMENS 810 D Manual turn Used Cnc Lathe FAT Type TUR 560 MN X 2000 mm Cnc SIEMENS 810 D Manual turn Diameter on bench 560 mm Straggler diameter 300 mm Between tip 2000 mm Full features on photo Video available via WhatsApp...
Machine Details Warehouse number 1105-03592 Machine type lathe - cycle controlled FAT brand Type TUR 630 MN Year of construction 2011 Control type CNC Control Siemens 810D MANUAL TURN Storage location FRANCE Country of origin Poland Delivery time immediately Freight base Freely loaded from location Technical details Turning diameter 370 mm Turning length 3000 mm Top height above bed 630 mm Circulation diameter max. via face slider 370 mm Spindle bore 105 mm Spindle speeds: 2 stages 2 - 2500 rpm Tool holder REVOLVER VDI 40 Control Siemens 810D MANUAL TURN Total power requirement 18.5 kW Machine weight approx. 6 t Information Equipment: REVOLVER 8 COMPARTMENT VDI 40 Chip protection wall automatic coolant device RS 232 interface 3-jaw chuck diameter 315 mm HOLLOW SPINDLE THROUGH. 105 MM automatic lubrication system Brochure LUNETTEN 1 STUCCO
This 3-axis FAT FTM 165 horizontal turning machine was manufactured in 2018. Ideal for precision turning operations, it offers robust construction and reliable performance. Consider the opportunity to buy this FAT FTM 165 horizontal turning machine. Contact us for more information.
Manufacturer: FAT Type: TUR 630 MN x 4000 Production Year: 2002 Weight: 6150 kg Electrical Power: 28 kW Accessories: Various tool holders and a steady rest Find more here - / Contact us at -
