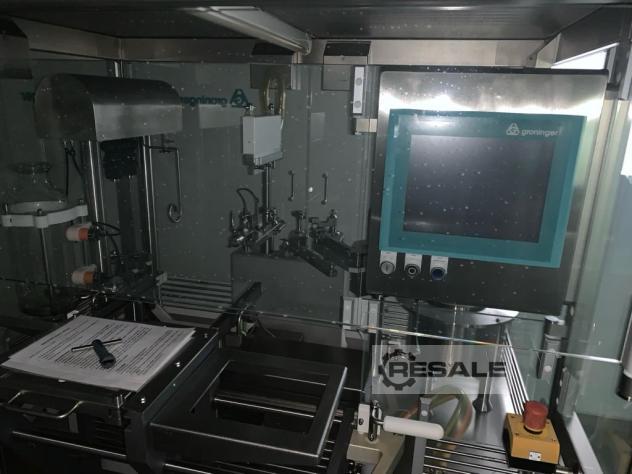

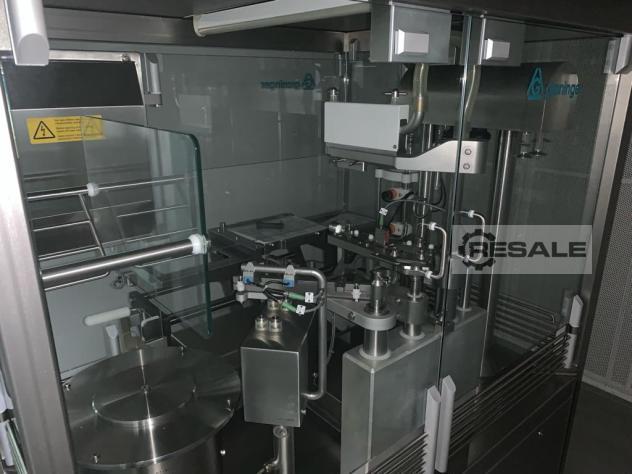

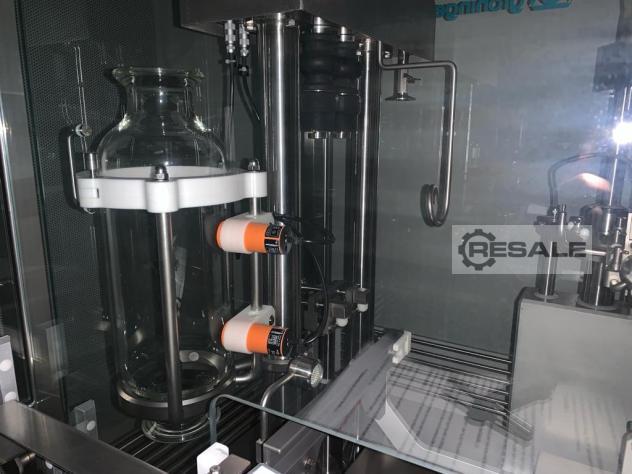

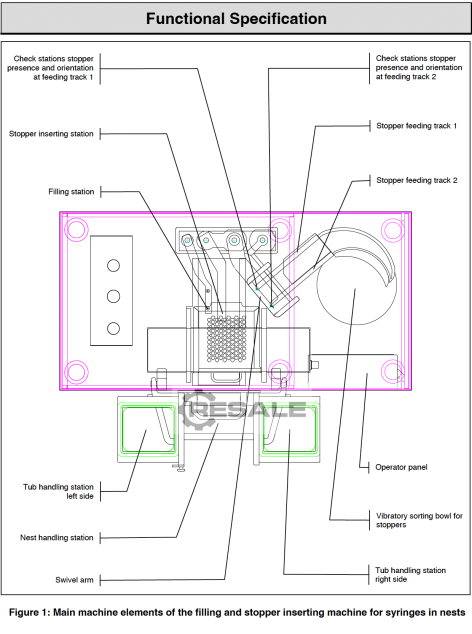

GRONINGER FILLING MACHINE, MODEL DFVN 1000 (LF) Year of construction: 2009 Never used Filling machine for PFS and Cartridges in nest; for testing and small batches. DFVN 1000 series is the smallest filling and stoppering machine by Groninger. Designed as a filling and closing machine for presterilized disposable syringes in nest for laboratories, test series and small batches. Dimensions: 1,500ｘ 1,135ｘ 2,000 mm Max. Output: 4.800/hr Filling volume: 0.5 - 50 ml Supported package: 20/30/42/64/100/160 nest Filling system: Rotary piston pump, peristaltic pump, time pressure, or in combination. This semi-automated stoppering and filling machine offers processes identical to those of a high-output system. The machine supports manual nest handling under laminar flow. Clear separation between the manual handling section and the fully automatic production sect ...

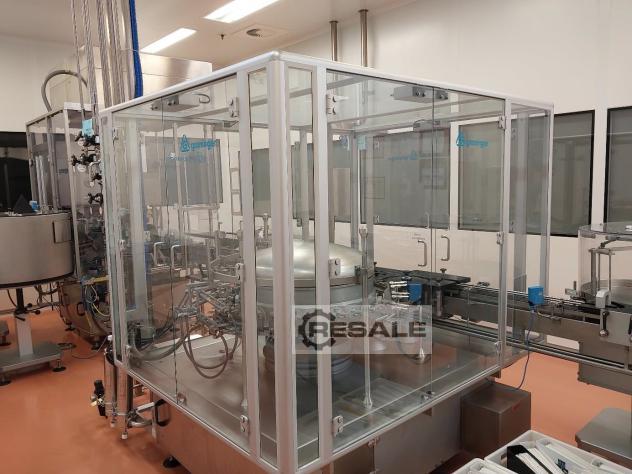

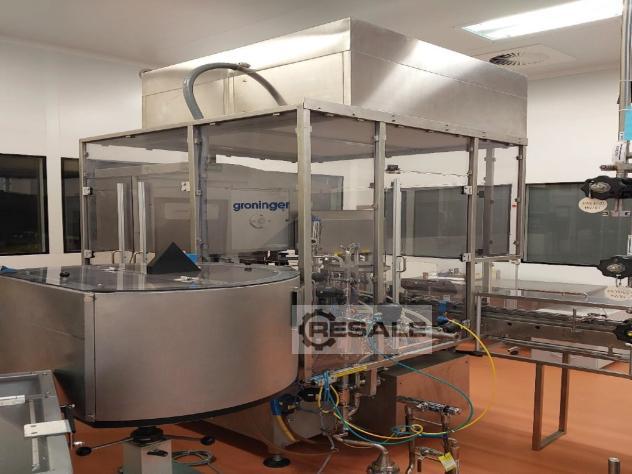

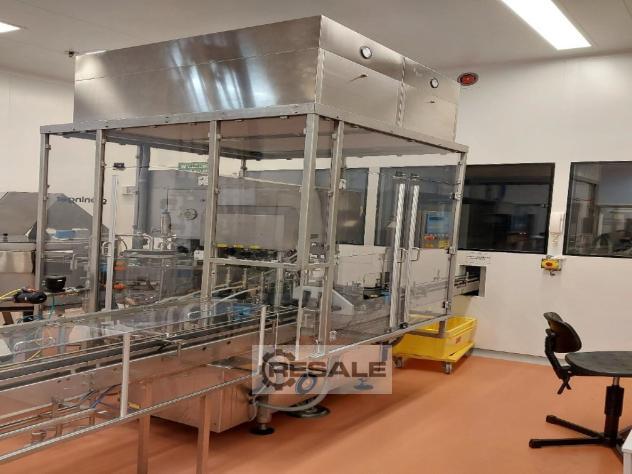

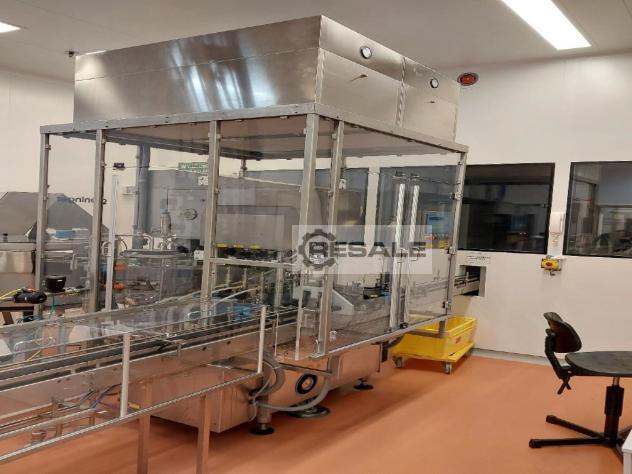

Used liquid filling (also alcohol) line made by Groninger. Year of manufactury 1997. Capacity 60 bot/minute. Effective capacity 3300 packages per hour. The line was stopped in 2018, it is fully operational and technically complete. The oline ony requires individual machines overview. Technical documentation and exploatation documentation available in English and maintanance documentation available in Polish. The line consists of: 1. Filler Groninger model KFVG 201 filler 2. Blower model AAVK300 3. Sorting system ZSB 600 4. Lifter DE100 5. Rotary table DTE600 6. Control Panel Grnininger

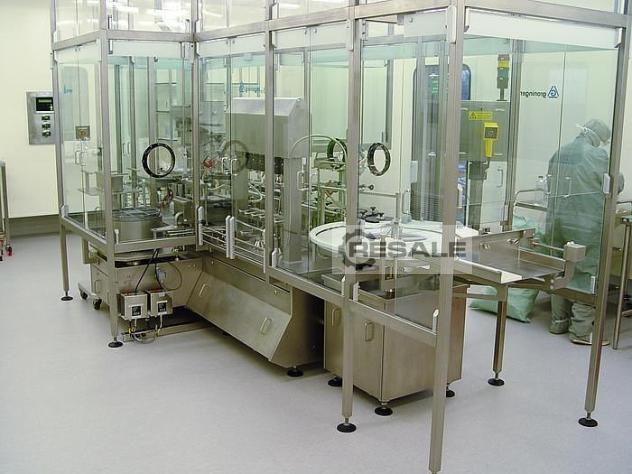

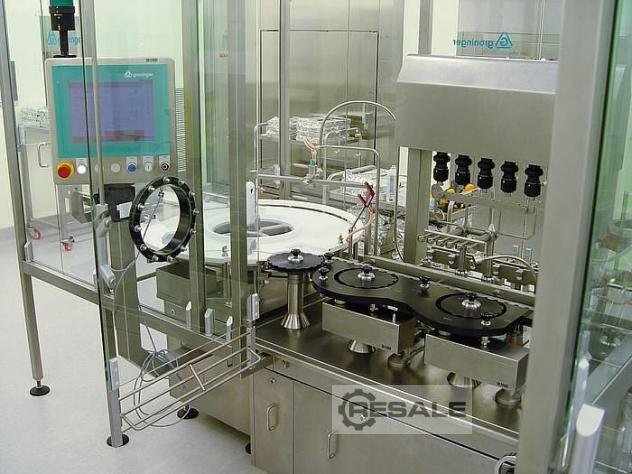

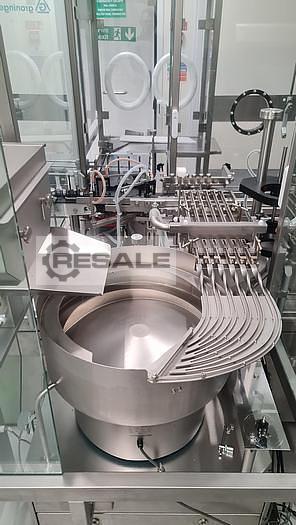

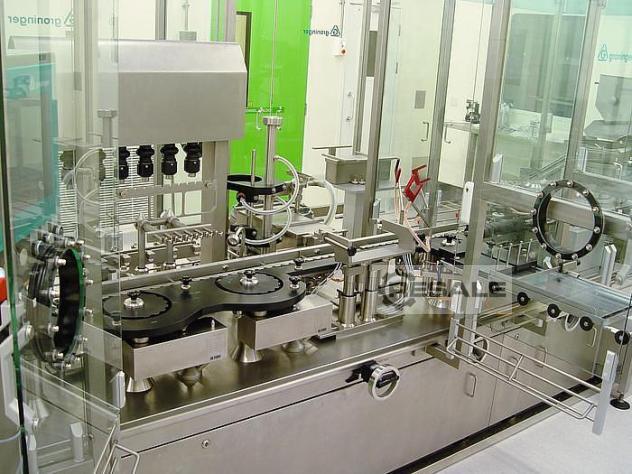

GRONINGER LIQUID FILLING LINE FILLING AND CLOSING MACHINE DFVK 6000 - STOPPERING MACHINE KVK 108B Anno di costruzione: 2002 Output: 12,000 per hour (200 per min), based on 3ml vial, 1ml fill Filling range: 0,2 ml- 135 ml (equipped with according pumps) Diameter range: 14-35 mm Height: 30-100 mm PLC: Siemens PLC type S7 300 Guarding: Stainless steel frame with safety glass The vial filling and closing line is capable of running in the following ways: - Fill and half-stopper a batch for freeze-drying - Overseal a stoppered batch from after freeze drying process - Fill, stopper and overseal a liquid batch Line under ORABS - Open Restricted Access Barrier System. Full set of operation manuals and technical documentation. Various spare parts.
Filling machine for PFS and Cartridges in nest; for testing and small batches. Dimensions: 1,500ｘ 1,135ｘ 2,000 mm Max. Output: 4.800/hr Filling volume: 0.5 - 50 ml Supported package: 20/30/42/64/100/160 nest Filling system: Rotary piston pump, peristaltic pump, time pressure, or in combination. DFVN 1000 series is the smallest filling and stoppering machine by Groninger. Designed as a filling and closing machine for presterilized disposable syringes in nest for laboratories, test series and small batches. This semi-automated stoppering and filling machine offers processes identical to those of a high-output system. The machine supports manual nest handling under laminar flow. Clear separation between the manual handling section and the fully automatic production section.
Groninger KVK-F5 fully automatic 6-head crimping machine including DTE 1000 infeed turntable (Ø900 mm), object diameter 14,00 – 68,00 mm, object height 34,00 – 145,00 mm, aluminium crimp cap diameter 13,00 – 32, 00 mm, power consumption 6,5 KVA, compressed air 6 bar, height of object transport 900 mm +/- 15mm, HMI 18,5 inch Omron-TFT-FullHD-16:9 Display / Multitouch Touchscreen / Industrial PC with Windows 10 lo T, integrated recipe management with space for 200 recipes, Audit Trail, Siemens SIMATIC S7, required floor space including infeed turntable approx. 4456 x 2432 mm (LxW), capacity up to 6,000 vials per hour, includes format parts for 2R ISO Vials (Ø16,00 x H35,00 mm) and Flipp-off-caps (Ø13,30 x H7,70 mm)
Groninger plastic bottle filling & closing line for eye drops (Ophthalmic), etc. comprising ZVB 2650 fully automatic empty bottle sorting & feeding unit and DSVG 4132 fully automatic intermittent motion filling, stopper and capping machine with barrier system with laminar flow modules type ORABS with LF Units, working stations: 1. IPC Tara – 2. gassing during filling – 3. 4 filling heads (multi stage filling) with servo controlled peristaltic pumps, filling accuracy +/-0,5 % referred to volumes above 1 ml. and +/-1,0 % referred to volumes below 1 ml. – 4. IPC gross – 5. post-gassing – 6. 2-head dropper inserting station – 7. 2-head screw capping station – 8. Bottle discharge, Allen Bradly Control Logix PLC + Allen Bradley Panel View Plus 6 / 1500 HMI, includes format parts for bottles for 3 ml. (Ø 18,70 x H 28,20 mm) and 10 ml. (Ø 25,00 x H 43,65 mm), capacity up to 120 b ...
Groninger HEA 105 vial labeling machine, 12-pocket starwheel, container diameter from 40 to 68 mm, container height from 20 to 250 mm, label height max. 120 mm, label length min. 30 mm, with Allen NGT2 thermo transfer printer for printing the variable data on the labels with print control, barcode-scanner, reject of bad vials and magazine outfeed of good vials, electrics 230/400V/50Hz, electrical power 7.5 kW, capacity up to 6,000 vials per hour, vial infeed via DTE 600 rotary infeed table (diameter 600 mm), includes format parts for vials 2R (Ø16 x H35 mm), 4R (Ø16 x H45 mm) and 6R (Ø22 x H40 mm)
Groninger vial filling & closing line comprising DFVG 4001 intermittend vial filling & stoppering machine with LF-unit, container diameter from 14 up to 68 mm, container height from 30 up to 140 mm, pre & post gassing, 4 filling stations using rotary piston pumps, in-process control for checking the filling volume, Siemens SIMATIC S7-300, electrics 230/400V/50Hz, electrical power 3.2 kVA, vial infeed via DTE 600 rotary infeed table (diameter 600 mm), linked directly to KVG 211 A crimping machine, container diameter from 16 up to 100 mm, container height from 30 up to 150 mm, capacity up to 3,600 vials per hour, includes Octum camera inspection system for checking the position of the bung/stopper and the bung/stopper gap, Siemens SIMATIC S7-300, electrics 230/400V/50Hz, electrical power 4.4 kVA, magazine outfeed, includes format parts for: Vials 2R (Ø16 x H35 mm) Vials 4R (Ø16 x H45 m ...
Groninger ASVG 100 washing machine for vials, etc., container diameter from 16 up to 95 mm, container height from 33 up to 238 mm, capacity up to 3,000 vials per hour, includes format parts for vials 2R (Ø16 x H35 mm), 4R (Ø16 x H45 mm) and 6R (Ø22 x H40 mm), Siemens SIMATIC S7-300, electrics 3x400V/50Hz, electrical power 3.5 kVA, vial infeed via DTE 1000 rotary infeed table (diamteter 1000 mm) under LF-unit, magazin outfeed under mobile LF-unit
Groninger vial line including labelling comprising ASVG 100 washing machine, container diameter from 16 up to 95 mm, container height from 33 up to 238 mm, capacity up to 3,000 vials per hour, Siemens SIMATIC S7-300, electrics 3x400V/50Hz, electrical power 3.5 kVA, vial infeed via DTE 1000 rotary infeed table (diamteter 1000 mm) under LF-unit, magazin outfeed under mobile LF-unit (The washed vials were collected in magazines and manually put into a dry heat sterilizer for sterilization. After sterilization the vials were transferred to the vial filler. The dry heat sterilizer is not part of our offer), DFVG 4001 intermittent vial filling & stoppering machine with LF-unit, container diameter from 14 up to 68 mm, container height from 30 up to 140 mm, pre & post gassing, 4 filling stations using rotary piston pumps, in-process control for checking the filling volume, Siemens SIMATIC S7-300 ...
Groninger SMB 18005 assembly machine for putting plastic backstops on disposable syringes, object diameter from 6.85 up to 17.05 mm, cylindrical object height from 35 up to 85 mm, diameter of the finger flange up to 28 mm, length of the syringe up to 135 mm, length of the backstop up to 45 mm, width of the backstop up to 30 mm, working height 1000 +/- 15 mm, electrical connection 230/400 V, 50 Hz, 3 Ph. + N + PE, power consumption approx. 2.5 KVA, Siemens SIMATIC S7-400 SPS, capacity up to 18,000 units per hour
Capping machine for bottles. Capper incl. various format parts, exit turntable, infeed vibrators. The machine stays in line with a filling machine GRONINGER, DFV 6000.
Filling machine for filling and closing liquids in corresponding bottles. Dosing volume: approx. 50-500 ml. 4-digit machine incl. 6 format parts, infeed turntable, Johnson pump, spare parts etc.

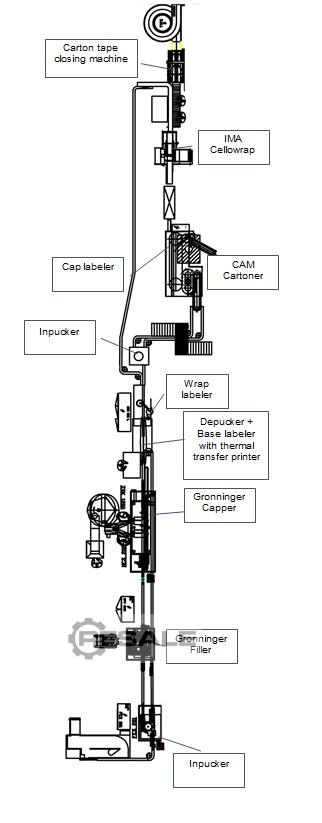

A line for filling and packaging creams: 1. Inpucker for jars , type: FES201, producer: Groninger, year:2009 2. filler plus 1 mobile hopper, type: DFV 4005, producer: Groninger, year: 2005 3. Capper, type: MCS202L, producer: Groninger, year: 2005 4. Unscrambler cap, type:ZSK1200 ,producer: Groninger, year: 2008 5. Container and Elevator cap, type: DE120, producer: Groninger, year: 1994 6. Labelling cap, type: Gamma, producer: Promark, year: 2010 7. Depucker, type: Omikron, producer: Promark, year: 2010 8. Labelling base label,type: Gamma, producer: Promark, year: 2010 9. Labelling wrap label,type: Gamma, producer: Promark, year: 2010 10. Printer, type: Smart DateX10, producer:Markem, year: 2008 11. Inpucker, type: Paxinpacker, producer: Unilogo, year: 2010 12. Cartoning machine, type:AVV, producer: CAM, year: 2009 13. Mechanical turning carton, Festo, year: 2011 ...
