Manufacturer GURUTZPE Model A-1600 2G CNC x 4,000 Year 2008 CNC FAGOR 8055 TC Capacities and feeds Distance between centres 4,000 mm. Center heights 810 mm. 3rd support guide for carriage INCLUDED Bed width 1,090 mm. Max. swing over bed 1.650 mm. Max. swing over cross slide 1.200 mm. Rapid feed X Axis 10 m/min Rapid feed Z Axis 10 m/min C Axis and driven tool INCLUDED Main Spindle Main spindle hole 150 mm. Spindle nose A-15 Spindle speeds 20-800 rpm Head automatic range number 2 Gurutzpe A-1600 CNC 2G x 4000Main Engine Power 68 kW Spindle Maximum Torque 14,600 Nm Turret Turret type Sauter 4 POS Tool Size 360 x 360 mm. Turret Station Number 4 Tailstock Tailstock with CNC driven longitudinal movement INCLUDED Movement of tailstock quill driven INCLUDED Quill Tailstock 180 mm. Turning point of the tailstock MORSE 6 Equipment Milling unit with driven tools ...
Key data: 800 mm, 1600 mm

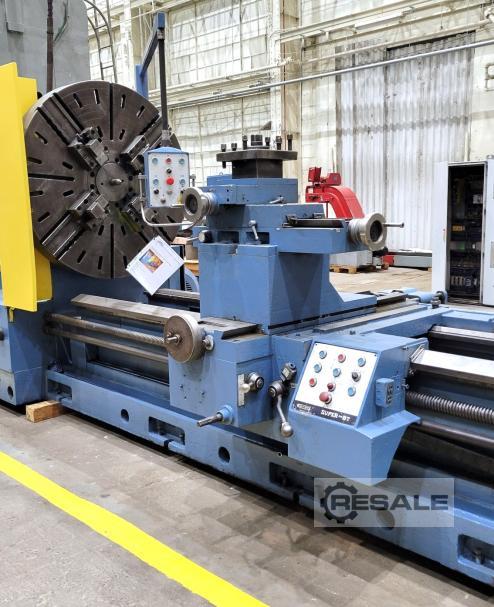

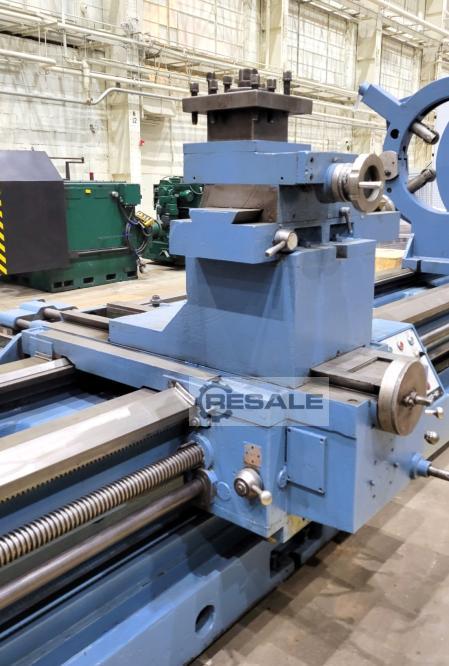

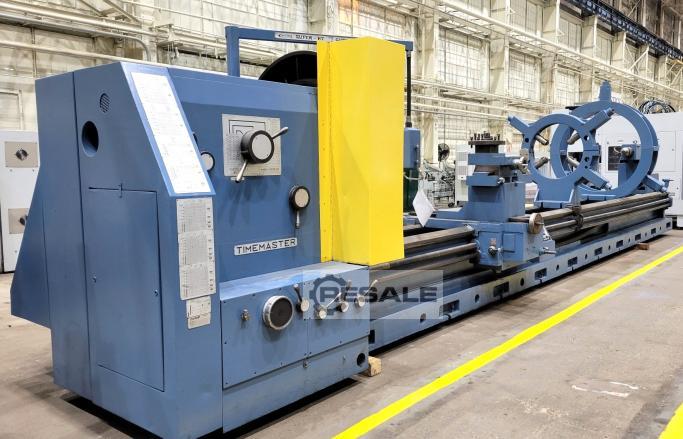

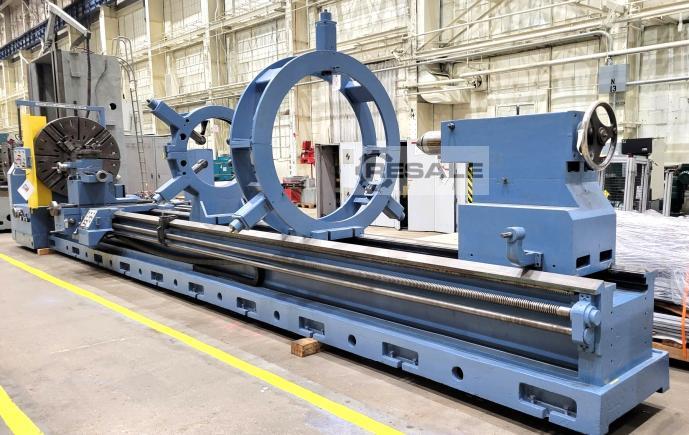

SWING OVER BED 62.99 (1600mm) SWING OVER CROSS SLIDE 43(1100mm) SWING IN GAP 75(1905mm) GAP LENGTH 23 (585mm) DISTANCE BETWEEN CENTERS 314.96(8000mm) MAX. WORKPIECE WEIGHT, UNSUPPORTED 30,000 LBS SPINDLE SPEEDS 2.8 - 266 RPM SPINDLE BORE 4.01 BED WIDTH 31.5 LONGITUDINAL FEED RATE .0031 - .23 IPR CROSS FEED .0015 - .11 IPR METRIC THREADING, 96 1 - 300 MM INCH THREADING, 108 .0625 - 30 TPI SPINDLE MOTOR 50 HP APPROX. MACHINE WEIGHT 51,400 LBS MACHINE ELECTRICS 230/3/60 MACHINE FOOTPRINT 447 X 108 MACHINE HEIGHT 100 EQUIPPED WITH: 55 4-JAW CHUCK 4-WAY TOOL POST TAPER ATTACHMENT INCH/METRIC THREADING (2) ROLLER TYPE STEADY REST, 52 & 30
Manufacturer GURUTZPE Model A-1200 4G CNC Year 2008 CNC SIEMENS 840 D Capacities and feeds Centres height 600 mm. Distance between centres 5,000 mm. Cross slide travel 530 mm. Support Guides Number 4 Max. swing over bed 1.170 mm. Max swing over cross slide 950 mm. Rapid feed X/Y axis 10 m/min Main spindle Turning Speeds 20-1,000 rpm Head Automatic Range Number 2 Main Engine Power 51 kW Quill Spindle 260 mm. Turret Turret type SAUTER 0.5.320.032 Turret positions 4 Tool size 320×320 mm. Tailstock Tailstock quill diameter 180 mm. W Axis – Driven tailstock (CNC Managed) INCLUDED Additional equipment 4 Independent jaw chuck Ø 700 mm with chuck hole 280 mm. INCLUDED Hydraulic chuck SHW Autoblock 500GH Ø 500 mm with chuck hole 260 mm. INCLUDED Steady rest SHW Autoblock SLU-5-25 INCLUDED Steady rest capacity 45-310 mm. V Axis – Longitudinal movement Z axi ...

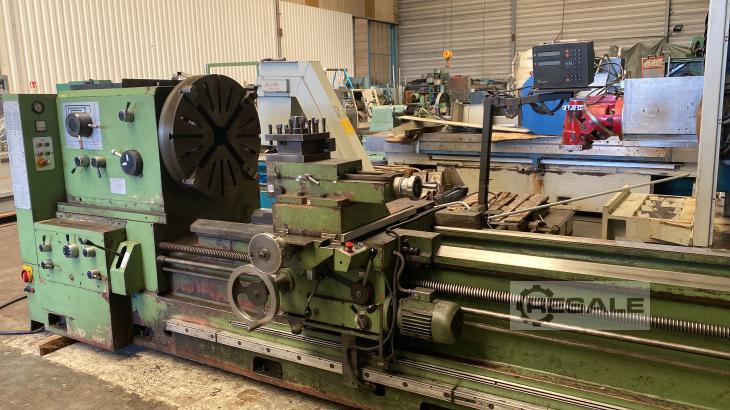

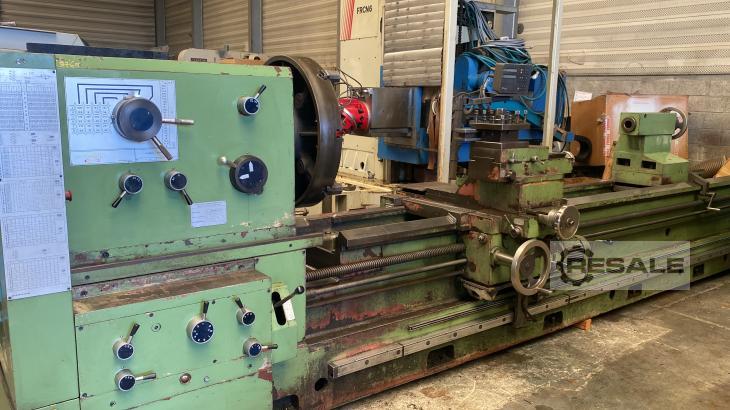

Gurutzpe Super AT lathe. Distance between centers: 4000mm. Swing: 1020mm. Swing over carriage: 710mm. Swing in gap: 1320mm. Bore: 76,5mm. Motorized carriage. 4 independent jaws chuck. DRO Heidenhain.

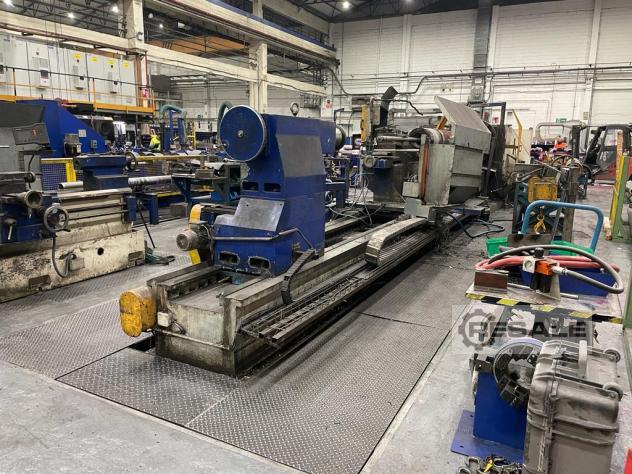

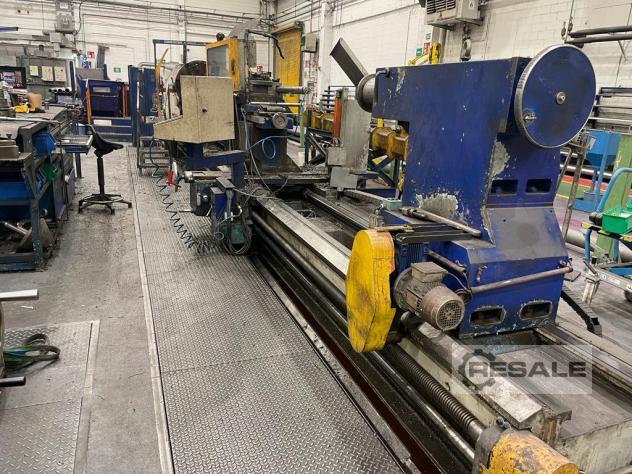

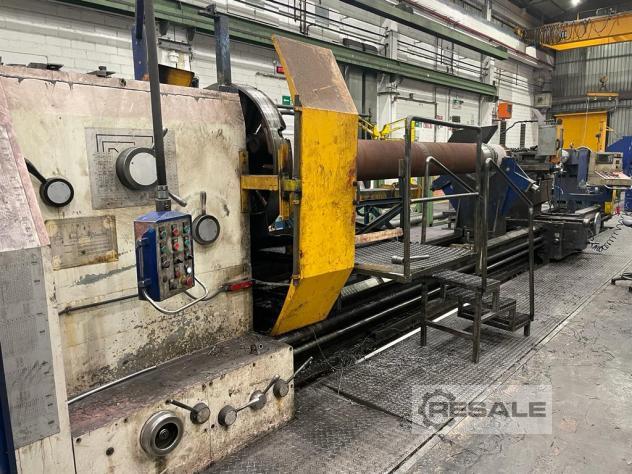

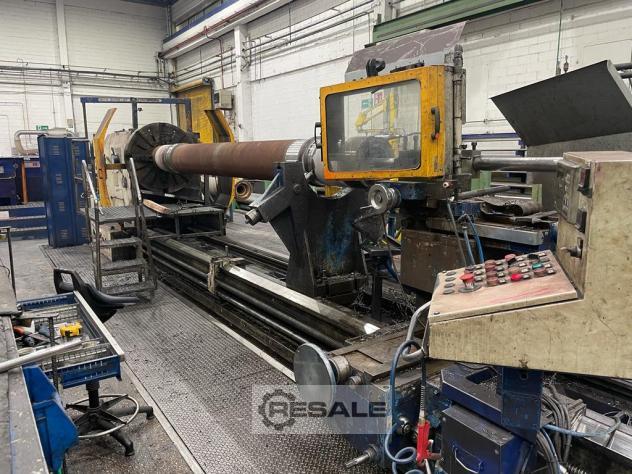

Gurutzpe Super BT lathe. Distance between centers: 8.000mm. Swing: 2.000mm. Swing in carriage: 1.680mm. Swing on gap: 2.360mm. Spindle bore: 102mm. Equipped with chuck and steady rest. DRO Fagor. CE protections and european certificate for second hand machines.

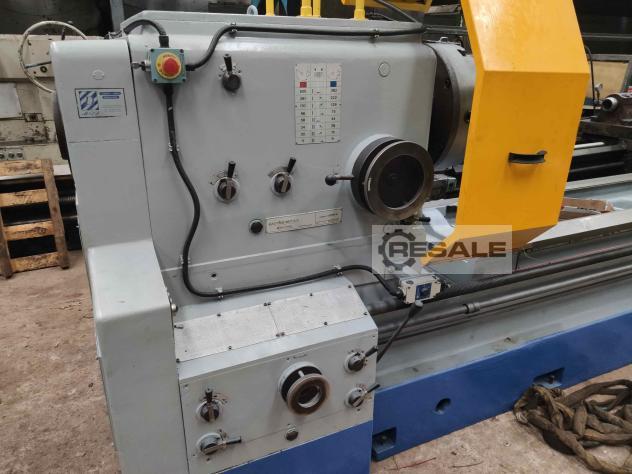

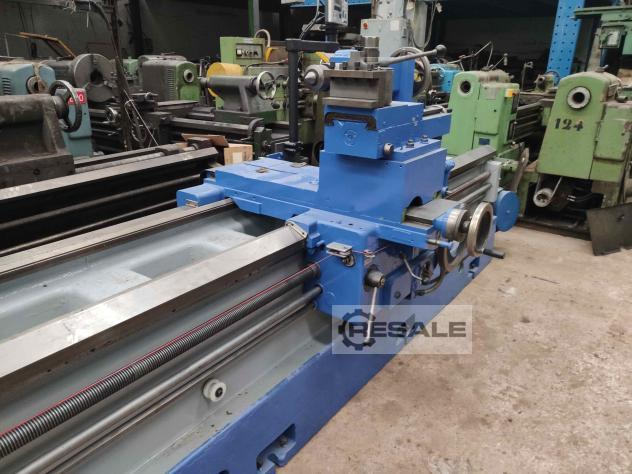

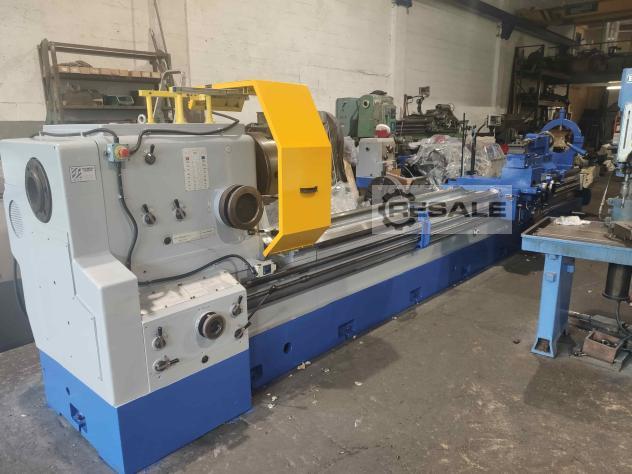

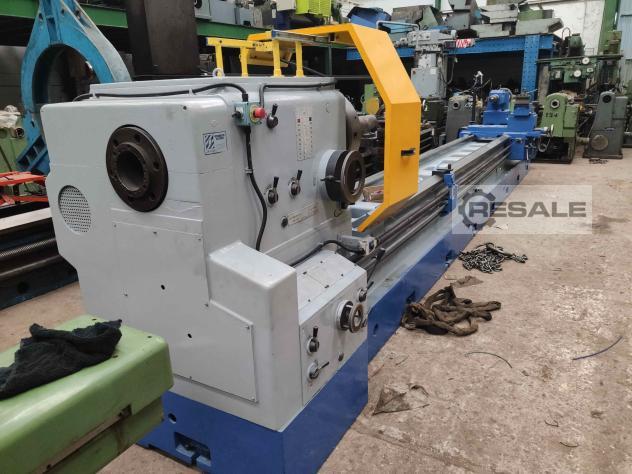

Gurutzpe Super A lathe. Distance between centers: 6.000mm. Swing: 1020mm. Swing in carriage: 745mm. Swing on gap: 1440mm. Spindle bore: 140mm. Speeds: 16 (9-500rpm). Equipped with 4 independent chuck and steady rest. Equipped with new universal chuck of 500mm. Equipped with new DRO Fagor. Equipped with new Multifix turret. Motorized carriage. CE protections and european certificate for second hand machines.
Distance between centers: 2000mm. Swing: 600mm. Swing over carriage: 360mm. Swing over gap: 780mm. Spindle: 72mm. 18 speeds (16-1250rpm). Equipped with chuck.
Distance between centers: 3000mm. Swing: 600mm. Swing over carriage: 360mm. Swing over gap: 780mm. Spindle: 72mm. 18 speeds (16-1250rpm)

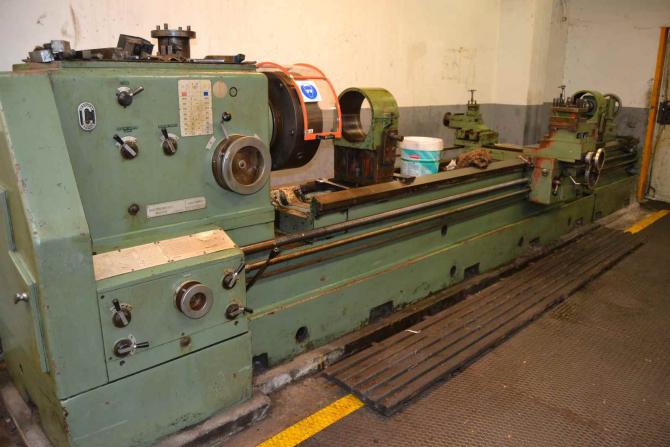

Distance between centers: 4500mm. Swing: 825mm. Swing over carriage: 600mm. Swing over gap: 1250mm. Spindle: 80mm. 16 speeds (9-500rpm) Equipped with chuck of 500mm. Equipped with conical device.
turning diameter over bed: 800 mm turning length: 2000 mm centre height: 400 mm turning speeds: 1450 U/min weight: 7600 kg Power: 15 KW required space: 5,66 x 1,16 x 1,46 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
