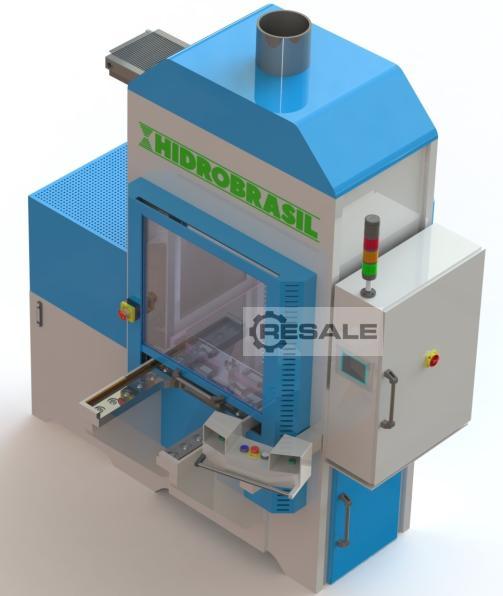

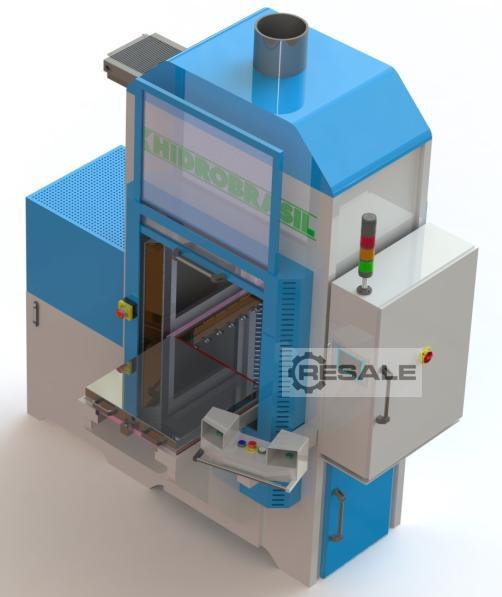

# HIDROBRASIL 50 T Heating Press with Sliding Table (600x600mm) If the press does not exactly meet your requirements, please request an individual offer exactly according to your wishes with one click: HIDROBRASIL manufactures presses exactly according to your wishes at surprisingly low prices! 50 T top piston heating press, in double column brackets suitable for continuous shift operation, with these basic data: - With a heating level - Idle speed up to 10 mm/sec (adjustable via rotary control) - Opening speed up to 40 mm/sec - Starting pressing speed 8 mm/sec - Table size/heating plate size 522 mm deep, x522mm wide - Plunger size/heating plate size 498 mm deep, x498mm wide - 2 heating plates, electrically heated, up to 200 degrees - Oil temperature monitoring - Circulating oil cooling on the hydraulics - Pressure Holding Valve 0 to 3600 sec - Pressure adjustment from ...
# Description text for the press If the press does not exactly meet your requirements, please request an individual offer exactly according to your wishes with one click: Contact us for an individual offer HIDROBRASIL manufactures presses exactly according to your wishes at surprisingly low prices! Mold opener-closer with 40 tons pressing force Table and ram size: 1500 x 1000 mm for heated tools Specifications: - Pressing force: 40 tons - Maximum open height: 1800 mm - Tappet travel: 1500 mm - Oil Temperature Monitoring: Electric Air Cooling - Lubrication: Manual via grease fitting - Extending table travel: 1200 mm - Extending table speed: 30 mm/sec - Electrically infinitely variable ram: 180 degrees - T-slots: According to customer requirements - Pressure setting: From 10 tons to 40 tons - Monitor: 10 on the control cabinet for pressure adjustment and warning ...
If the press does not exactly meet your requirements, please request an individual offer exactly according to your wishes with one click: Contact us for a custom quote HIDROBRASIL manufactures presses exactly according to your wishes at surprisingly low prices! 20T PHC Pellet Press Machine Type: Hydraulic Single Column Press Year of construction: 2023 Location: Gelsenkirchen, Germany Specifications: - Press force: max. 20 tons (at 250 bar) - Free tearing force: max. 20 kN - Print build-up time: max. 2 seconds (Closed tool steel on steel) - Maximum opening width: 500 mm - Stroke and minimum opening: 400/100 mm - Table height above floor: 800 mm - Total height: approx. 2400 mm - Hall height: at least 3,500 mm - Parallel deviation: +/- 0.1 mm at 20°C - Deflection:
Key data: 400 t, 800 mm

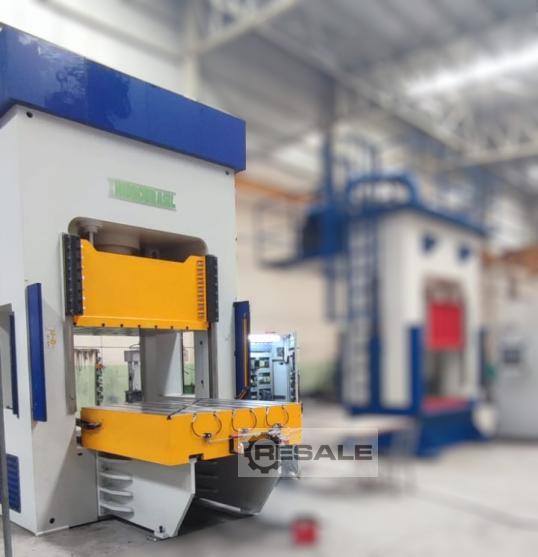

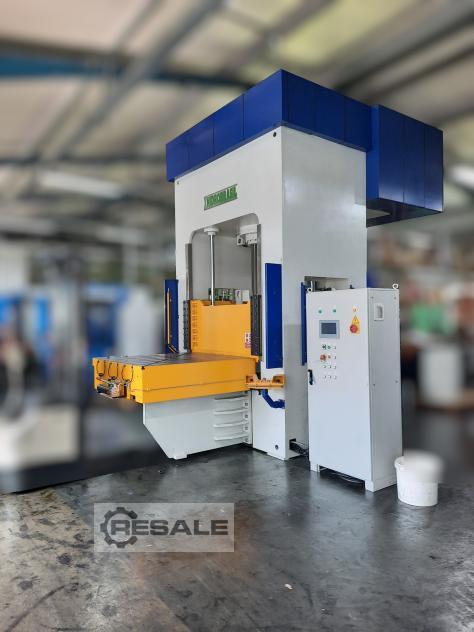

Oil-hydraulic double-column press 400 T with sliding table Press type: Double column press Thermally neutral 80 – 120 °C Number of operating pages 1 page Forces Pressing force max. 4000 kN Free tear-off force max. 400 kN Print build-up time Closed tool steel on steel Max. 4 sec. Dimensions: 3,800 mm long and 4,475 mm wide Max. opening width 800mm Stroke 800mm Table height above floor 1100mm Height above ground (height) approx. 4300 mm Hall height min. 5500 mm Parallel deviation at 20°C +/- 0.1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.2 mm/m Weight Total weight of the press without consumables and table top approx. 28 tons Press table Table size 1500x1500 mm Velocities Quick closing at 100 mm sec. Pressing speed 8 – 3 mm sec. Acoustic pressure Sound pressure level, measured at a height of 1.5m on the control pane ...
Here are the technical data of the offered machine: Technical data + information: • No-load speed up to 40 mm/sec • Opening speed up to 40 mm/sec • Starting press speed 5–15 mm/sec • Table size/heating plate size 600 × 600 mm • Plunger size/heating plate size 600 × 600 mm • 2 heating plates, electrically heated, up to 250 degrees – as OPTION • Total size approx. 2000 × 1000 × 2800 mm height • OIL temperature monitoring • Automatic lubrication • Free positioning of the plunger • SICK/LEUTZE light barriers 14.1 mm on the front • Circulating oil cooling • Pressure holding valve 0 to 1800 sec. • Rear monitored door • Pressure adjustment from 30 T to 120 T • Travel limitation either by pressure or position • Programming set-up mode, single stroke (adjustable via rotary switch) • Control panel permanently installed in the wall ...

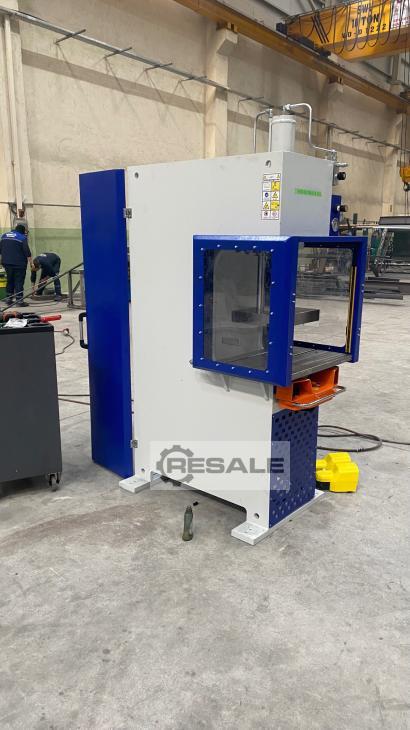

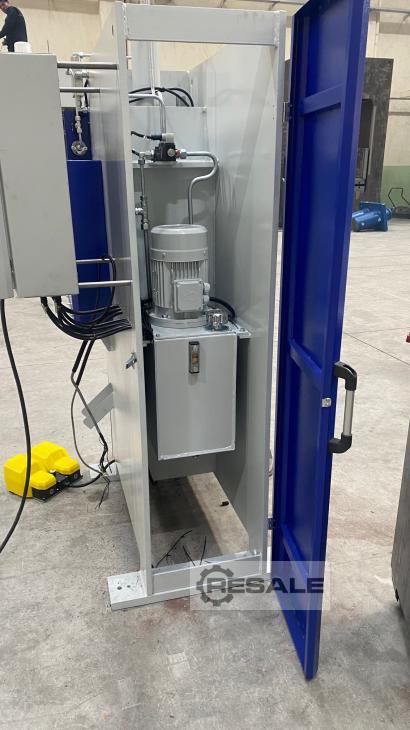

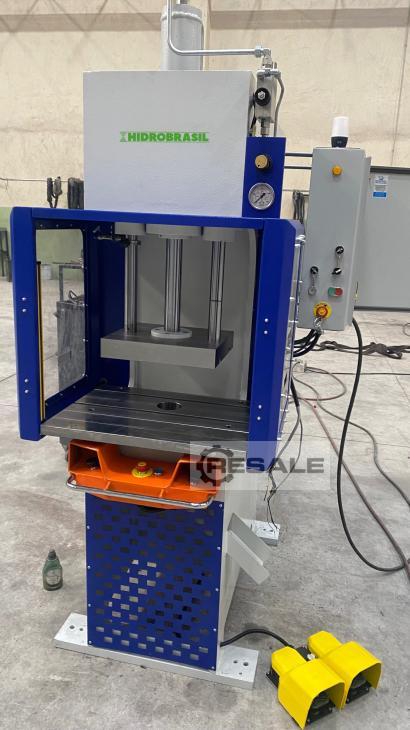

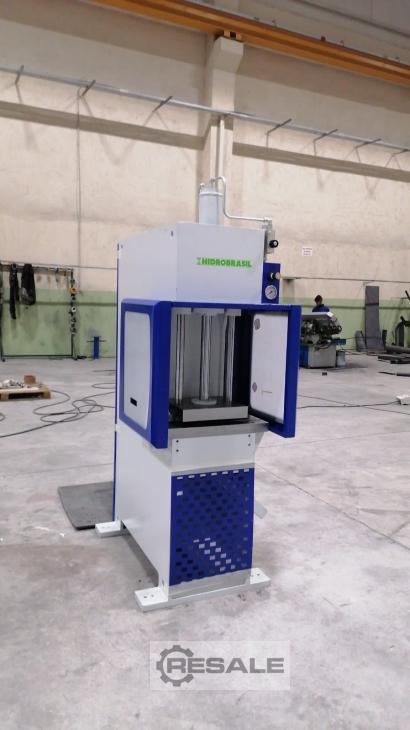

Single-column press with 15 T power suitable for continuous shift operation (a) travel speed 10 mm downwards; b) Opening speed up to 25 mm/sec c) Starting pressing speed 10 mm/sec d) Table size 400x400 mm e) Ram size 200x200 mm, with T slots and central cylinder tension f) Total size approx. 1150x800x1750 mm g) Oil temperature display on the oil tank h) Pressure adjustment from 5 T to 17 T (adjustable via rotary control) i) Two-speed hand lever operation j) Machine body powder-coated, or double painted k) Control cabinet supply cable from above with 3000 mm cable and 16 ampere plug l) Installation, commissioning, instruction against separate charge Press type single-column press Thermally neutral 80 – 120 °C Number of operating pages 1 page Forces Pressing force max. ( at 250 bar ) 150 kN Free tear-off force max. 10 kN Pressure build-up time Closed tool Stee ...
It has a cylinder for 10 to 135 T and a small additional cylinder for 1500 kg to 7 T. Empty run with 2-10mm second Pressing speed 2 mm second Table size 1100x650x120mm 800 mm maximum open height Table height max. 900 mm Travel of the cylinder is 400 mm Total height 2900 mm Weight 2.3 T 200 L tank Pump with 60 L output 5 KW main motor Control system PLC SIEMENS or PILZ RSS4000- S 7 1200 Safety control PILZ Communication Operator/Press Coloured Touch Screen 10 OMRON/SIEMENS

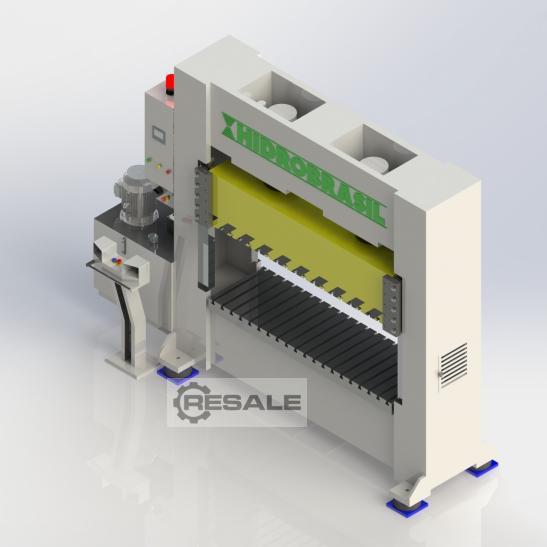

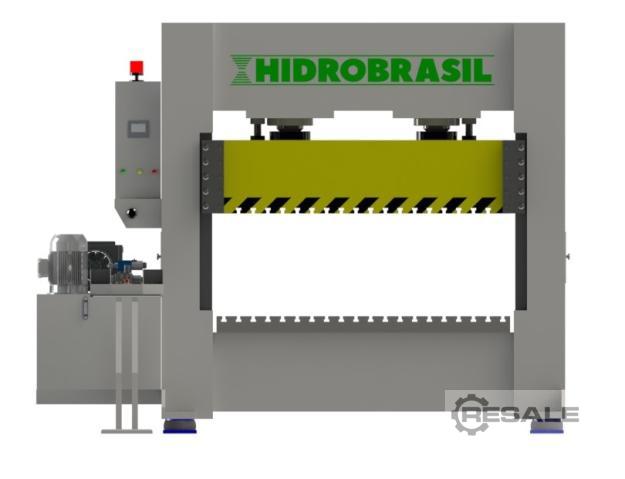

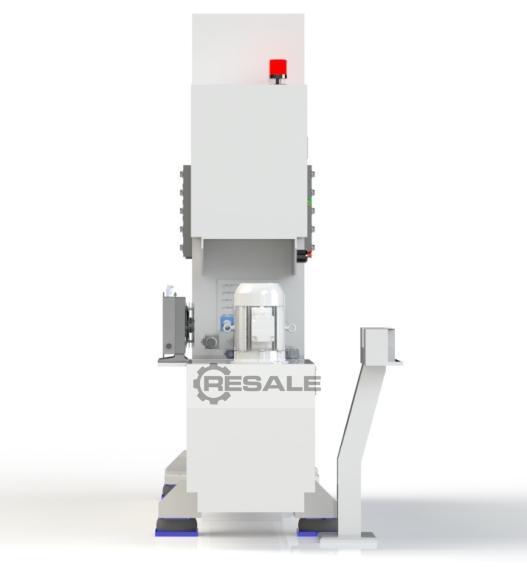

Double column press with 200 T output, Idle speed 45 mm/sec Opening speed 60 mm/sec Starting press speed 9 mm/sec Table size 2000x600mm Plunger size 2000x600mm OIL temperature monitoring Manual lubrication Free positioning of the plunger ( adjustable via adjustable sensors ) PILZ photoelectric sensors 14.1 mm on front and back Circulatory oil cooling Pressure retaining valve 0 to 600 sec. Mechanical plunger protection at the upper breakpoint T-grooves according to DIN, and according to customer requirements Pressure adjustment from 40 T to 200 T (adjustable via rotary knob) Travel limitation optionally via pressure or position Set-up operation, single stroke ( adjustable via key switch ) Two-hand operation Construction, commissioning, instruction against separate calculation Design Press design double column press Therma ...

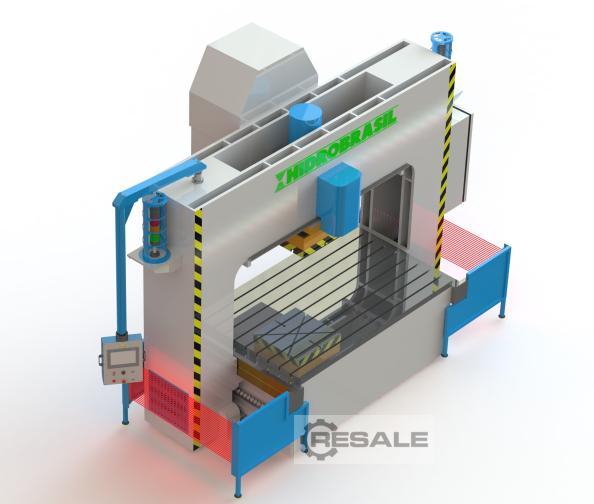

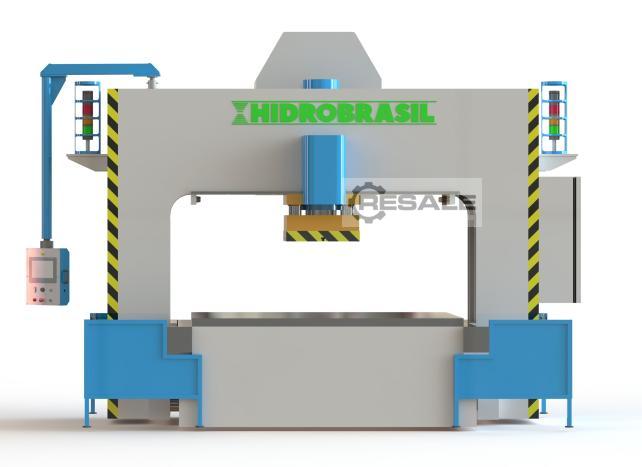

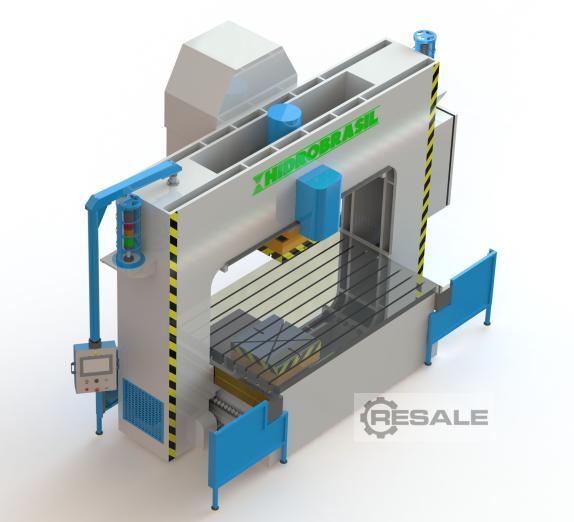

Portal straightening press with 300 T capacity a) No-load and pressing speed up to 17 mm/sec b) Opening speed up to 55 mm/sec c) Table size 2500x1600mm d) Open height 700 mm e) Total size approx. LBH 4500 x 2300 x 3700 mm f) OIL temperature display on the tank g) Lubrication via lubrication nipples h) Table in grid construction, with T grooves according to customer requirements, otherwise 22mm i) Operation on swivel arm, mounted on the bridge j) Pressure setting from 50 T to 300 Tvia MONITOR k) Bridge moves through two geared motors, over racks l) Cylinder moves to the left and right over racks m) Machine body double painted n) Cylinder induction hardened Design Press type PORTALPRESSE Thermally neutral 80 – 120 °C Number of operating pages 3 pages Forces Pressing force max. 3,000 kN Free tearing force max. 500 kN Pressure build-up time Closed tool St ...

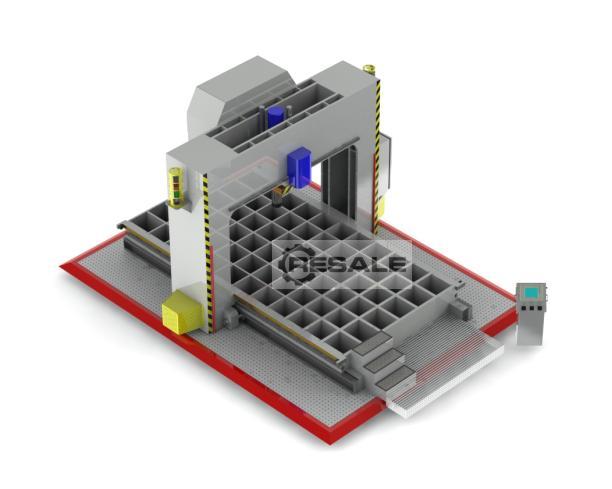

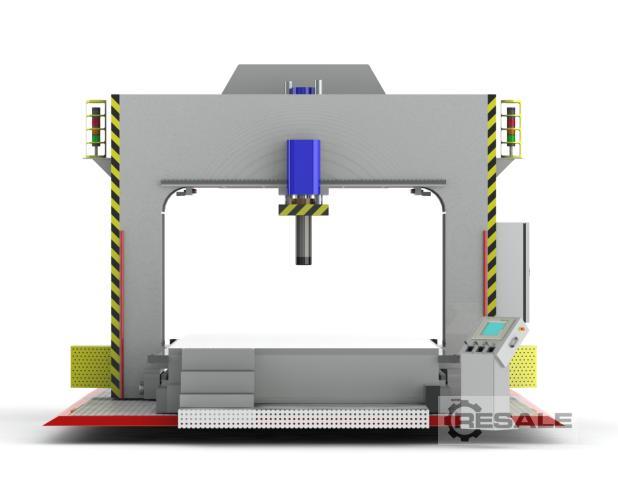

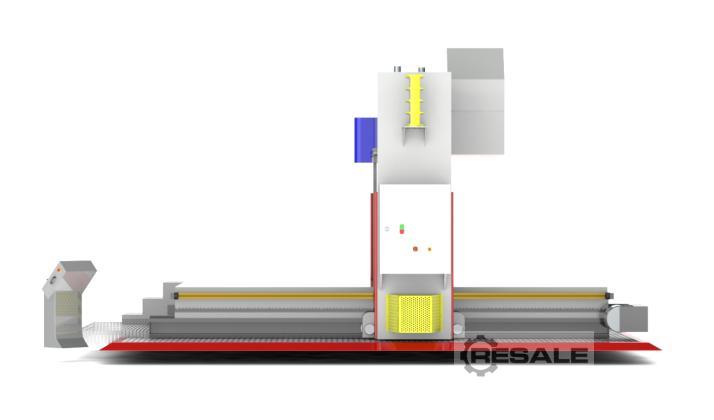

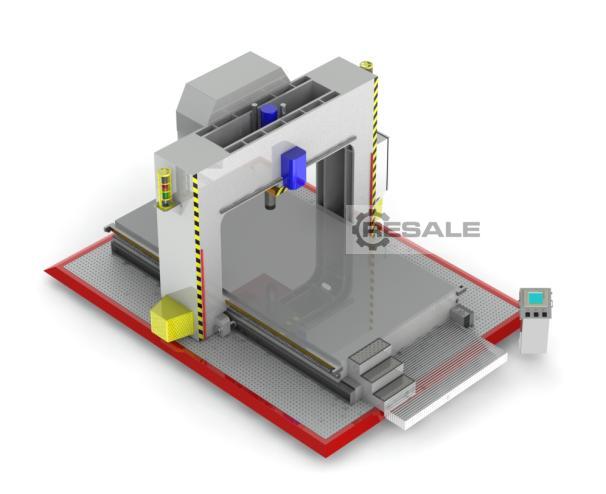

Portal straightening press with 400 T capacity Oil-hydraulic double column press a) No-load and pressing speed up to 17 mm/sec b) Opening speed up to 60 mm/sec c) Table size 6000x3000mm d) Open height 1500 mm e) Total size approx. LBH 6000 x 5000 x 4500 mm f) OIL temperature display on the tank g) Lubrication via lubrication nipples h) table in grid construction, i) Operation on swivel arm, mounted on the bridge j) Pressure setting from 60 T to 400 T via MONITOR k) Bridge moves through two geared motors, over racks l) Cylinder moves to the left and right over racks m) Machine body powder-coated, or double-painted n) T-grooves according to customer requirements o) Cylinder induction hardened PORTAL PRESS Thermally neutral 80 – 120 °C Number of operating pages 3 pages Forces Pressing force max. 4000 kN Free tearing force ...

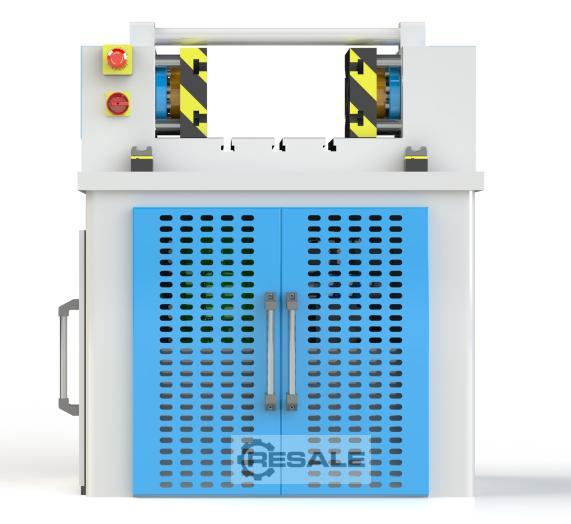

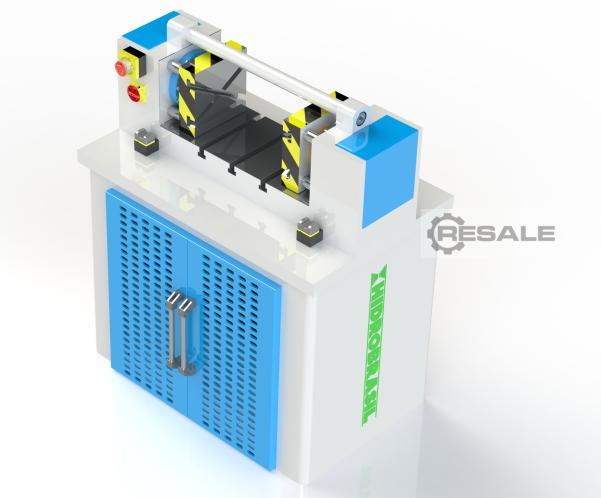

2 x 10 T, adjustable from 1.3 to 10 T Plunger size 250x250mm forward 10 mm second Backwards 25 mm second Travel 100 mm per side, Interior 200 to 400 mm Two-hand operation Motor 1 KW Tank for 60 L hydraulic oil the machine can also be supplied in other sizes and thicknesses.
new
pressure:200 t distance between columns:1900x1200 mm stroke:1000 mm total power requirement:44 kW weight of the machine ca.:32 t dimensions of the machine ca.:4793 x 3365 x 4779 m Hydraulic block:Bosch Rexroth demand for oil:800 l Sliding door front with a closing speed of:300 mm/sec open height:1400 mm Table Height:820 mm Ram Height:1000 mm Lifting capacity:20 t Lowering speed in the empty journey:80 bis 270 mm/sec Press speed:7 bis 25 mm/sec On driving speed:50 bis 170 mm/sec bending stiffness according to standard:0,2 mm Siemens Control System:S7 1200 Monitor:WEG 12 Zoll
new
pressure:160 t distance between columns:700 mm stroke:400 mm Return Capacity:16 t Engine Output:15 kW Travel:400 mm :600 mm Ram plate:700 x 600 mm table height over floor:850 mm Table size:700 x 600 mm speed of forward flow:10 mm/sec Pressing speed:10 mm/sec :10 mm/sec Oil cooling (electric):1,5 kW (max) Oil Tank Capacity:300 l weight of the machine ca.:4,2 t dimensions:950 x 2440 x 2400 m ejector:30 x 30 mm ejector stroke:150 mm pressure of ejector:15 t ejector speed:25 mm/sec no. of ejector pins:1 Stück heating plates :550 x 500 mm :6800 ? :2400 ? :1200 ? :1200 ?
new
pressure:160 t distance between columns:700 mm stroke:400 mm Return Capacity:16 t Engine Output:15 kW Travel:400 mm :550 mm Ram plate:700 x 600 mm table height over floor:900 mm Table size:700 x 600 mm speed of forward flow:50 mm/sec Pressing speed:10 mm/sec :50 mm/sec Oil cooling (electric):1,5 kW (max) Oil Tank Capacity:300 l weight of the machine ca.:4,3 t dimensions:1150 x 2600 x 2400 m ejector:30 x 30 mm ejector stroke:150 mm pressure of ejector:15 t ejector speed:25 mm/sec no. of ejector pins:1 Stück Heating panels (L x B) with 2 measuring sensors diagonally:550 x 500 mm Siemens Control System:S7 1200 Monitor:12 Zoll :2400 ? :1200 ? :1200 ?
new
pressure:200 t table length:2500 mm table width:2000 mm stroke max.:2050 mm dimensions:ca. 9200 x 4700 x 5800 mm draw back pressure:25 t Approx. weight (w/o operational materials):50 t column diameter:210 mm table speed:25 mm/sec table extendable:2000 mm table speed:30 mm/sec table load:15 t power capacity:20 kW work speed:1 - 10 mm/sec. pre-running speed:10 mm/sec :25 mm/sec :10 mm/sec. Oil Tank Capacity:400 l Oil cooling (electric):1,5 kW (max) Podestal height:650 mm Table Height:800 mm Ram Height:850 mm Control System by Siemens:S7 1200 Monitor:WEG 12 Zoll :10200 ? Maintenance Balcony:5000 ? :4.000,-- ? :1.000,-- ? :18000 ? :1.500,-- ? :12000 ? Upper Tool Folding:170 Grad Swivel table:75 Grad Table tiltable:75 Grad Ajecters with 60T in the pestle centre:12000 ? Blessed plate folding by 180 degrees:14000 ?
new
pressure:350 t passage width:3000 mm stroke:900 mm total power requirement:75 kW weight of the machine ca.:60 t dimensions:2660 x 5400 x 5700 mm return capacity:35 t Table dimensions:3610 x 1600 mm :3610 x 1600 mm table height over floor:900 mm pre-running speed:230 mm/sec return speed:170 mm/sec :2000 l max. working heidht:1700 mm pressure speed:21 mm/sec speed rapid traverse:200 mm/sec Oil cooling (electric):3 kW (max) :S7 1500 Monitor:WEG 12 Zoll
new
pressure:100 t distance between columns:1000 mm stroke:500 mm Return Capacity:10 t Engine Output:10 kW :700 mm Ram plate:1000 x 700 mm table height over floor:1000 mm Table size:1000 x 700 mm speed of forward flow:10 mm/sec Pressing speed:10 mm/sec Return Speed:25 mm/sec :10 mm/sec Oil cooling (electric):1,5 kW (max) Oil Tank Capacity:300 l weight of the machine ca.:6 t dimensions:3100 x 1000 x 2900 m
new
pressure:20 t passage width:1500 mm stroke:500 mm total power requirement:3 kW weight of the machine ca.:6,5 t dimensions:ca. 2700 x 1700 x 2700 mm Max Working height:1500 mm return capacity:2 t Table dimensions:1500 x 2100 mm :1500 x 2100 mm table height over floor:900 mm pre-running speed:10 mm/sec pressure speed:10 mm/sec return speed:25 mm/sec speed rapid traverse:10 mm/sec :150 l :AW46 Monitor:(WEG) 7 Zoll
new
pressure:25 t passage width:1000 mm stroke:800 mm Weight of machine approx.:4 t dimensions:ca. 2054 x 2200 x 3126 mm return capacity:2 t :5 kW Max Working height:800 mm :80 mm/sec :10 mm/sec. :80 mm/sec :800 mm pestle plate:400 x 400 mm table plate:1000 x 800 mm table height over floor:850 mm Table cut-out:650 x 150 mm :200 l pestle is stabilized by 4 per ø 50 mm chrome-plated linear guides:Bronzeführungen pestle strength:122 mm Steel plate on spring rolls:600 x 400 x 15 mm :S7 1200 Lightcurtains by Schmersal:1800 mm ab Boden Monitor:SIEMENS 10 Zoll Installation table on the left of the machine body with 10mm thick plage-milled steel plates:1000 x 800, 850 hoch mm
new
pressure:20 t passage width:500 mm stroke:250 mm Weight of machine approx.:2,6 t dimensions:1200 x 1400 x 2900 mm power capacity:11 kW table plate:450 x 400 mm Table cut-out:150 x 150 mm table height over floor:900 mm max. working heidht:500 mm Return Capacity:2 t Approach Speed:300 mm/sec pressure speed:50 mm/sec speed rapid traverse:300 mm/sec Travel:250 mm Oil Tank Capacity:250 l Oil cooling (electric):1,5 kW (max) Monitor:Siemens 10 Zoll
new
pressure:250 t passage width:1800 mm stroke:600 mm total power requirement:22 kW weight of the machine ca.:24 t dimensions:ca. 3390 x 3400 x 3800 mm column diameter:160 mm return capacity:25 t max. working heidht:800 mm Table dimensions:1800 x 1600 mm :2350 x 1600 mm table height over floor:900 mm hydraulic table shift:25 mm/sec table load:5 t pre-running speed:10 mm/sec pressure speed:10 Return Speed:25 mm/sec speed rapid traverse:10 mm/sec :600 l Oil cooling (electric):1,5 kW (max) :46er / 10 my Monitor SIEMENS:10 Zoll
new
pressure:300 t distance between columns:1900 mm stroke:600 mm total power requirement:30 kW weight of the machine ca.:27 t dimensions of the machine ca.:2900 x 3500 x 5400 mm Return Capacity:40 t Main Cylinder:Ø 370 x 350 mm :2 Stk. Ø 80 x 50 mm speed of forward flow:150 mm/sec Return Speed:150 mm/sec Table size:1800 x 1800 x 150 mm Ram plate:1800 x 1800 mm demand for oil:ca. 700 l :max. 900 sec Daylight Opening:900 mm pressure speed:15-8 mm/sec auxiliary motor:5,5 + 2,2 kw auxiliary pump:22 + 5,5 cc Lineal mess stab NOVOTECHNIK:650 mm Table height above ground level (approx.):1000 mm Light sensors front and rear of SICK:900 + 150 mm Monitor:12 Zoll Hydraulic and mechanical protection of the plunger Two-piece auxiliary motors with 2.2 kw Two-piece auxiliary pumps with a power of 6 L/min. Concurrency monitoring (0.5 mm/m²) Fast forward speed adjustable via plc Maximum deflection of the ...
new
pressure:400 t distance between columns:2500 mm stroke:600 mm Table dimensions:2500 x 2000 mm distance table - lower edge of ram:600 mm total power requirement:18 kW speed of forward flow:9 mm/sec Return Speed:19 mm/sec :67 Lt./min. Total weight, approx.:26 t
new
pressure:400 t distance between columns:2300 mm stroke:600 mm total power requirement:37 kW weight of the machine ca.:25 t dimensions of the machine ca.:3300 x 2800 x 5200 mm Main Cylinder:Ø 440 mm :2 Stk. Ø 100 x 60 mm speed of forward flow:200 mm/sec Return Speed:200 mm/sec Table size:2200 x 1400 x 150 mm Ram plate:2200 x 1400 mm demand for oil:ca. 900 l :max. 600 sec Daylight Opening:900 mm pressure speed:15-8 mm/sec auxiliary motor:5,5 + 2,2 kw auxiliary pump:22 + 5,5 cc Lineal mess stab NOVOTECHNIK:650 mm Table height above ground level (approx.):1000 mm Light sensors front and rear of SICK:900 + 150 mm Monitor:12 Zoll Hydraulic and mechanical protection of the plunger Two-piece auxiliary motors with 2.2 kw Two-piece auxiliary pumps with a power of 6 L/min. Concurrency monitoring (0.5 mm/m²) Fast forward speed adjustable via plc Maximum deflection of the table at 0, 07mm/m²
used
pressure:500 t passage width:1100 mm stroke:600 mm Controll:Zweihandbedienung cylinder:1 Stück motor:37 kw work height max.:900 mm Table dimensions:1000 x 1000 mm table height over floor:900 mm pestle plate:1000 x 1000 mm Main cylinder:Ø 500 mm Auxiliary cylinder:2x Ø 120x70 mm Daylight Opening:900 mm :150 Lt./min. Approach Speed:150 mm/sec Pressure Speed:15-3 mm/sec Return Speed:150 mm/sec Heating collectors:max 250 °C Light sensors sick:900 + 150 mm Monitor:12 SIEMENS Zoll Ruler measuring rod for setting the stroke length:NOVOTECHNIK
used
pressure:100 t distance between columns:3000 x 1500 mm stroke:500 mm total power requirement:30 kW weight of the machine ca.:16 t dimensions of the machine ca.:4000 x 2500 x 4500 m Master cylinder:1 Stück main cylinder:135 x 90 Ø mm Auxiliary cylinder:2 Stück Auxiliary cylinder:90 x 50 Ø mm Table size:3000 x 1500 (mit T-Nuten) mm Ram plate:3000 x 1500 (mit T-Nuten & Federschweisungen) mm work height max.:900 mm pre-running speed:125 mm/sec return speed:100 mm/sec Speed printing phase:40 - 8 mm/sek. Hydraulic block:REXROTH demand for oil:500 l pressure control:über PLC Controll:Zweihandbedienung Daylight Opening:600 mm fied interior wide:3100 mm auxiliary motor:5,5 + 2,2 kw auxiliary pump:22 + 5,5 cc pre-run valve:2 Stk pressure stop valve:max. 200 min Lineal mess stab NOVOTECHNIK:550 mm Table parallelity:0,05 mm / m² Guide rails for parallelism :verschraubt Light sensors front an ...
new
pressure:500 t distance between columns:1500 x 800 mm stroke:800 mm total power requirement:45 kW weight of the machine ca.:25 t dimensions of the machine ca.:2200 x 2200 x 4800 m Master cylinder:1 Stück main cylinder:500 Ø mm Auxiliary cylinder:2 Stück Auxiliary cylinder:120 x 80 Ø mm Table size:1500 x 1400 (mit T-Nuten) mm work height max.:950 mm pre-running speed:190 mm/sec return speed:200 mm/sec Speed printing phase:20 - 8 mm/sek. Hydraulic block:REXROTH Oil Tank Capacity:1500 l demand for oil:1300 l pressure control:über PLC Daylight Opening:1200 mm fied interior wide:1500 x 800 mm auxiliary motor:5,5 + 2,2 kw auxiliary pump:22 + 5,5 cc pre-run valve:NG pressure stop valve:max. 600 sec Lineal mess stab NOVOTECHNIK:850 mm Table parallelity:0,05 mm / m² column diameter:200 Ø / mm automatic fat lubrication:über Bildschirm einstellbar Guide rails for parallelism :4 fach Light ...
new
pressure:100 t passage width:500 mm stroke:400 mm Approx. weight (w/o operational materials):5,5 t Measurements L x W x H:ca. 1300 x 2800 x 2900 mm Table size:800 x 500 mit T-Nuten mm Table height above ground level:850 mm Oil Tank Capacity:140 l main cylinder:220 Ø mm Auxiliary cylinder:2 Stk - 50 x 30 Ø mm Auxiliary guidance:2 Stk - 50 Ø stk. Engine Output:11 kW :26 Lt./min. Approach Speed:110 mm/sec Pressure Speed:120 mm/sec Return Speed:12 - 4 mm/sec Ram plate:800 x 500 mit T-Nuten mm pre-run valve:1 Stk Siemens Control System:S7 1200 Monitor:Siemens 7 Zoll Light sensors sick:700 + 150 mm Special feature: When operating at 260bar the machine reaches a pressure level of 70 tons.
new
pressure:20 t passage width:600 mm stroke:400 mm Weight of machine approx.:2,8 t dimensions:1960 x 900 x 2500 mm power capacity:5,5 kW table plate:600x600 mm pestle plate:500x500 mm daylight:400 mm table height over floor:850 mm :1000-20000 kg :400 mm Approach Speed:max. 100 mm/sec Pressure Speed:1-15 mm/sec :100 mm/sec :1-15 mm :S7 1200 Oil Tank Capacity:250 l
used
pressure:100 t stroke:1000 mm table surface area:1045 x 1045 mm table extendable:800 mm table speed:50 mm/sec dimensions:ca. 2550 x 2850 x 3620 mm height over floor:600 mm diameter of piston:76 mm ram diameter:110 mm ram hole:40 H7 Cylinder:300 mm total power requirement:5,5 kW pump capacity:24,9 Lt./min Pressure power:250 bar :200 l daylight opening:1600 mm daylight:1200 mm weight of the machine ca.:6,6 t hollow:180 mm hollow:400 mm :1000 kg :1 - 10 mm/sec work stroke:3 mm/sec :1 - 25 mm/sec :33 mm/sec
