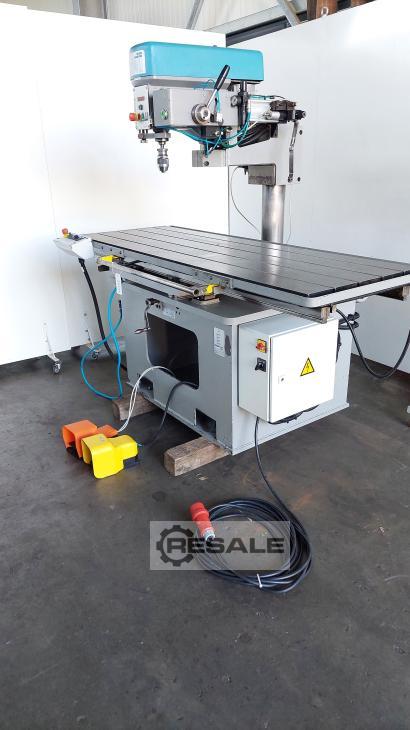

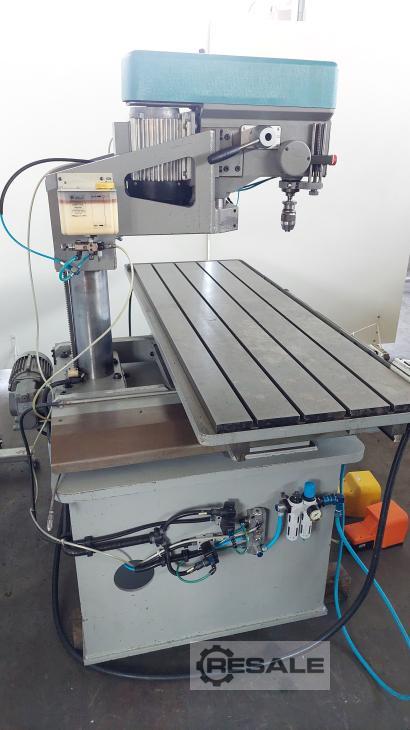

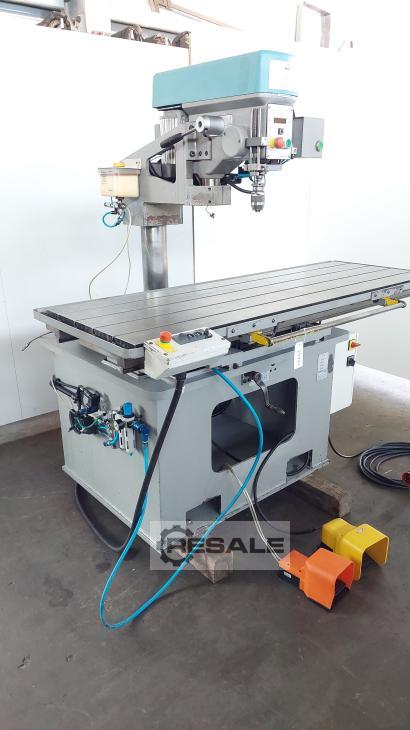

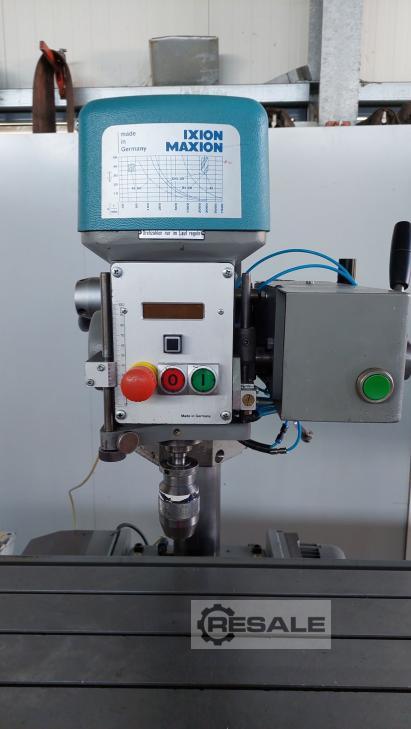

Offer 24331 Specifications: - Table surface 1700 x 550 mm - Manual travels X / Y 1300 x 500 mm - Drill Fabr. MAXION , Type: BT 18 STP - Drilling capacity up to 18 mm - Tapping device up to M 16 - Drilling spindle holder MK 2 - Drilling spindle stroke with drilling depth fine adjustment 76 mm - PV 12 pneumatic feed unit - Projection 670 mm - Spindle speeds 100 - 1800 rpm - 200 - 3600 rpm -Mot. Drilling unit stroke -Mot. Table clamping x + y - Minimum amounts of lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg
Offer 24435 Specifications: - Table surface 1700 x 550 mm - Manual travels X / Y 1300 x 500 mm - Drill Fabr. MAXION , Type: BT 15 GL - Drilling capacity up to 18 mm - Tapping device up to M 10 - Drilling spindle holder MK 2 - Drilling spindle stroke with drilling depth fine adjustment 90 mm - PV 12 pneumatic feed unit - Projection 670 mm - 4 spindle speeds 320 + 560 + 1000 + 1600 rpm -Mot. Drilling unit stroke - Table clamping x + y - Minimum amounts of lubrication - Pneumatic connection 6 bar - Connection 400 V - Space requirement approx. W 1750 x H 1600 x D 1000 mm - Weight approx. 1200 kg - various guide cartridges
