Key data: 1650 mm, 850 mm, 790 mm

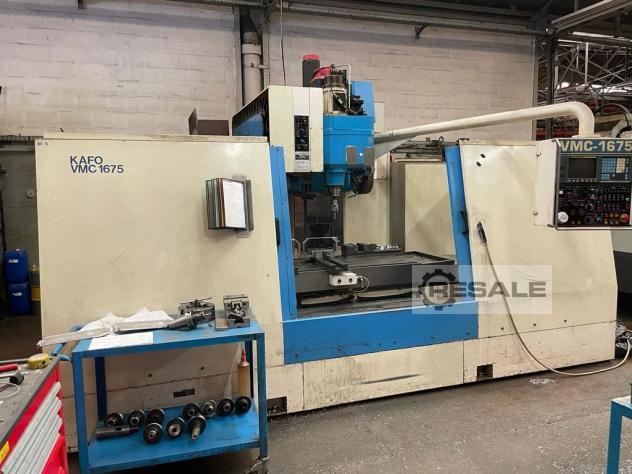

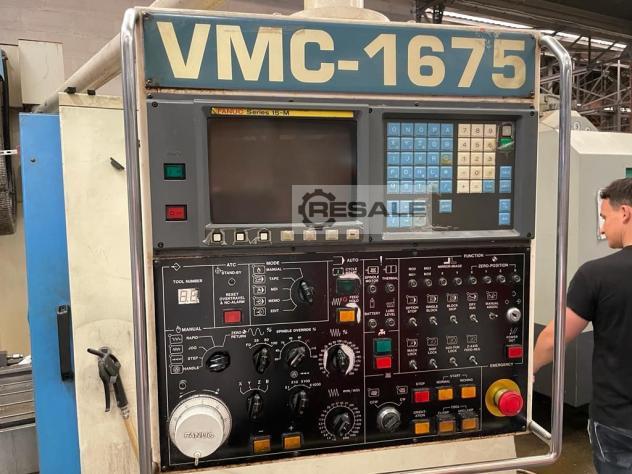

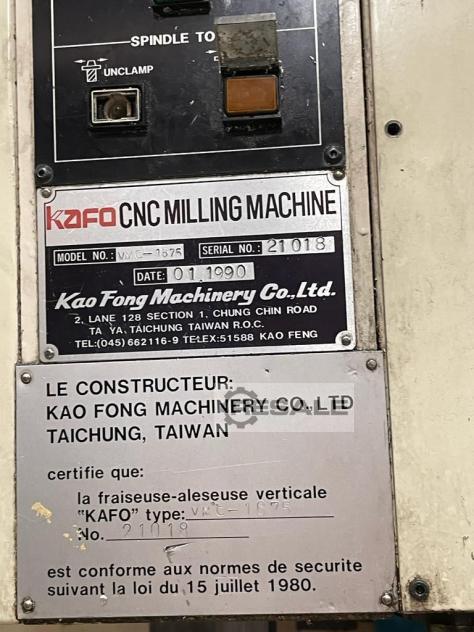

Machine Details Stock-No. 1105-03958 Type of machine Machining Center - Vertical Make kafo Type WMC 1675 Year of manufacture 1990 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Taiwan Delivery time CALL ME Freight basis EX WORK Price Technical details x-travel 1650 mm y-travel 850 mm Z-Travel 790 mm Dist. Milling Spindle - Table Surface 150 - 760 mm Table dimensions 1900 X 850 mm table load capacity 1500 kg Spindle motor 15 kW spindle speed: 6000 2 STEEP spindle taper BT 40 Rapid traverse 20 m/min tool change unit 24 places Weight of tools max. 14 kg CNC Controller: Fanuc 15M total power requirement 30 KVA weight of the machine approx. 14 t Additional information - In Excellent condition - With machien documents - Rigid taping -fanuc oM
Machine Details Stock-No. 1105-03900 Type of machine Machining Center - Vertical Make KAFO Type Vmc 106 Year of manufacture 2006 Type of control CNC Storage location HAGUENAU FRANCE Country of origin Taiwan Delivery time immediately Freight basis ex stock HAGUENAU FRANCE Technical details X-Travel 1020 mm Y-Travel 600 mm Z-Travel 635 mm CNC-control FANUC - IO table-size 1250 X 600 mm spindle taper ISO 40 spindle turning speed range 10000 rpm spindle drive motor 11 kW tool change unit 24 max. table load 1000 kg throat 510 mm voltage 380 V Rapid speed 12 m/min feed range 1 - 5000 mm/min Weight of the machine approx. 4.6 t dimensions of the machine approx. 3.2 x 2.70 x 2.70 m Accessories instruction book Additional information control: FANUC - O I MC - coolant equipment CHIP CONCOYER 10000 RPM
This 5-axis KAFO KFO 620 5AX was manufactured in 2018, featuring a robust Heidenhain iTNC 530 control system. It boasts a spindle speed up to 12,000 rpm, a rotary table diameter of 650 mm, and can handle workpiece weights up to 300 kg. Equipped with a chip conveyor and a tool magazine with 24 slots, this vertical machining centre is ideal for complex machining tasks. If you are looking to get high-quality milling capabilities consider the KAFO KFO 620 5AX machine we have for sale. Contact us for more information.
